3.10 Operating Elements
The ED 100 and ED 250 drives are electromechanical
drives. Automatic opening and closing is possible only if the
motor gear unit and the control unit work together properly.
For this, the control unit must recognize particular door
parameters to achieve the best possible behavior.
The control unit is equipped with a user interface with
an information display. All of the settings specified in the
parameter list can be made using these operating elements.
3.11 Information Display
The information display consists of a two-digit display. The
display is configured during commissioning such that the
numbers and digits are shown correctly irrespective of the
direction of installation.

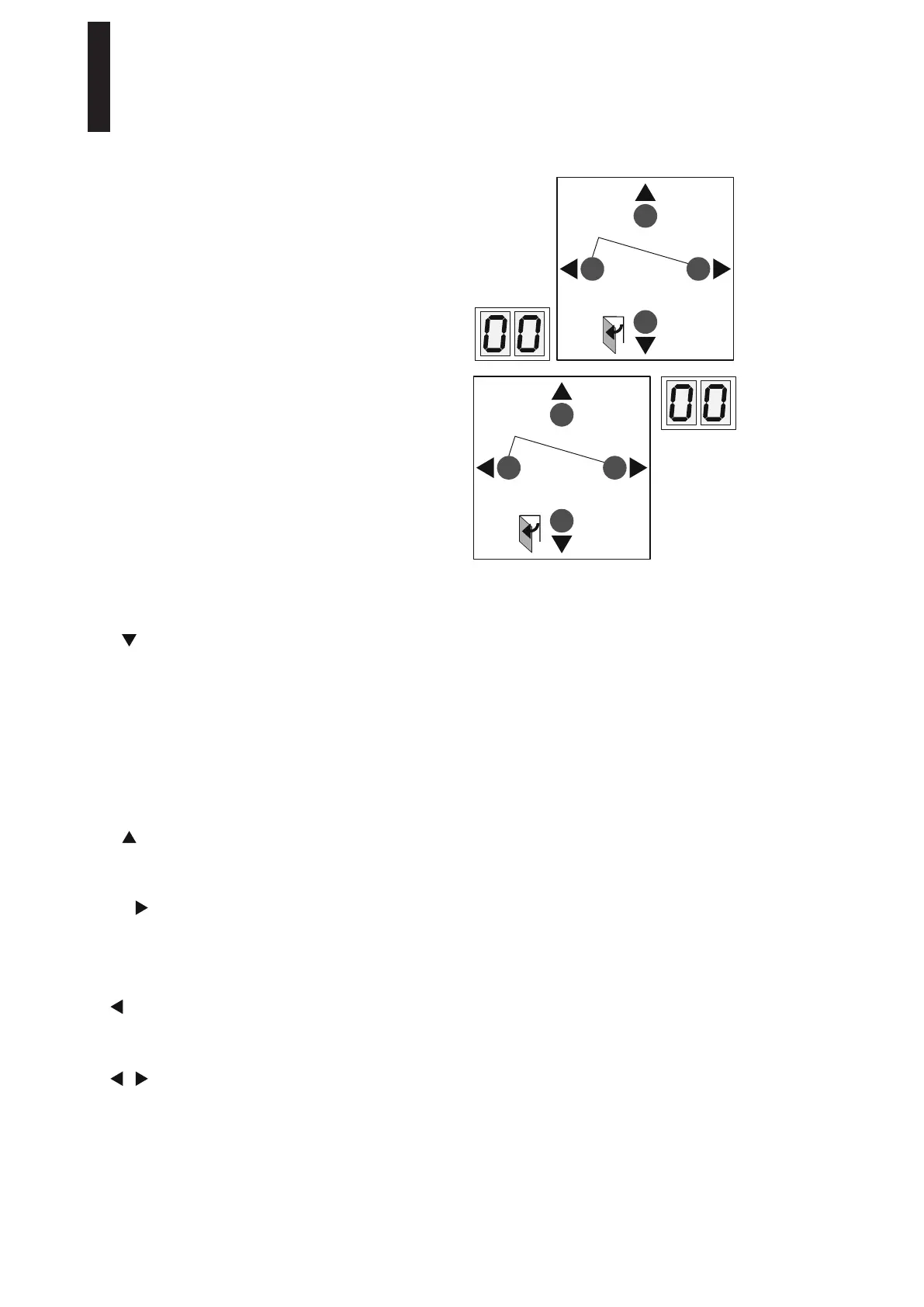

3.12 User Interface
Four buttons are available to input data. The function of the
buttons is also adapted to the direction of installation during
commissioning. Consequently, the pushbuttons always have
the same functions according to their arrangement. The
button legend can be removed and rotated.
By pressing the buttons the following functions can be performed:
Down button
• Adjust the direction of installation following a mains reset
• Scroll through parameters and error messages
• Reduce the parameter value
• Opening pulse – Press button for less than 3 seconds
• Learning cycle – Press button for more than 3 seconds (program switch off)
• Reset with factory setting (Fact Setup) – Press button for more than 8 seconds (program switch off)
(see SL parameter)
Up button
• Scroll through parameters and error messages
• Increase the parameter value
Right button
• Call up the parameter menu – Press button for more than 3 seconds
• Change the selected parameters
• Save the changed value
Left button
• Cancel the parameter change process
• Exit the parameter menu
Left and right button simultaneously
• Acknowledge errors – Press button for less than 3 seconds
• Reset – Press button for more than 3 seconds
<3s Quit
>3s Reset
<3s
>3s
LEARN
>8s
Fact-Setup
>3s
PRG
DIN L
<3sQuit
>3s Reset
<3s
>3s
LEARN
>8s
Fact-Setup
>3s
PRG
DIN R
ED 100, ED 250
—
6 DORMA

Dorma ED 100 Specifications

General

Adjustable Closing Speed	Yes
Latching Speed	Adjustable
Type	Electromechanical
Power Supply	230 V AC, 50 Hz
Fire Rated	Yes
Backcheck	Adjustable
Delayed Action	Adjustable
Hold-Open Function	Yes
Finish	Silver
