Dorma ED 250 - Page 11

45
150
106
45
120 12095
451
155
B
D
A
C
120100
32
31
63
4
Maximum lintel depth of 60 mm
Ø 6.6
Upper edge of door
Upper edge of door
Space for cable inlet
Axle extension ED 100 ED 250 A B C D
Standard (9 mm)
31 mm 61 mm 22 mm 52 mm
20 mm
51 mm 81 mm 42 mm 72 mm
30 mm
61 mm 91 mm 52 mm 82 mm
60 mm
91 mm 121 mm 82 mm 112 mm
90 mm ---
121 mm 151 mm 112 mm 142 mm

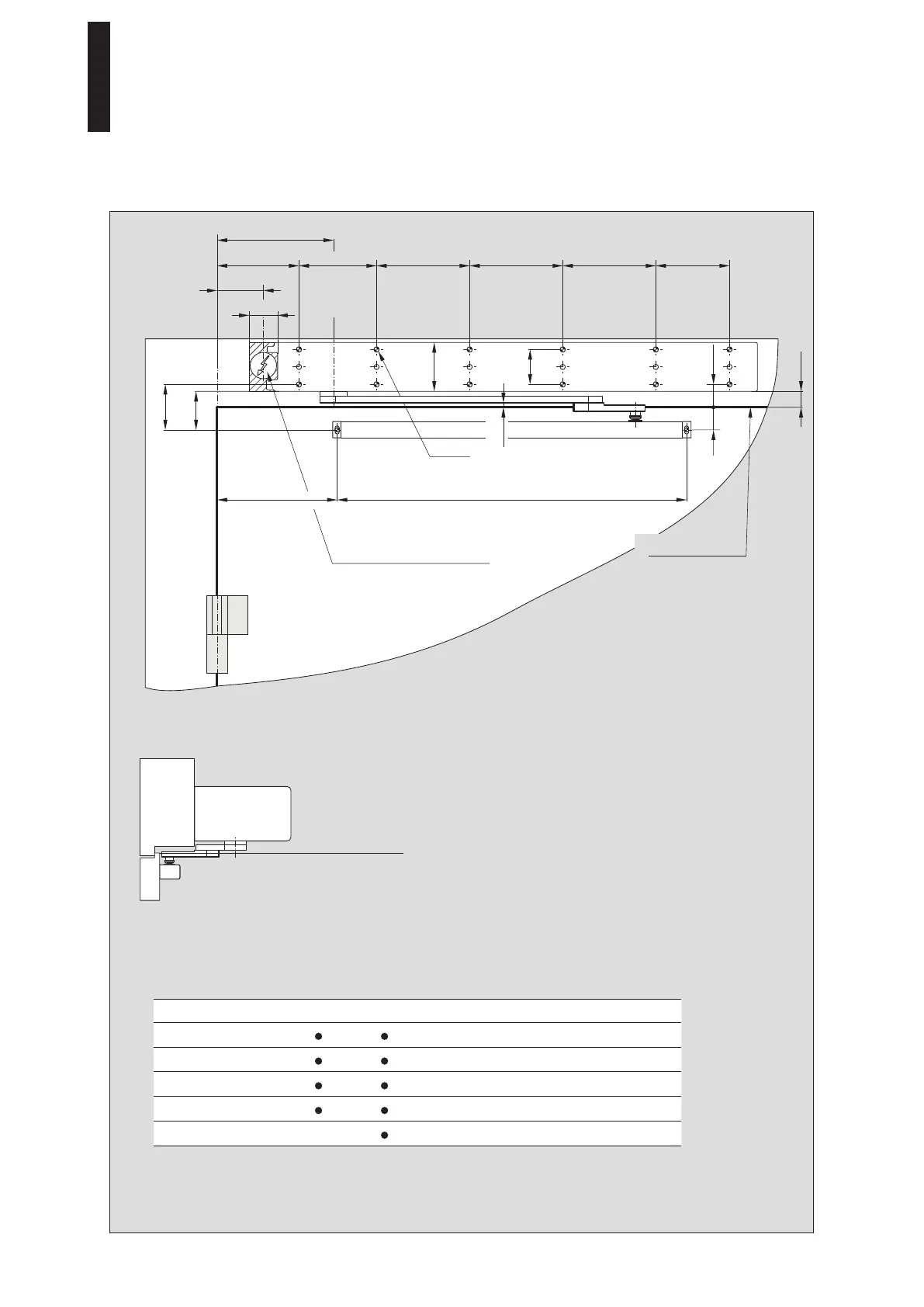

Installation on hinge side, pull version of slide channel CPD, with 12.5 mm pivot pin
 If using the CPD lever, around 30 mm must be
deducted from the real lintel depth when setting
the parameter.
ED 100, ED 250
—
11DORMA
