BUSHING
END CAP
END CAP
OVERSIZE SOCKET
AS RECEIVER
KNOCKOUT
1/2" DIA. PUNCH
Feed accessory wires through bushing in end cap. Connect wires as required to external connector.
Note: Accessory wires must be isolated from 120V incoming power

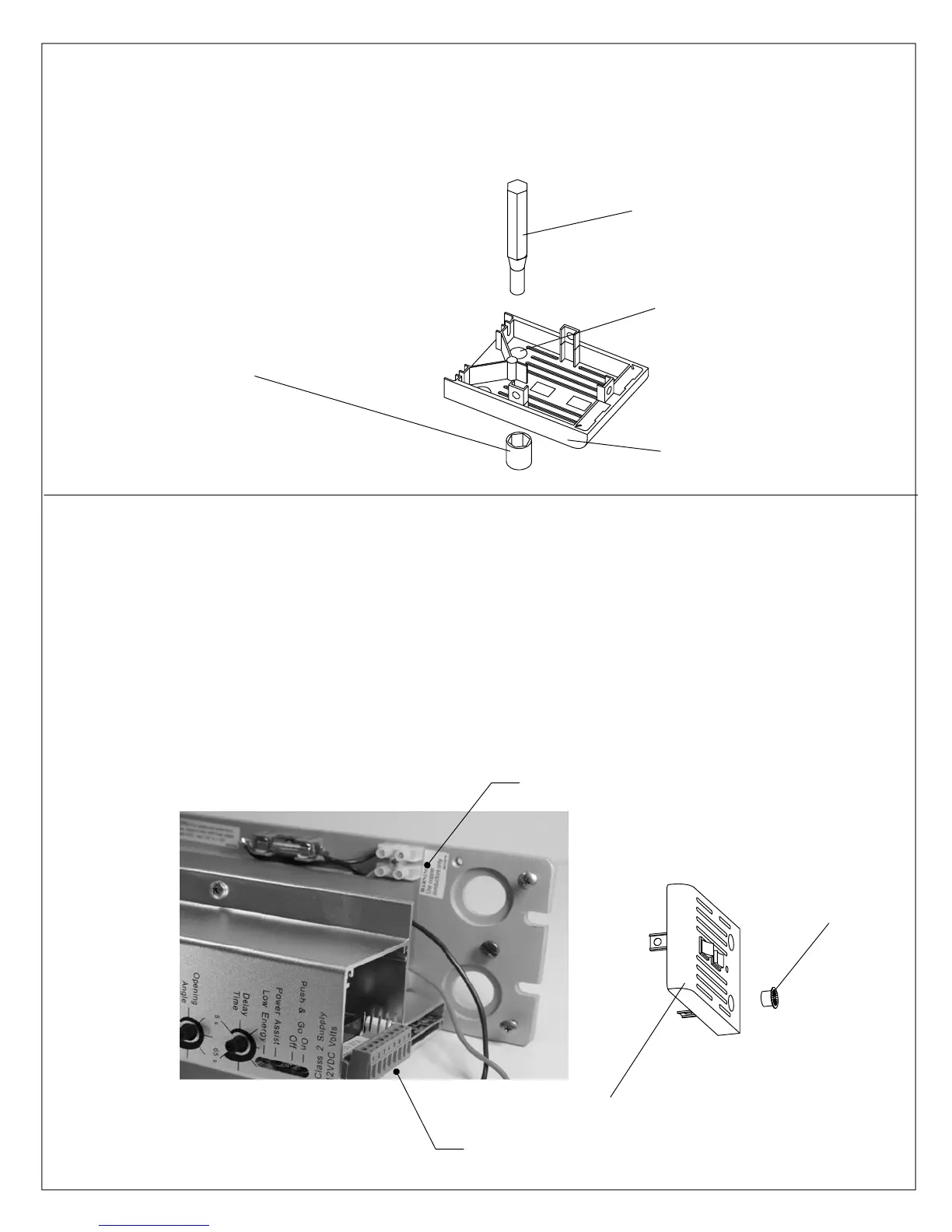

ACCESSORY WIRE ROUTING
Remove knockout with a 1/2" diameter punch and hammer. Back side of end cap must be
supported to prevent damage to the end cap.
08102710 05/07ED800-19
Insert bushing into end cap.
EXTERNAL CONNECTOR FOR ACCESSORY WIRES
120V INCOMING FEED WIRED HERE
