STRIKE INTERFACE
The ED 800 can coordinate the release of an electric strike with the operation of the door. Upon
activation of the unit, a signal is immediately sent to operate the strike. The signal will last until
the door is open approximately 10°. Door activation may be delayed for 1/2 second to allow the
strike to operate (See page 16). The strike will only be signalled when the door is in the closed
position to eliminate unnecessary operation.
A 12 Volt DC fail secure electric strike or fail safe electric strike may be powered directly
by the ED 800. The maximum power draw is 500 milliamps.
ED800-24 08102710 05/07
For 24 Volt AC, 24 Volt DC and 12 Volt AC fail secure electric strike, magnetic lock or fail safe
electric strike , the ED 800 provides a switch to control the strike. A separate power supply is
required for these applications.
The maximum switch rating is 48 Volts AC or DC at 1amp.
LATCH RETRACTION
An electric latch retraction function can be coordinated with the ED 800. The ED 800 provides a
normally open set of contacts which close momentarily to act as a switch to signal the power
supply for the latch retraction. When activated, the contacts close immediately and stay closed
until the door is open approximately 10° to provide the signal to the power supply. Door
activation may be delayed by 1/2 second to allow the latch to retract (See page 16).
A separate
power supply is required for the latch retraction function.

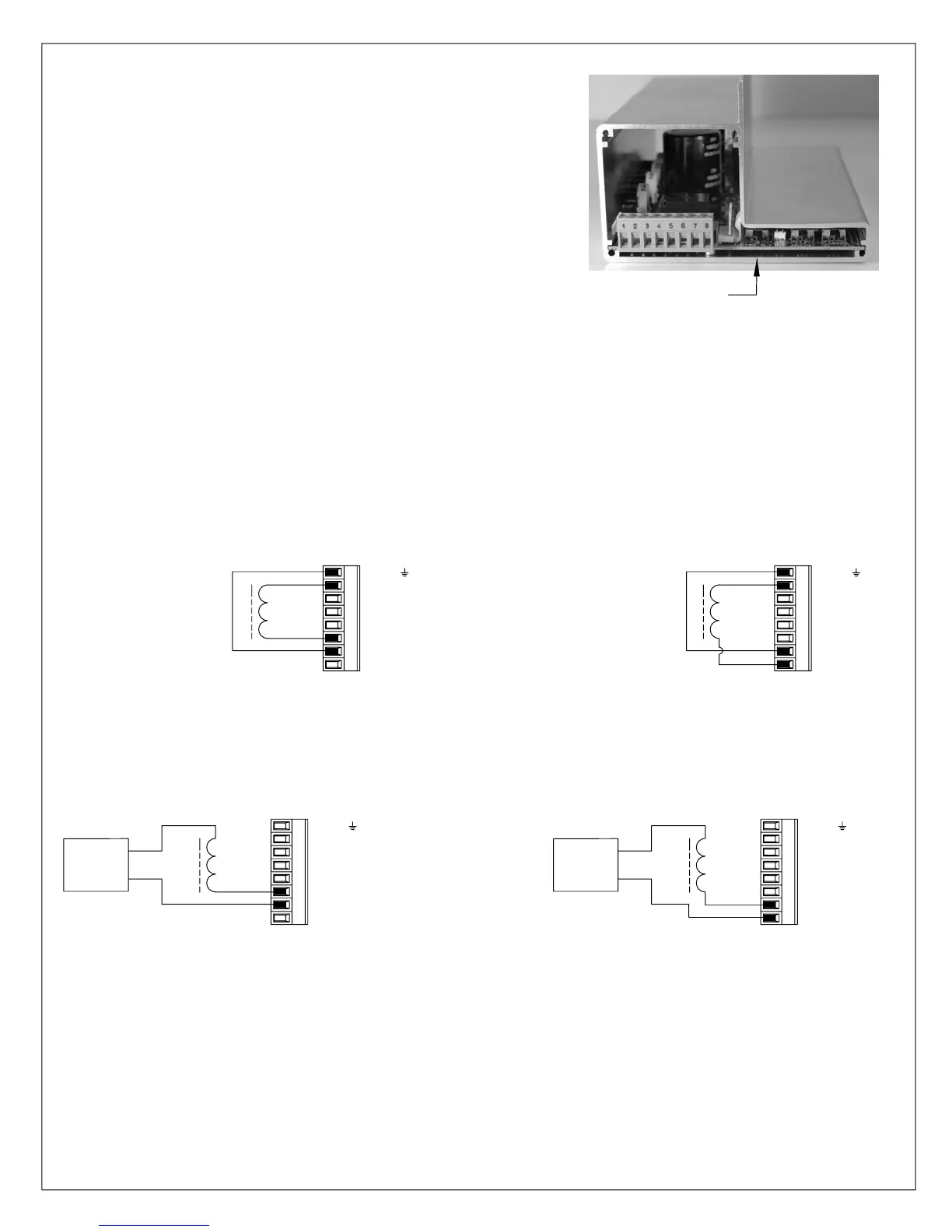

ED800
FAIL SECURE STRIKE
12 VDC STRIKE
ED800
POWER
SUPPLY
STRIKE
12 VAC, 24 VAC, OR 24 VDC STRIKES/MAG. LOCKS
BUSY SWING (SAFETY)
OPEN TRIGGER
1
VESTIBULE
C
467
NC
8
532
+12VDC
GROUND
NO
BUSY SWING (SAFETY)
OPEN TRIGGER
1
VESTIBULE
C
467
NC
8
532
+12VDC
GROUND
NO
FAIL SAFE
12 VDC STRIKE
ED800
7
8
654321
BUSY SWING (SAFETY)
OPEN TRIGGER
C
NC
VESTIBULE
NO
+12VDC
GROUND
FAIL SECURE FAIL SAFE
POWER
SUPPLY
MAG. LOCK
OR STRIKE
GROUND
VESTIBULE
OPEN TRIGGER
+12VDC
BUSY SWING (SAFETY)
2
8
NC
76
NO
C
5431
ED800
FAIL SECURE
FAIL SAFE
LATCH DELAY SWITCH
Toggle switch must be placed in the "ON" position (to the right)
to allow ED800 to delay for 1/2 second
before opening door when Electric Latch,
Strike or Magnetic Locks are interfaced.
LATCH DELAY OFF/ON SWITCH
