Dormakaba ED100 Owner's Manual

17
ED50/ED100/ED250 09-2021DL4616-011
dormakaba ED50/ED100/ED250 Owner's Manual
Overhead concealed header
Chapter 7

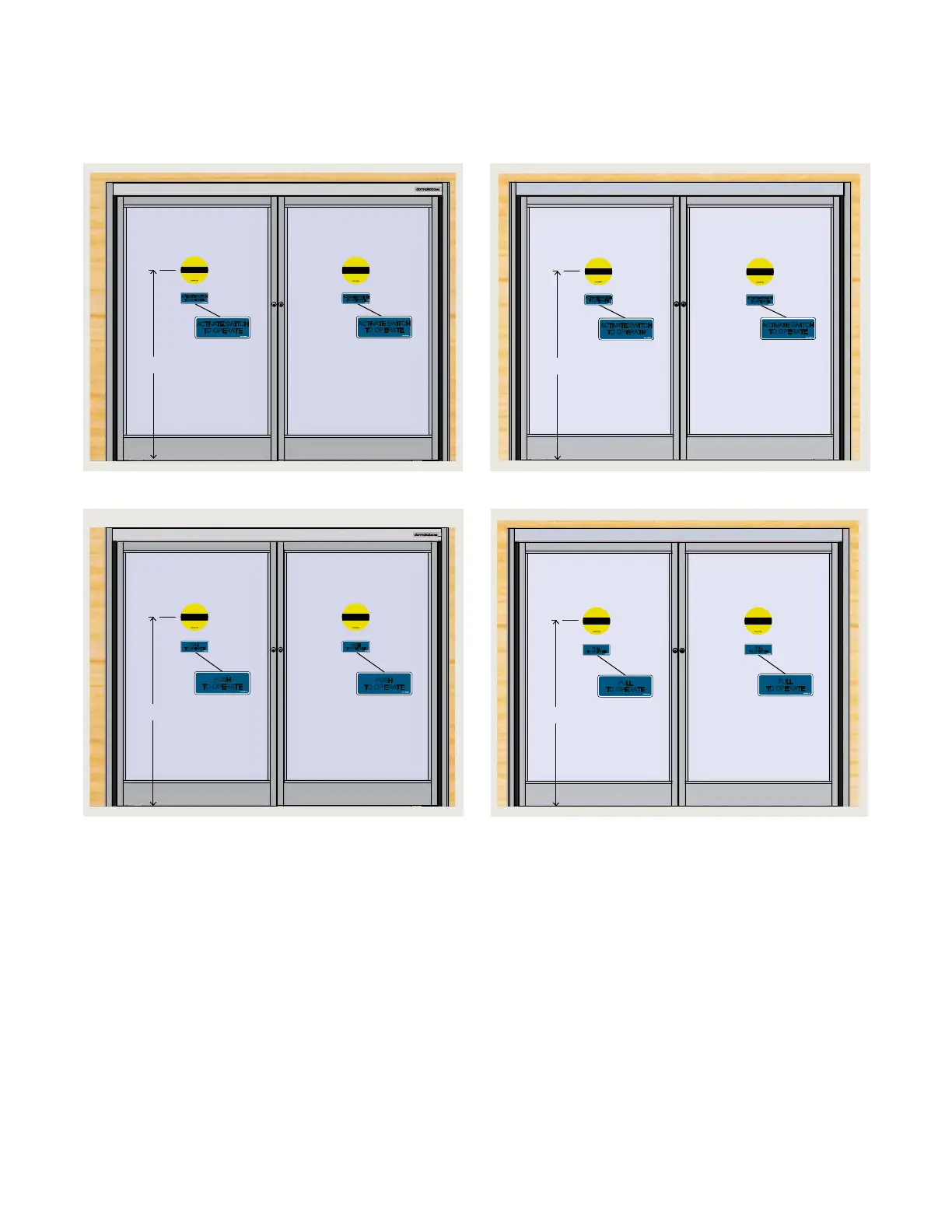

. Door signage, low energy power operated double swing doors,
initiation of door operation (ANSI/BHMA .)
Fig. 7.6.1 Knowing act device, approach side Fig. 7.6.3 Knowing act device, swing side
Fig. 7.6.4 Push/Pull, Pull
Fig. 7.6.2 Push/Pull, Push
50” ± 12”
CAUTION
DOOR
AUTOMATIC
DD0586-010
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
50” ± 12”
CAUTION
DOOR
AUTOMATIC
DD0586-010
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
DD0758-010
ACTIVATE SWITC H
TO OPERATE
DD0758-010
50” ± 12”
CAUTION
DOOR
AUTOMATIC
DD0586-010
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD0762-010
PUSH
TO OPERATE
DD0762-010
PUSH
TO OPERATE
DD0762-010
PUSH
TO OPERATE
DD0762-010
PUSH
TO OPERATE
50” ± 12”
CAUTION
DOOR
AUTOMATIC
DD0586-010
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD0762-020
PULL
TO OPERATE
DD0762-020
PULL
TO OPERATE
DD0762-020
PULL
TO OPERATE
DD0762-020
PULL
TO OPERATE
