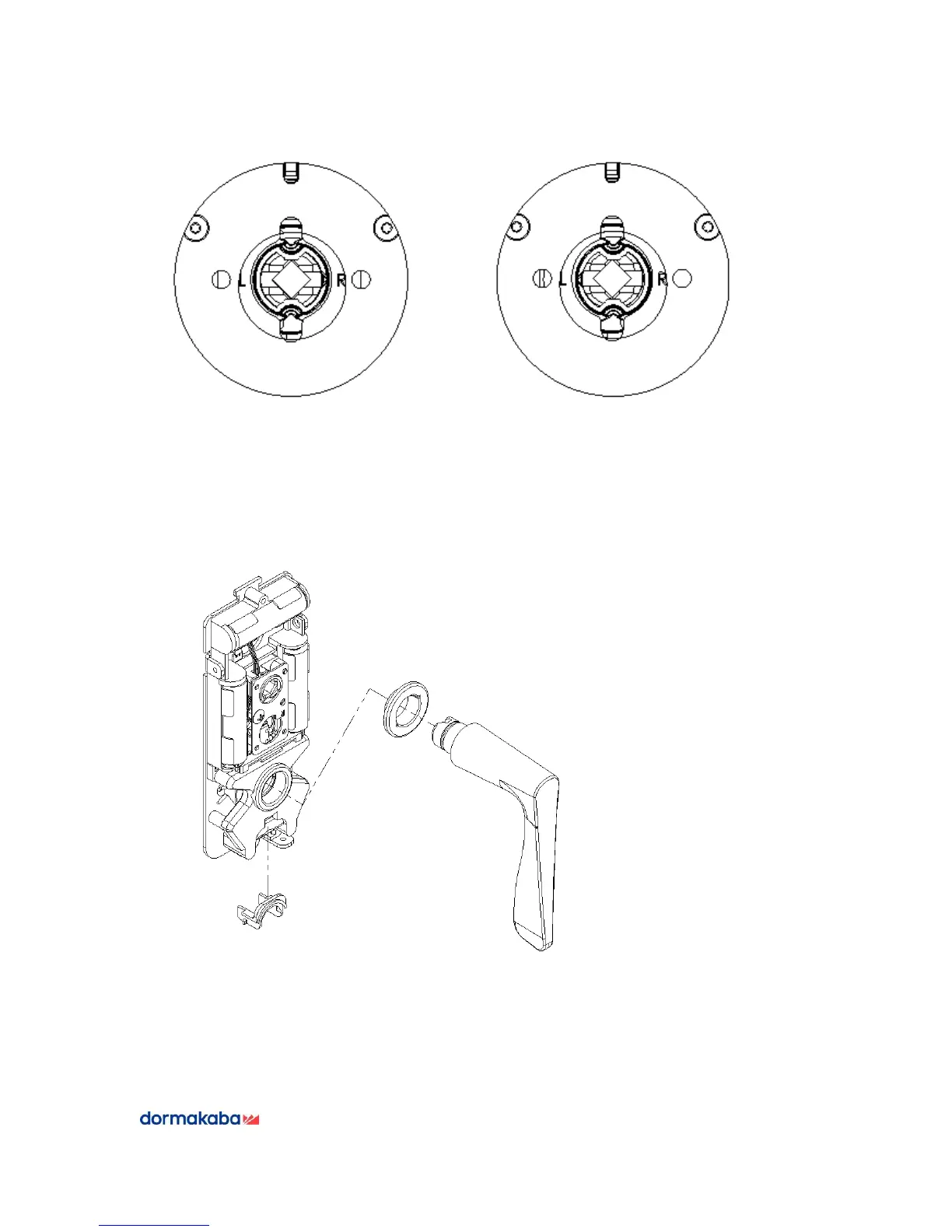

• Install the bushing (item 7)
• Install the lever vertically as shown (pointing down), making sure it is snug.
• Rotate the lever handle to horizontal position corresponding to selected
handing.
• Push up the spring holder and install the snap holder for spring holder (item
8) to lock and prevent lever from disengaging
RH as arrow pointing R
LH as arrow pointing L

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
