Dormakaba Saffire LX Installation Guide

Page 7 of 28 Saffire LX
6. Install the lock spindle
The spindle must be installed and properly secured in the front lock housing
assembly. The spindle is used to connect the handle to operate the opening and
closing door mechanism.
Prior to installing the spindle, you must first adjust the required positioning of the
hub receiving the spindle. There are 2 modes, Left Hand (LH) and Right Hand (RH)
according door handing.
• Turn the hub for correct door handing by turning clockwise for right and
counter clockwise for left.
•

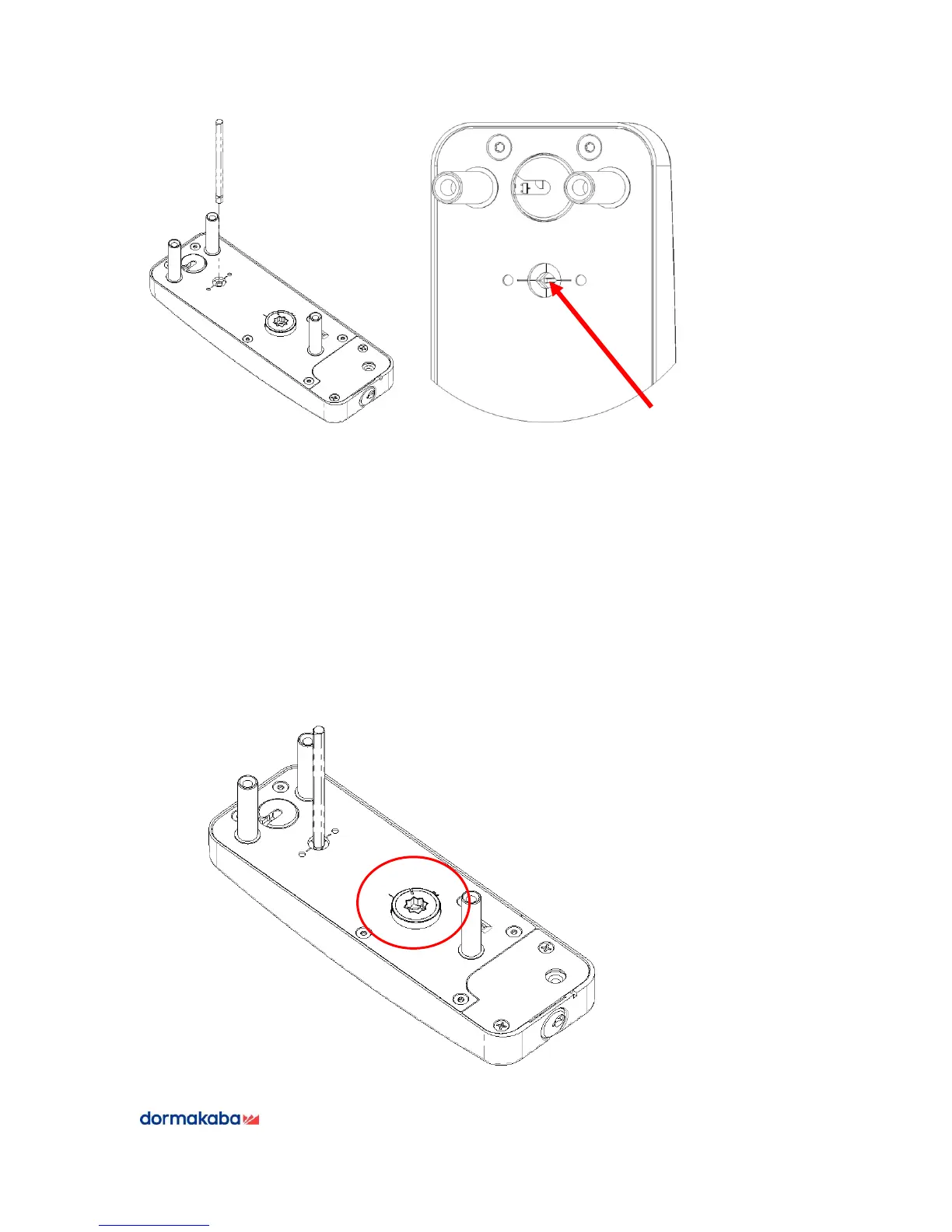

Lines to be aligned

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
