Dormakaba Saffire LX Installation Guide

Page 6 of 28 Saffire LX

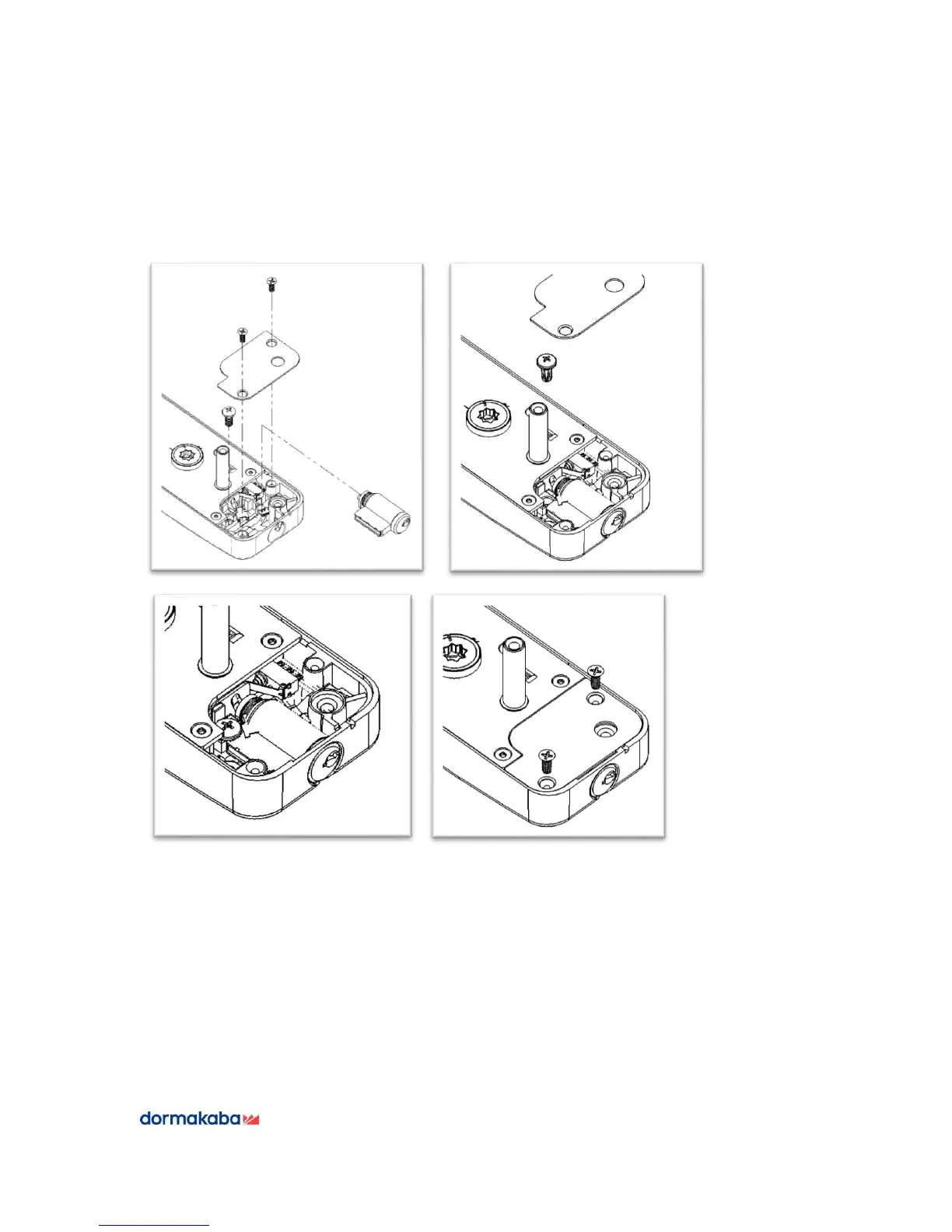

4. Install key cylinder (optional)
• Insert the cylinder core in the key override housing.
• Secure the cylinder core using screw (item 11).
• Secure the access plate key cylinder (item 9) over the key override housing.
• Secure the access plate using two screws (item 10).
5. Install thumb turn spindle (optional)
• Verify that the line markers for the thumb turn hole are aligned. If the holes
are misaligned, use the flat screwdriver to correct the position.
• Insert the thumb turn spindle (item 2) into the thumb turn hole. Press firmly
to ensure the spindle clicks in place.
• Rotate the spindle to ensure that the part remains in place.

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
