Dormakaba Saffire LX Installation Guide

Page 12 of 28 Saffire LX
8. Installing the locking mechanism on the door
Before starting the installation of the lock on the door, please make sure the door
has been prepared properly with proper holes for the lock. Refer to corresponding
drilling template for your lock model. Drilling templates are available in the center
section of this installation instructions and on the dormakaba website.

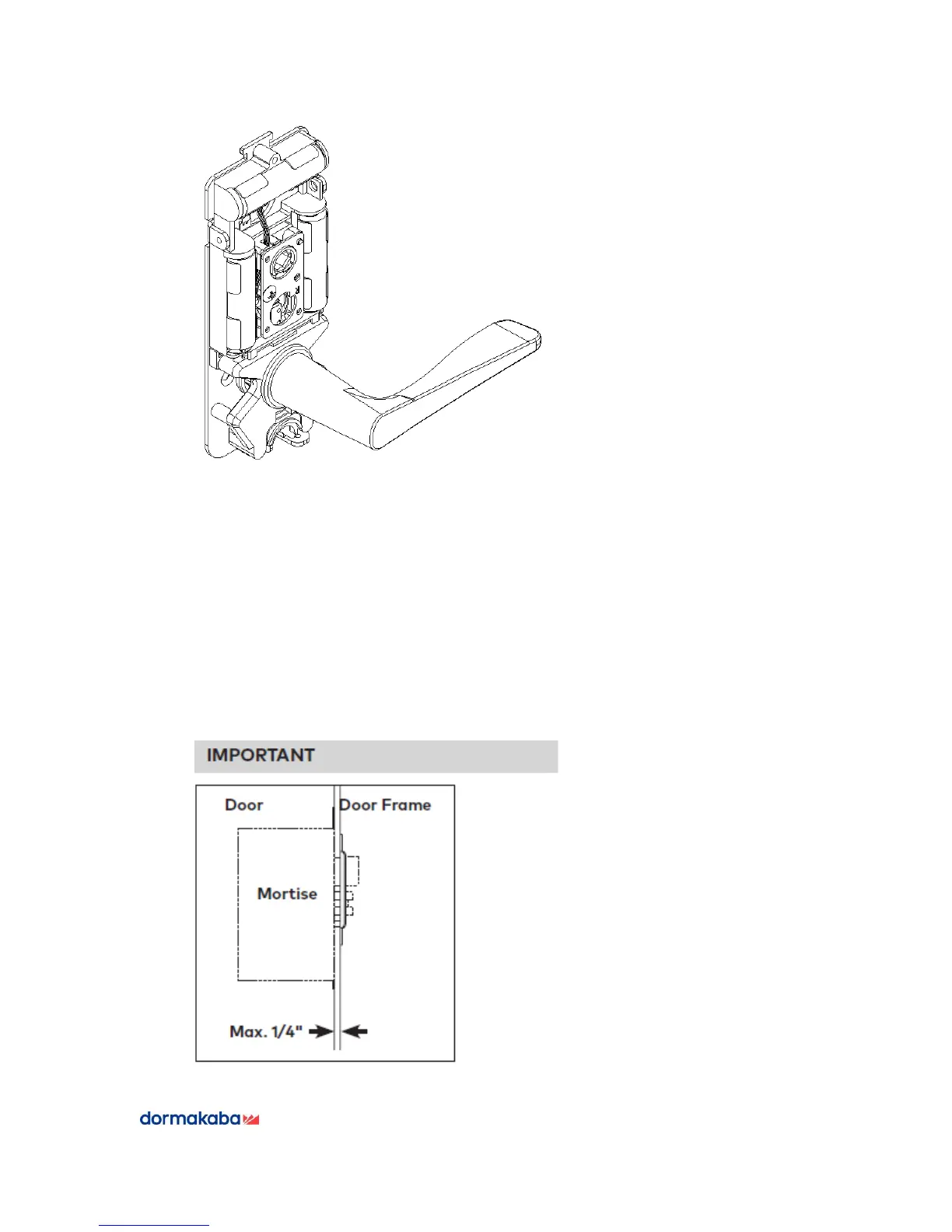

8.1. Installing the mortise ASM (if lock equipped)
Before installing the mortise, verify gap between the door and the frame. The gap
between the mortise face plate and the strike must not exceed ¼” for proper and
secure operation of the mortise.

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
