Dormakaba Saffire LX Installation Guide

Page 18 of 28 Saffire LX

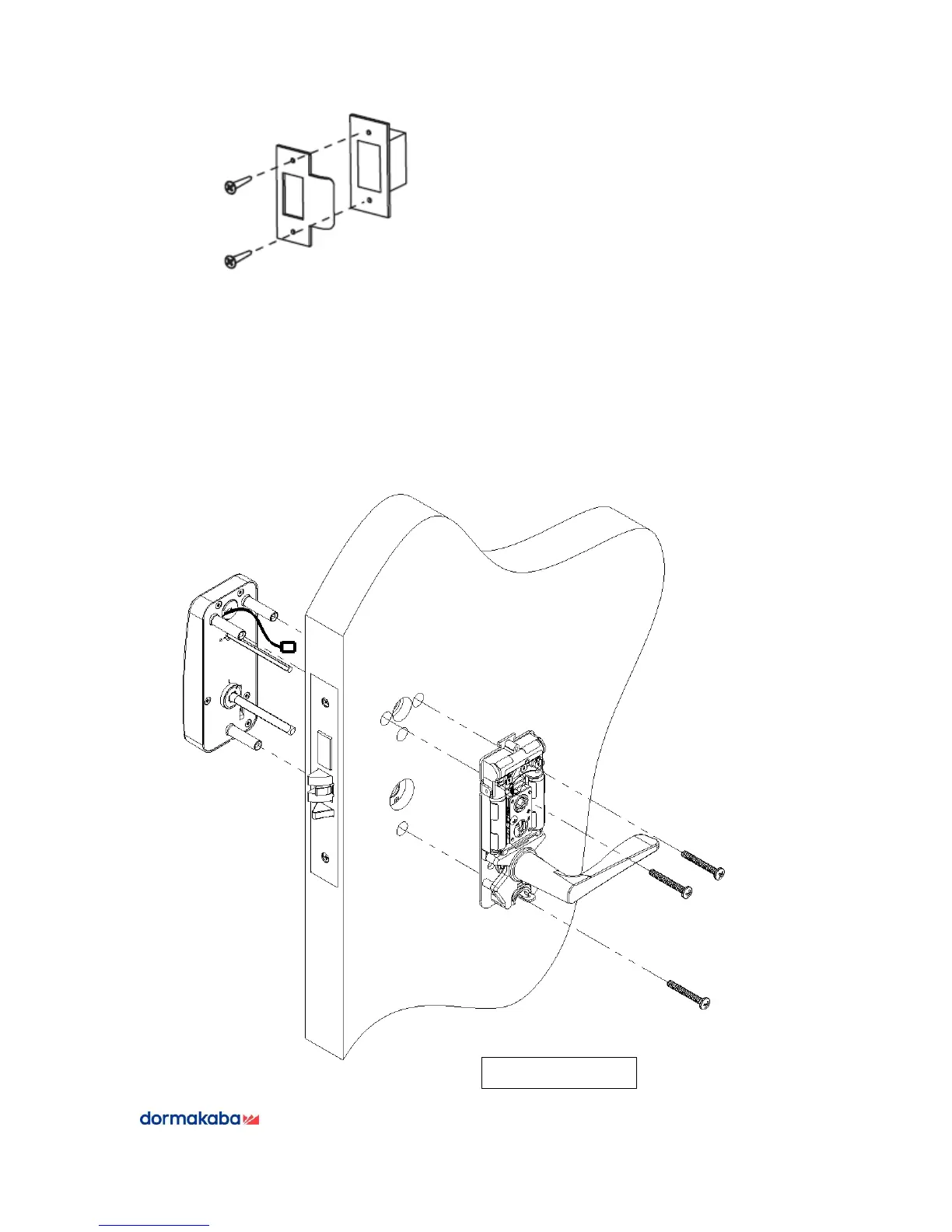

9. Installing the lock housings on the door
Install the housing on the inside of the door and aligning with the lock mechanism.
• Install the front lock housing, routing the wire cable by the center hole at the
top
• Install the inside housing
• Install the screws provided and tighten
LH shown

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
