Dormakaba Saffire LX Installation Guide

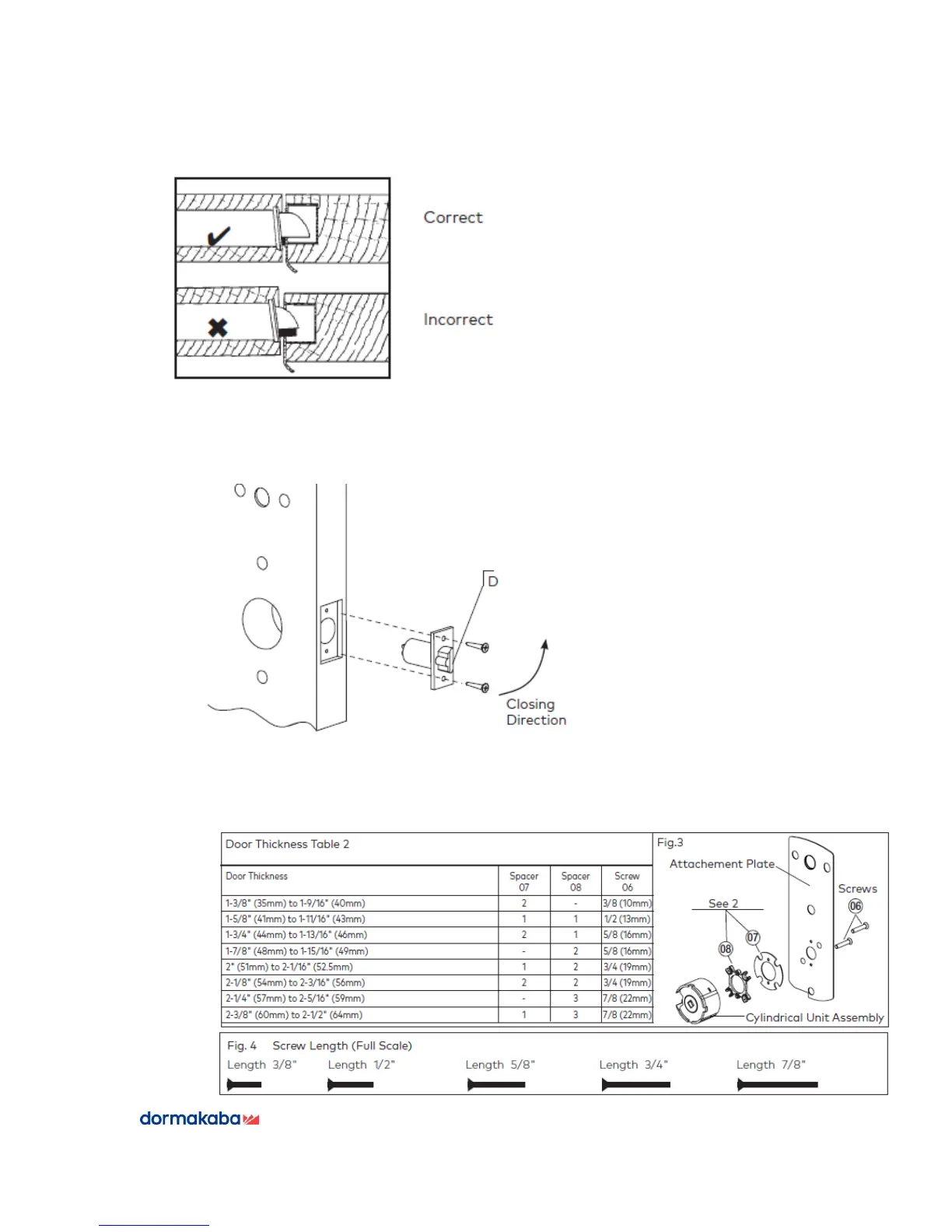

Page 16 of 28 Saffire LX
the pin to slip inside the strike may result in a total lockout and will void the
warranty of the complete lock mechanism.
• Insert the latch in the hole in the edge of the door, orienting them latch
bolt head as per closing direction
• Tighten the two screws.
• Verify the door thickness. The lock is assembled in factory for door
thickness of 1 ¾”. If the door thickness is different, refer to table below
to adjust the spacers. Extra spacers and screws provided in the
hardware bag.

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
