Dormakaba Saffire LX Installation Guide

Page 21 of 28 Saffire LX

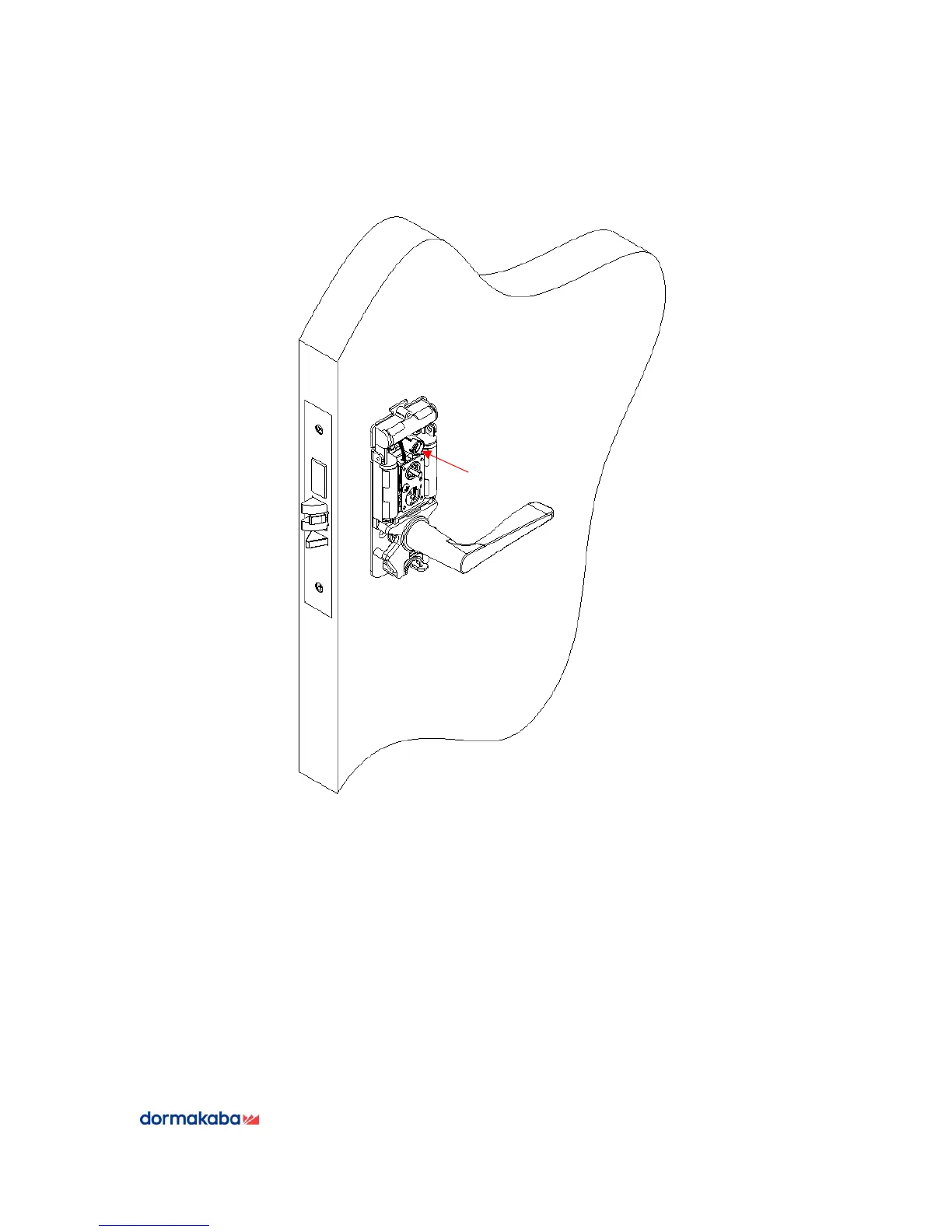

o Now that cables are exposed, connect each cable with its
mating one.
o Push back the wire guide in the door.
12. Installating inside cover
• Set the thumb turn on the inside cover to vertical position
• Slide the inside cover onto the lever handle taking care not to scratch the
lever handle
• When the cover is fully in place, secure it using the 3 screws (item 5)

Dormakaba Saffire LX Specifications

General

Brand	Dormakaba
Model	Saffire LX
Protection Class	IP54
Access Method	RFID
Power Source	Battery
Operating Temperature	-30°C to 60°C (-4°F to 140°F)
Material	Stainless Steel
