Dors 820 - Removal and Installation of Top

Service maintenance manual
820
142
8.31 Removal and installation of top
8.31.1 Remove lock washers fixing stackers shaft assembly, remove bearings (see Fig. 262 Fig.
263 Fig. 264 Fig. 265).
8.31.2 Remove the upper part from the stacker shaft moving it “up” very gently (see Fig. 264
Fig. 265 Fig. 266).
Install the top in reverse sequence.

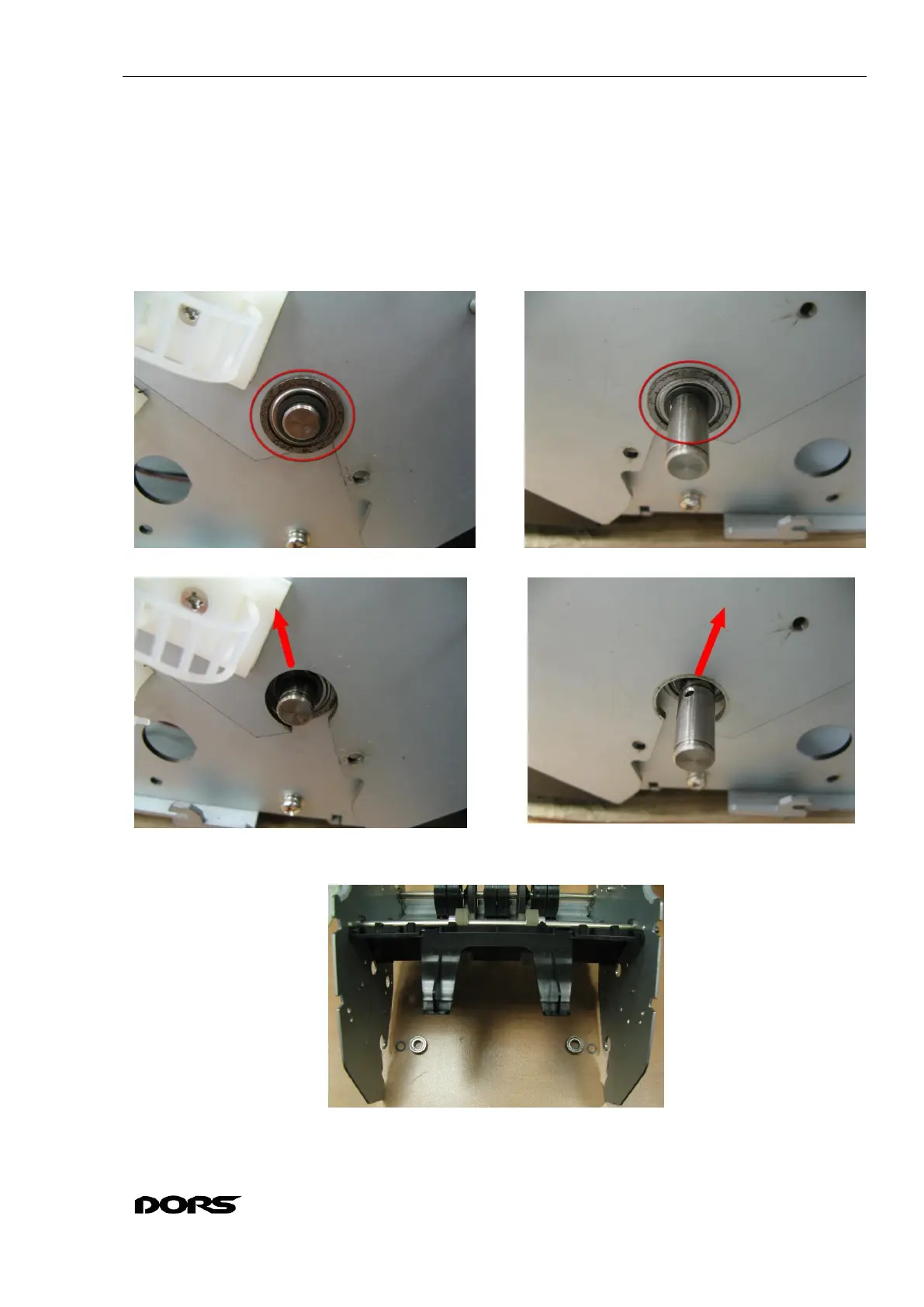

Fig. 262 Fig. 263
Fig. 264
Fig. 265
Fig. 266
