Dors 820 - Removal and Installation of Opening Sensor Module

Service maintenance manual
820
147
8.34 Removal and installation of opening sensor module

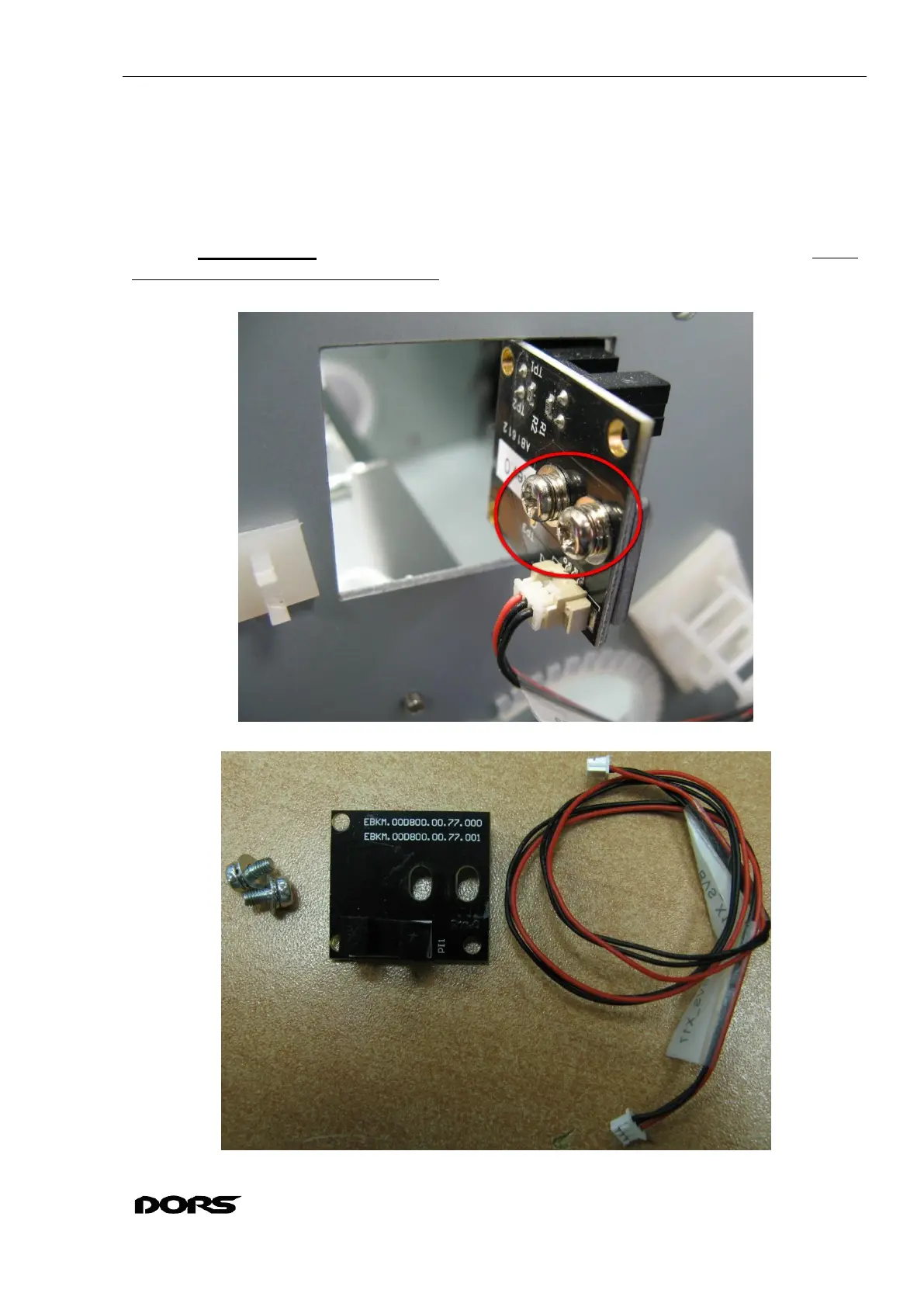

8.34.1 Remove two screws fixing opening sensor module, remove the module (see Fig. 280 Fig.
281).
Install opening sensor module in reverse sequence.
ATTENTION: After the module is installed ensure to adjust the module position on the
assembled counter (except side covers) as described in s. 9.8 Opening sensor module position
adjustment.
Fig. 280
Fig. 281
