8.32 Removal and installation of lower envelope assembly
8.32.1 Remove four screws fixing the lower envelope assembly to the sidewalls (see Fig. 267
Fig. 268).
8.32.2 Remove the lower envelope assembly (see Fig. 269).
Install the lower envelope assembly in reverse sequence. ATTENTION: Adjust the en-
velope position on the assembled product as described in s. 9.7 Lower envelope assembly posi-
tion adjustment.

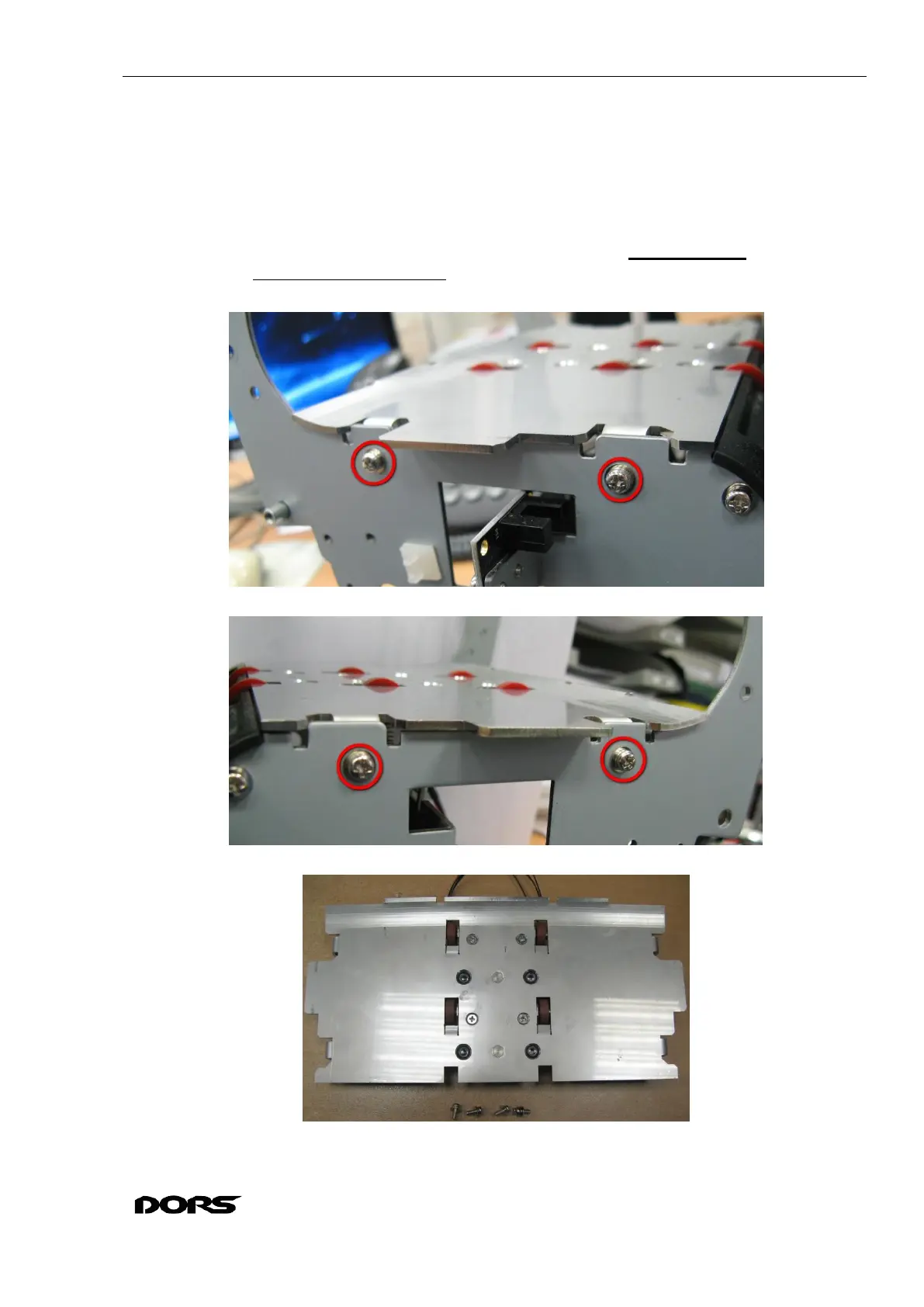

Fig. 267
Fig. 268
Fig. 269
