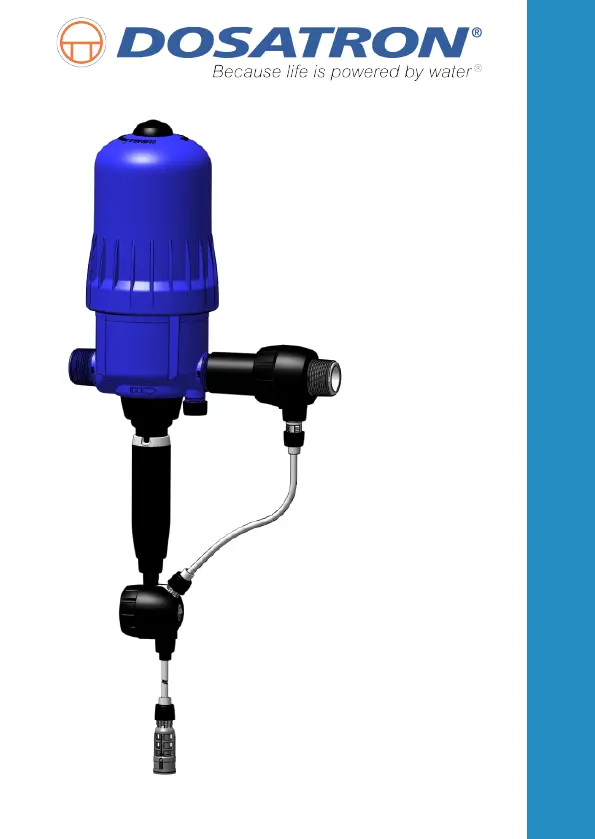

D9 - WATER LINE
User manual

Table of Contents

Other manuals for dosatron D9

Preview: Quick Start-Up
Quick Start-Up2 pages

Questions and Answers

  • K
    kathryn94Aug 21, 2025
    Why does my dosatron D9 Dispenser have no suction of product?
    • S
      sherry54Aug 21, 2025
      If your dosatron Dispenser isn't drawing product, several issues could be the cause: * The motor piston may not be working; refer to the troubleshooting guide for the motor piston. * There could be an air tightness problem in the suction hose. Check the suction hose and ensure the nuts are tightened properly. * The suction hose might be obstructed or the strainer blocked. Clean or replace these parts. * The suction valve seal could be worn, improperly fitted, or clogged. Clean or replace it. * The plunger seal might be wrongly fitted, clogged, or swollen. Clean or replace it. * The dosing pump body could be scratched. If so, replace it.
  • C
    Christine YoungAug 22, 2025
    What to do if my dosatron D9 does not start or stops?
    • M
      Marcus YoungAug 22, 2025
      If your dosatron Dispenser is not starting or stops, consider the following: * The motor piston might be blocked. Try restarting it by hand. * There may be air in the dosatron. Bleed the air by purging. * Overflow could be occurring. Reduce the flow and restart. Also, check for the presence of motor valve seals. * The motor piston could be broken. In this case, return the dosatron to your distributor.
  • C
    chadbrownAug 25, 2025
    Why is my dosatron Dispenser under-dosing?
    • J
      Julia MooreAug 25, 2025
      Under-dosing in your dosatron Dispenser can be caused by several factors: * An airtightness problem. Check the tightness of the dosing part nuts and the condition of the suction hose. * A worn or dirty suction valve seal. Clean or replace it. * Overflow (cavitation). Reduce the flow. * A worn plunger seal. Replace it. * A scratched dosing pump body. Replace it.
  • J
    Jacqueline CombsAug 27, 2025
    What to do if water flowing back into product tank of dosatron Dispenser?
    • K
      Kimberly HendersonAug 27, 2025
      If water is flowing back into the product tank of your dosatron Dispenser, the suction valve or valve seal is likely dirty, worn, or absent. Clean or replace it.
  • K
    Kaylee HansenAug 28, 2025
    Why are there leaks between the body and the top of my dosatron Dispenser?
    • A
      Anthony ChapmanAug 28, 2025
      Leaks between the body and the top of your dosatron Dispenser usually indicate that the top seal is damaged, fitted incorrectly, or absent. Try positioning it correctly, cleaning the seal groove, or replacing it.
  • D
    daniel59Aug 29, 2025
    What causes leaks close to the fixing nut under the pump body of my dosatron D9?
    • D
      Douglas BlankenshipAug 29, 2025
      Leaks near the fixing nut under the pump body of your dosatron Dispenser are often due to a damaged, wrongly positioned, or missing dosing body seal. Correct the position or replace the seal.
  • J
    Juan WilliamsAug 31, 2025
    What causes leaks between the dosing adjustment sleeve and the dosing locking nut of my dosatron D9 Dispenser?
    • R
      Robin SmithAug 31, 2025
      Leaks between the dosing adjustment sleeve and the dosing locking nut on your dosatron Dispenser typically occur because the dosing pump body seal is damaged, wrongly positioned, or absent. Position it correctly or replace it.
  • Z
    Zachary CooperSep 2, 2025
    Why does my dosatron Industrial Equipment stop working?
    • C
      Christopher GarrisonSep 2, 2025
      Your DOSATRON Industrial Equipment might stop working due to several reasons: * The motor piston might have seized. In this case, restart it by hand. * There might be air in the DOSATRON. Bleed the air out of the system. * There could be an overflow. Try reducing the flow and restarting. Also, check that the motor valve seals are fitted. * The motor piston might be broken. If so, return the DOSATRON to your distributor.
  • C
    Cassandra RamirezSep 5, 2025
    What causes backflow into the product tank in dosatron Industrial Equipment?
    • C
      cschroederSep 5, 2025
      Backflow into the product tank of your DOSATRON Industrial Equipment can be caused by: * A dirty, worn, or missing suction valve or valve seal. Clean or replace the affected parts. * For IE models, a damaged injection module diaphragm and silicone umbrella valve. Replace the diaphragm and the valve seat. * For IE models, damage or lime scale build-up on the duckbill valve or silicone umbrella valves. De-scale or replace the duckbill valve and valve seat.
  • C
    Cody GuerreroSep 7, 2025
    How to fix under dosing in dosatron Industrial Equipment?
    • W
      Wanda HudsonSep 7, 2025
      If you're experiencing under dosing with your DOSATRON Industrial Equipment, consider the following: * Check for air tightness problems, ensuring the injection assembly nuts are correctly tightened, and inspect the condition of the suction hose. For IE versions, also check the injection hose. * Inspect the suction valve seal for wear or dirt. Clean or replace it. * Address overflow (cavitation) by reducing the flow. * Replace a worn plunger seal. * Replace a scratched dosing pump body. * For IE models, check for damage or lime scale build-up on the external injection module and the injection T-piece. Inspect the condition of the silicone umbrella valves, the diaphragm, and the duckbill valve. De-scale or replace if necessary.

Summary

Introduction

DOSATRON Technology

Marking;Identification Specifications

MARKING

Details the three main marking zones for identifying the dosing pump.

CODIFICATION OF THE PART NUMBER

SPECIFICATIONS & DIMENSIONS

PACKAGING

Installation

PRECAUTIONS

General safety instructions and warnings for installation and operation.

INSTALLING THE DOSOTRON

Instructions for mounting and connecting the DOSATRON to the water supply.

CHANGING THE DOSING SCALE

Procedure to orient and adjust the dosing scale for correct measurement.

CONNECTING THE SUCTION HOSE

Guide to attaching the suction hose to the concentrate container.

INSTALLATION TIPS

Recommendations for optimal installation, including bypass assembly.

CONNECTING THE EXTERNAL INJECTION (IE) KIT

Steps for connecting the optional external injection kit.

AUTOMATIC ADDITIVE ANTI-SIPHONING SYSTEM

Explanation of the system that prevents siphoning.

Starting up the DOSATRON

USING FOR THE FIRST TIME

Step-by-step guide for initial operation and setup of the DOSATRON.

USE

Guidelines for operating the DOSATRON under various conditions and fluid types.

ADJUSTING THE DOSING (WITHOUT PRESSURE)

Procedure for setting the correct dosing rate without system pressure.

DOSING PRINCIPLE

Explanation of the basic principle of concentrate to water ratio in dosing.

BY-PASS OPTION

Details on how to use the optional by-pass function for operation control.

FEET OPTIONS

Instructions for installing the DOSATRON using optional feet for stability.

Maintenance

RECOMMENDATIONS

General advice for maintaining the DOSATRON for optimal performance and longevity.

DRAINING THE DOSATRON

Procedure for draining the DOSATRON for maintenance or frost protection.

REMOVING THE SUCTION HOSE

Step-by-step guide to detach and reattach the suction hose.

REMOVING;REFITTING THE INJECTION ASSEMBLY

Instructions for disassembling and reassembling the injection assembly.

REPLACING THE INJECTION SEALS

Procedure for replacing worn or damaged injection seals.

Replace the dosing piston

Guide to replacing the dosing piston and its seal.

D9 WL2;D9 WL5 Component Replacements

Procedures for replacing suction valve, O-rings, and dosing piston seal on D9WL2/D9WL5.

REMOVING;REFITTING THE DOSING PISTON

Instructions for removing and installing the dosing piston.

REPLACING THE EXTERNAL INJECTION SEALS

Procedure for replacing seals in the external injection assembly.

CLEANING AND REFITTING THE SUCTION VALVE

Guide to cleaning and reassembling the suction valve.

REPLACING THE MOTOR PISTON (WITHOUT PRESSURE)

Steps to replace the motor piston without system pressure.

Troubleshooting

Motor piston issues

Troubleshooting steps for issues related to the motor piston not starting or stopping.

Dosing issues

Troubleshooting steps for problems with the dosing function.

Under dosing

Causes and solutions for incorrect or insufficient dosing.

Backflow into the product tank

Troubleshooting steps for preventing backflow into the concentrate tank.

Leaks

Identifying and resolving leaks at various points of the DOSATRON unit.

Warranty

KNOW YOUR FLOW

Appendices

GRAPHS

Technical graphs illustrating pressure losses and viscosity for different models.

Pressure losses - D9 3000

Graph showing pressure drop curves for the D9 3000 model.

Pressure losses - D9 3000 IE

Graph detailing pressure drop curves for the D9 3000 IE model.

Pressure losses - D9 - 2%

Graph illustrating pressure loss for D9 models at 2% dosing.

Pressure losses - D9 - 5%

Graph showing pressure drop curves for D9 models at 5% dosing.

Viscosity - D9 3000

Graph illustrating viscosity limits for the D9 3000 model.

Viscosity - D9 - 2%

Graph showing viscosity limits for D9 models at 2% dosing.

Viscosity - D9 - 5%

Graph illustrating viscosity limits for D9 models at 5% dosing.
