dosatron D9 - INSTALLATION TIPS

/ 27
INSTALLATION TIPS

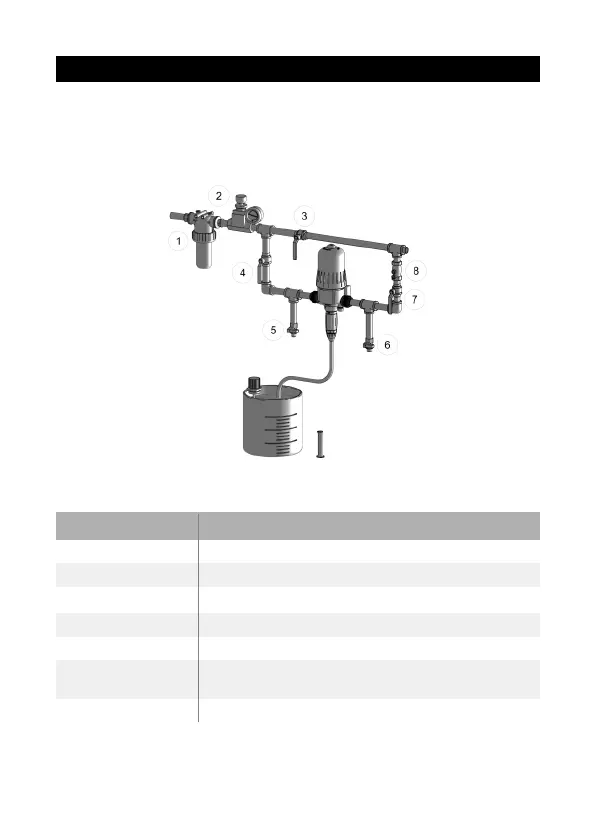

The DOSATRON must be assembled in by-pass as shown below. An in-line
assembly is possible but not recommended because it does not enable the
dosing pump to be easily isolated for maintenance (necessary to cut off the
water supply).
fig 14
Item number
Description
1 Filter
2 Pressure Reducer
3 By-pass valve
4 + 7 Isolation valves
5 Clear water / stock solution valve
6 Fast priming / flushing / Dosatron test / sampling
valve
8 Non-return valve
