CONNECTING THE SUCTION HOSE
The DOSATRON is supplied with a suction hose (to be adjusted as required)
which allows it to be used with a large capacity container. This hose must be
fitted with the strainer and ballast.
NOTA: Maximum suction height: 4 m [13 ft]
D9WL3000 / D9WL3000IE

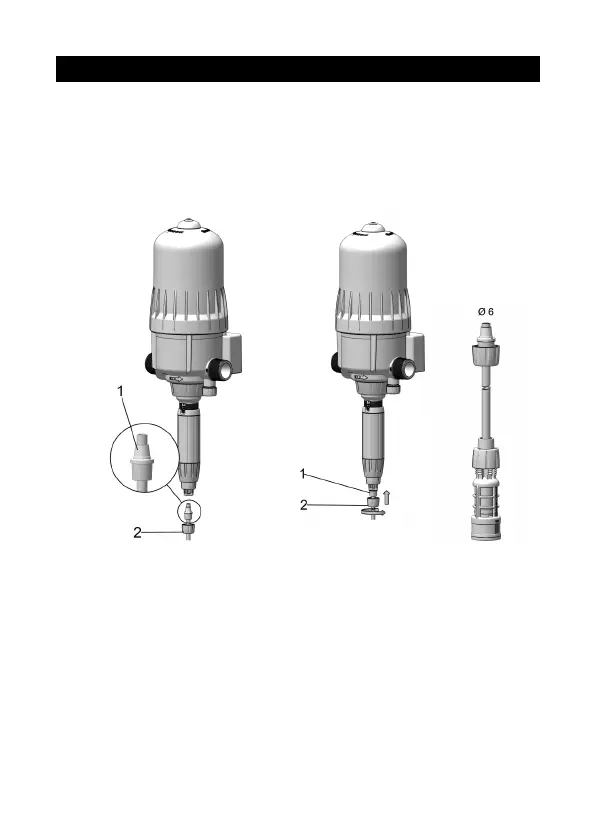

fig 11
fig 12
fig 13
- Unscrew the nut at the bottom of
the injection assembly Then thread
the suction hose through the nut
(item 2) and the nozzle (item 1).
- Push the hose into the barbed
fitting as far as it will go and screw
the nut by hand.
- Assemble the strainer on the other
end of the hose using the same
method
- Immerse the strainer into the
solution to be dosed
