ADJUSTING THE DOSING (WITHOUT PRESSURE)
ATTENTION! No tools should be used.
The dosing adjustment must be carried out with no pressure in the system
• Turn off the water supply and allow the pressure to drop to zero.
• Unscrew the dosing locking nut.
• Turn the dosing adjustment sleeve clockwise or anticlockwise so that the 2
dots above the viewing hole are aligned with the desired dosing marker.
• Retighten the dosing locking nut.

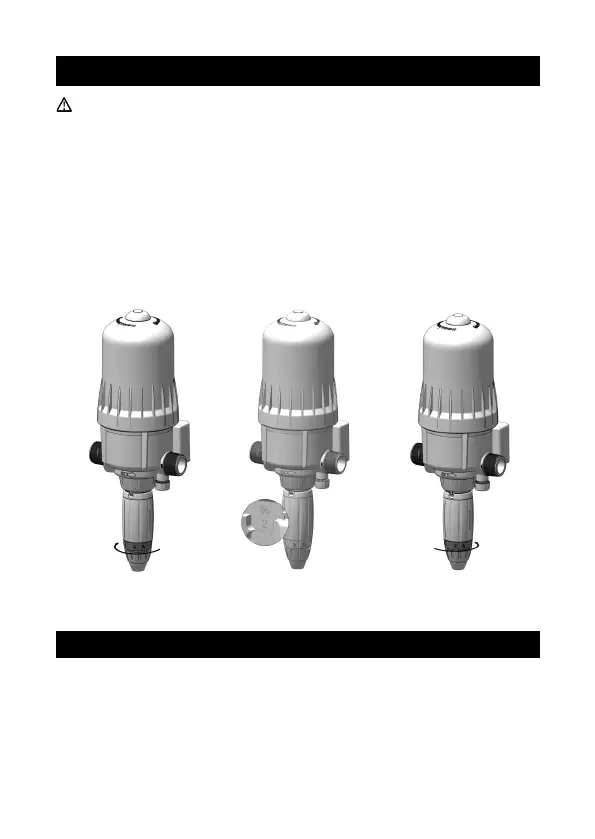

fig 22 fig 23 fig 24
DOSING PRINCIPLE
Principle: Adjustment at 1% - 1/100 = 1 volume of concentrate to 100 volumes
of water.
