Doyon LSB516 - Page 17

LMA-A REV.DOC 23/04/08
17

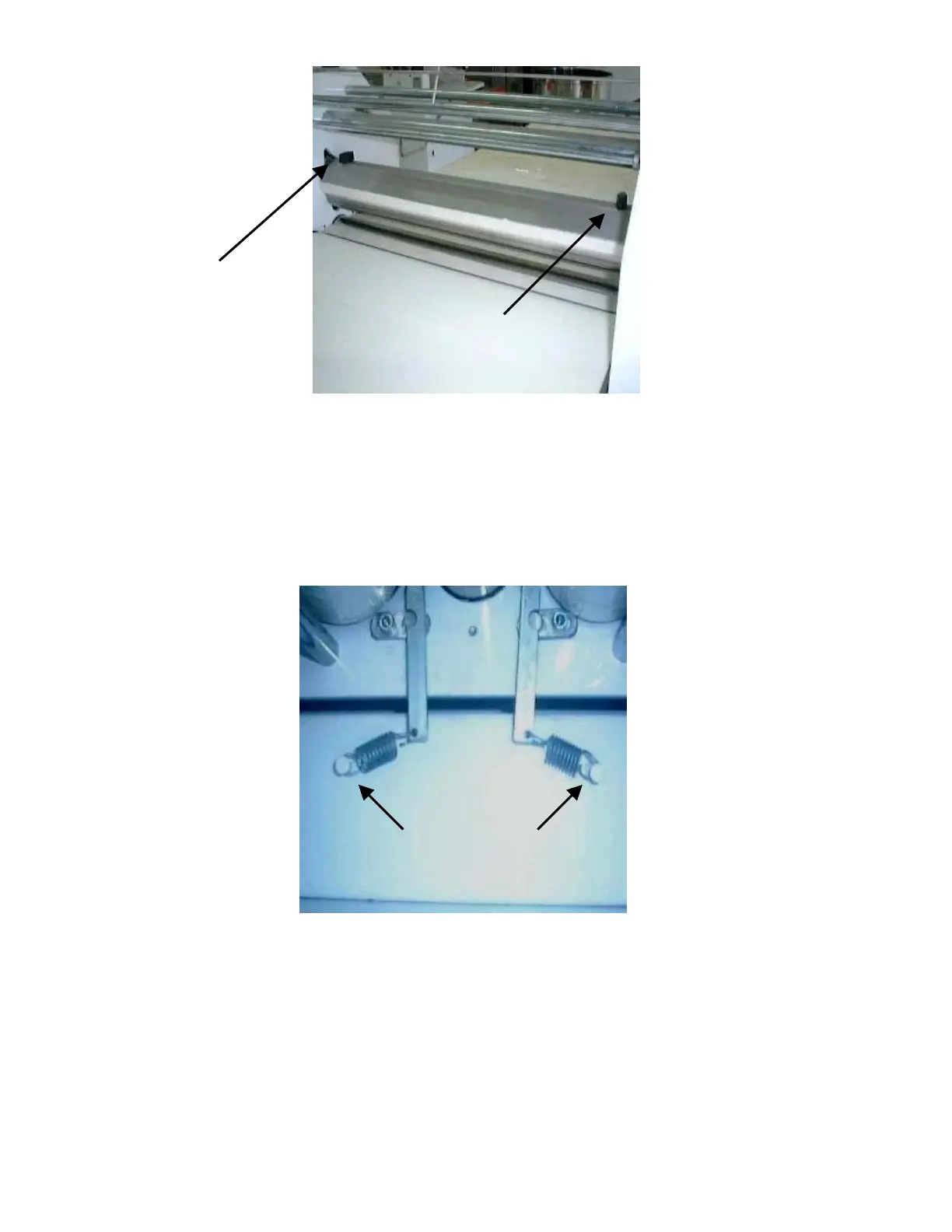

Fig. 7.1
The other scrapers are fixed under the inferior cylinder. So, in order to dismount them to
clean them, you have to:
1. Remove the two springs under the canvas from the studs (fig. 7.2).
2. Pull the scraper extremities until it’s loose.
3. Lift the scraper.
Fig. 7.2
