Doyon LSB516 - General Information; Start; Working Process

LMA-A REV.DOC 23/04/08
14
CHAPTER 6
SHEETERS OPERATION
6.1 - GENERAL INFORMATION
• Verify if the electric connections are as explained in chapter 5.3.
• Put the machine horizontally using the levelers (fig. 5.2).
• Set the table canvas (fig. 3.2).
6.2 - START
When you switch on the machine, check immediately if all protection systems, explained in
chapter 4.5, are working perfectly.
6.3 - WORKING PROCESS
1. Put the general switch in position I and press the green start button ( I ) fig. 4.3.
The LMF624/LMA624 has two working mechanism and the LSB516/LSA616 has only
one.
2. Manual driving (fig. 6.1) on LMF624/LMA630 and LSB516/LSA616.
3. Pedal driving (fig. 6.2) on LMF624 only.

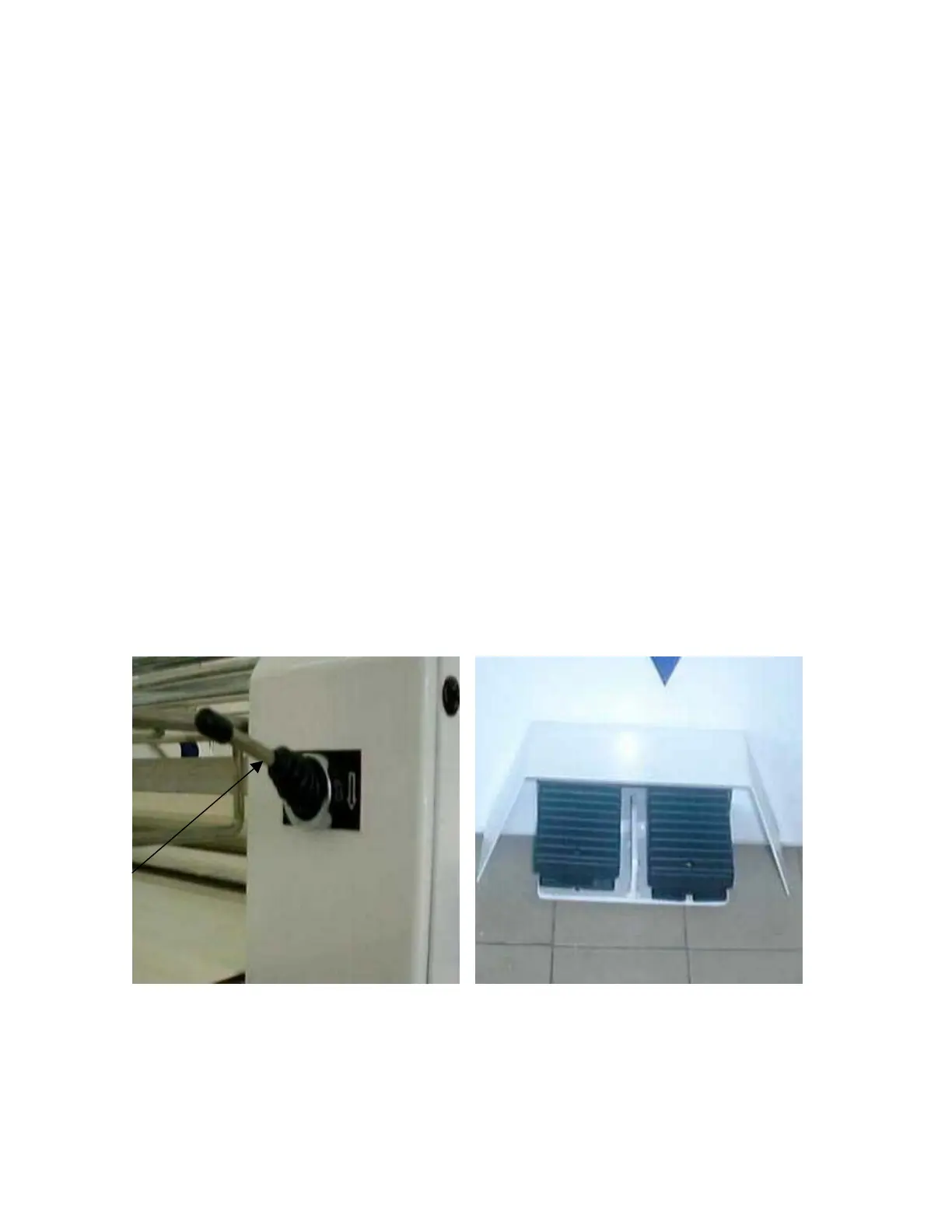

Fig. 6.1 Fig. 6.2 LMF624 only
