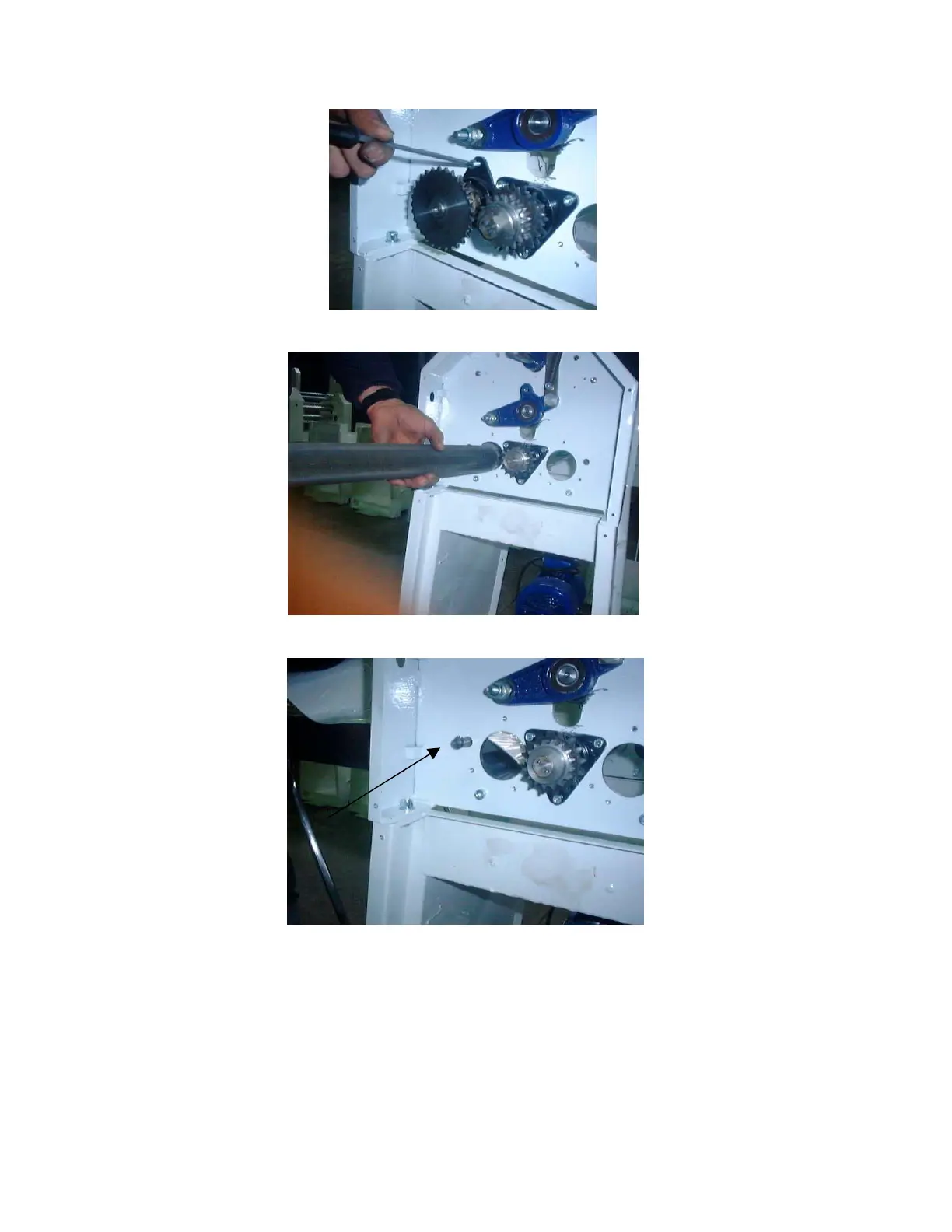

Loosen the triangular flange bearing on the two principal rollers (only on the handle side or
front side), unscrew three screws on each flange bearing.
10. Remove the conveyor belt rollers.
11. Then remove the table’s guiding shafts.
12. Now remove the sheeter’s tables, and then change the conveyor belts.
13. To assemble the sheeter, you must proceed in reverse order.
