8.2- HOW TO REMOVE THE CONVEYOR BELT ON LSA616 & LMA630
Every time, that it is needed to remove the tables for cleaning the machine, the under
instruction procedures must be followed.
Remove the flour collector (Fig. 3.6);
Remove the inferior cylinders’ scrapers, by firstly unscrewing the spring (Fig. 7.2);
Remove the table with a screwdriver, in a way to push the table in the direction of the
arrow, always from the controls area to the opposite side (Fig. 8.2a).

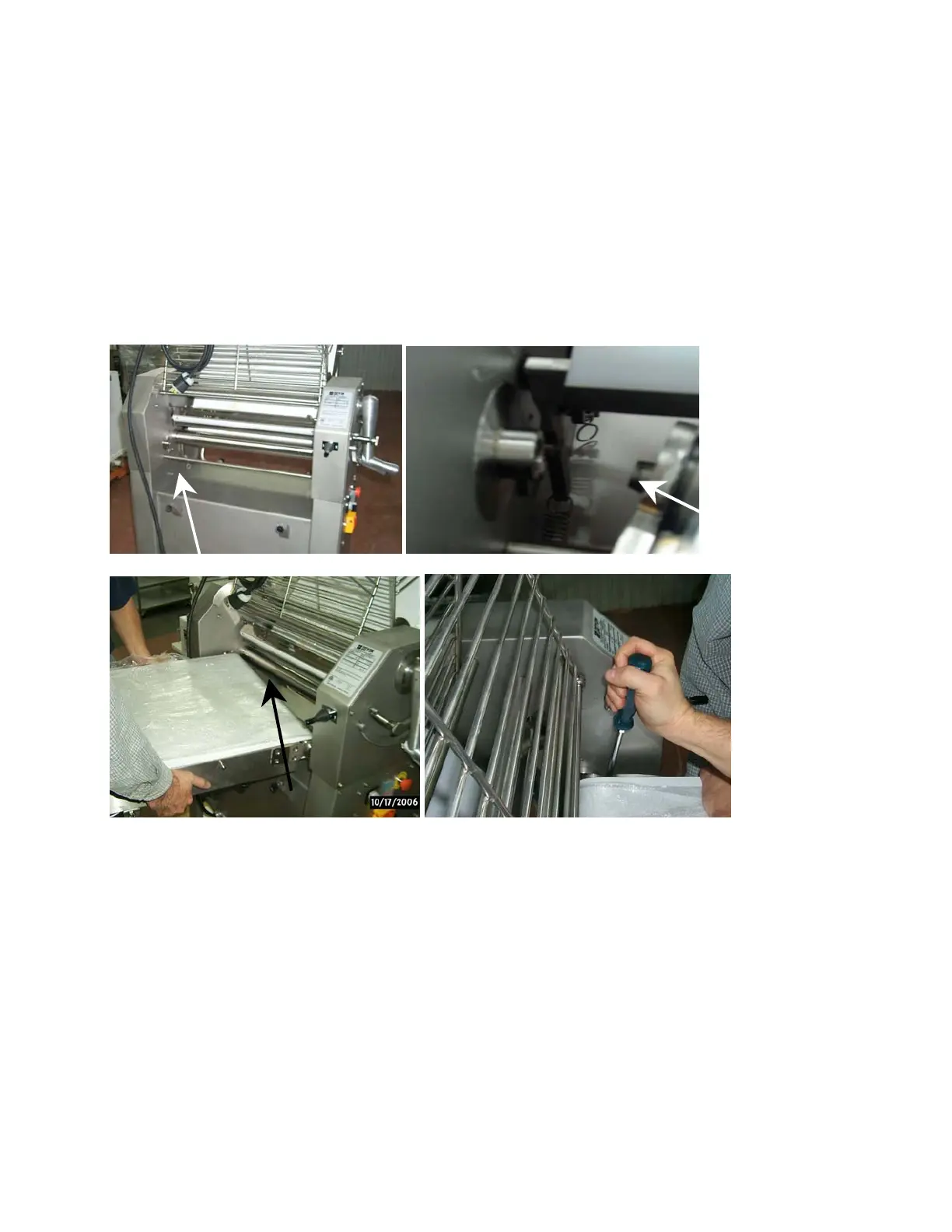

Fig. 8.2a ( LSA616 & LMA630 )
Insert one end of the conveyor in the spring insert the back side one. Push in the spring load.
In same time you push the spring load, insert the opposite side of the conveyor in the front
slut.
To remove the conveyor make the same process in the opposite way.
