LSC 44-M4
99.823.35 1.2/06/09
Mounting of Reflux Valve at Suction Tube End
Mount reflux valve,
always horizontally
if used in lift shaft,
that dust and dirt will
not be uncessarily whirled up
in the shaft pit with blowing
through of the tube system.

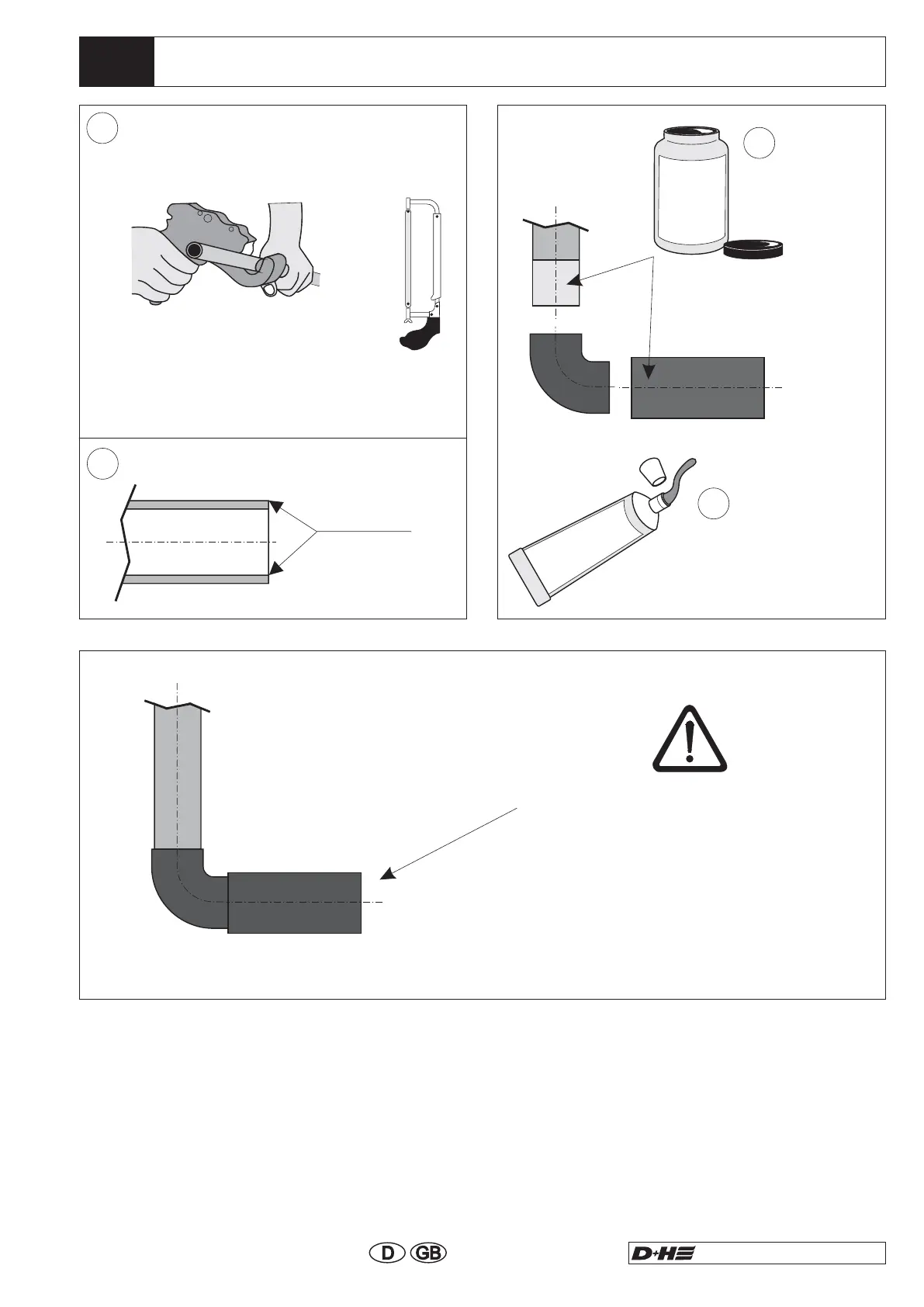

Cut tubes to length
(pipe cutter or pipe shears 38mm /
metal cutting saw)
Burring
Burring
Suction tube (PVC-red)
Suction tube halogen free
R-2519, R-3218, R-4019
ABSR-2518, ABSR-3220, ABSR-4025
(optional available)
After cleaning,
glue tube street
fittings airtight
together!
Clean tube
street fittings!
Tangit
cleaner
Tangit
Adhesive agent
