LSC 44-M4
99.823.35 1.2/06/09

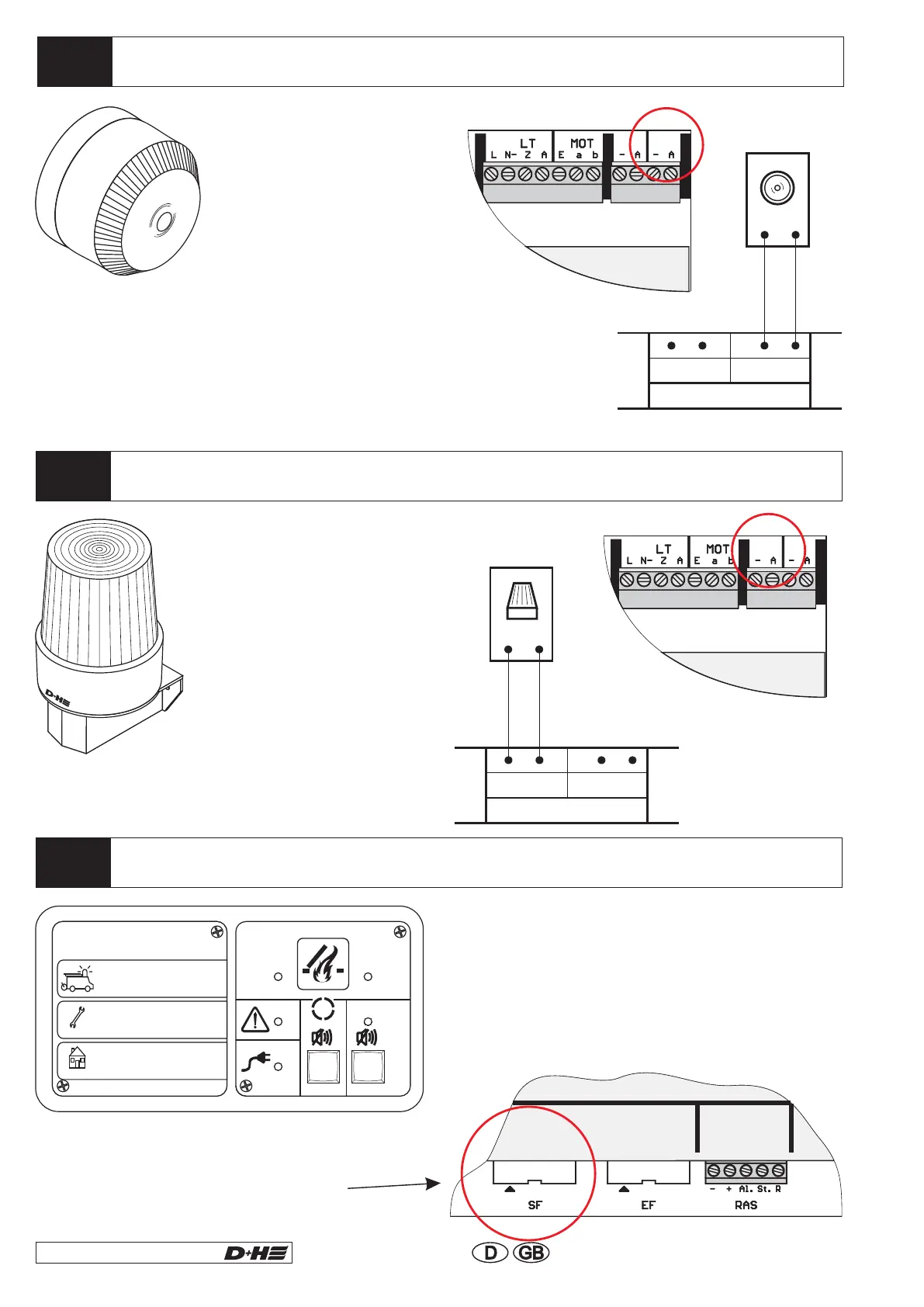

General display panel SF 43
Flashing light BL 41
Alarm Siren B/SE 24
Technical Data
Power supply : 24V/ 0,25A
flashing
light
Alarm
siren
- Display panel for optical and acoustical
indication of general alarm and general fault.
- Optical indication of power failure
- Type SF 43-AZ with cut off button for external
alarm devices.
Connection
Via flat cable directly into contact
point SF of the module LSM 44
- grey with orange dome
- suitable for outside
mounting
Technical Data
Power supply : 10-28V/ 0,03A
Loudness : 80-116dB, adjustable
Dimensions : ø 92mm, height 75mm
Protective system : IP 54
Colour : red
