X.x6.3
X.x6.4
SF EF
Smoke det.
Lift
LSM 44
42/48
LSC 44-M4
99.823.35 1.2/06/09
The indication display is mounted on the door of the
control panel. Here the user will get all important
informations at a glance (e.g. in-house electrician,
caretaker and the like).
Connection
Via flat cable directly into the contact point EF of
the module LSM 44
- Domelight or louvre must be handled by
trained specialists from the roofer- and window
building trade.
- Mechanic installers must show their
qualification according to the guideline of the
German employer's liability insurance
association in the field of power operated
windows, doors and gates.
- They must be familiar with the relevant
working regulations, rules for prevention of
accidents and generally recognized rules of
technique (e.g. VDE-rules, DIN-standards,
etc.), so that the operating safety of the
system will be ensured.
- Louvre windows must be always vertically
installed. No mechanical stress must be
exercised on the louvres by mounting.
- Alterations or repairs on the system must be
only carried-out by the manufacturer.
Alterations of the system, taken on one's own,
are .
The manufacturer will be not liable for
damages, which result from changes not
authorized.
- Highly electromagnetic fields are to be avoided
in proximity of the smoke vent device.
- The smoke vent device must not be subject to
shocks, concussions or vibrations.
- Furthermore, the smoke vent device must be
protected against humidity like weather.
This is especially important during bedding at
building site and during installation!
forbidden
The warranty will extinguish.
Informations for Mounting of Louvre/ Domelight

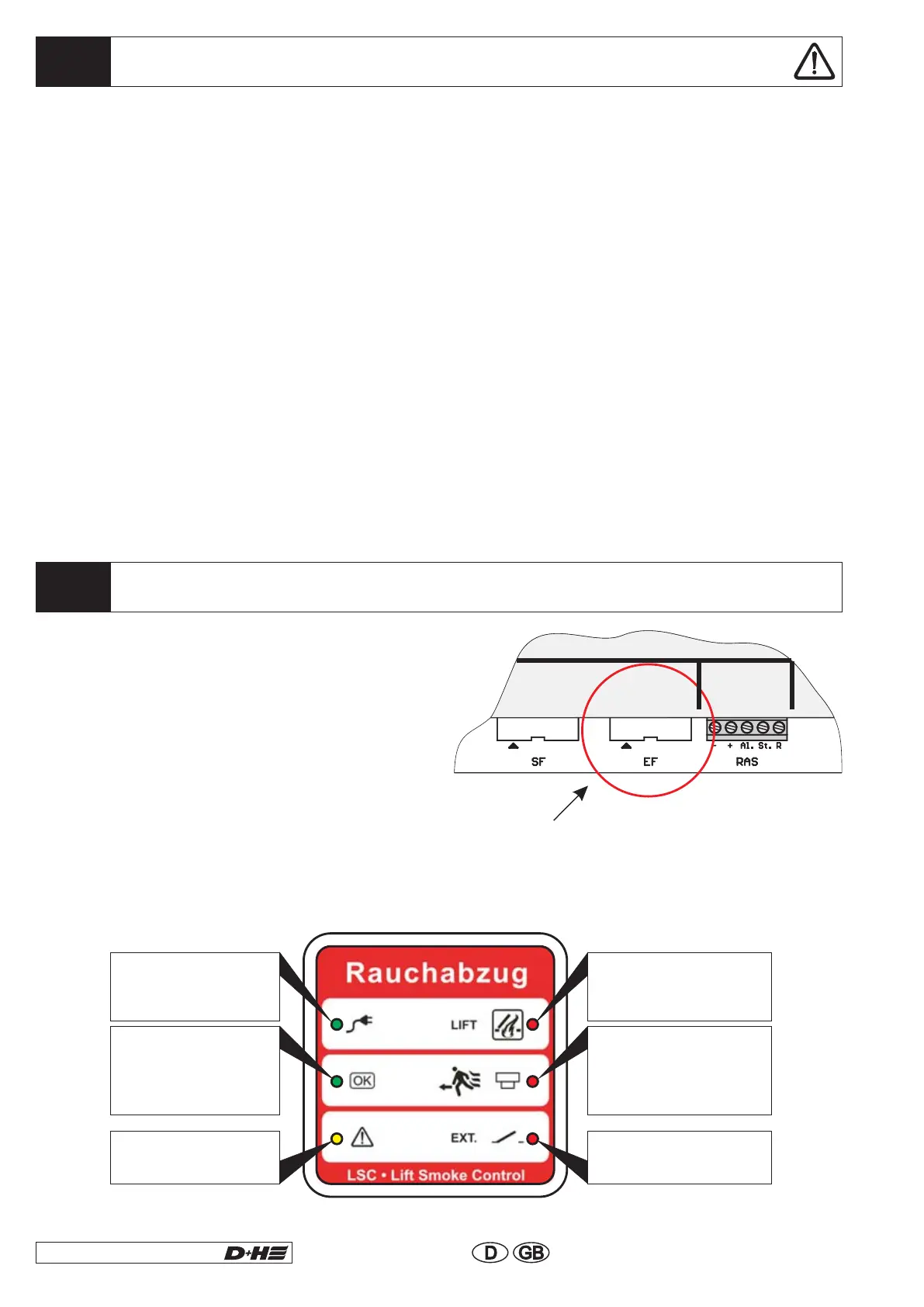

Display Panel EF 43-LSC
System
mains control
System
control
OK
Alarm
smoke suction
in shaft
Alarm
smoke detector
main evacuation
level
External alarm
(BMS)
System
malfuntion
