X.x4.7
110
90
21/48
LSC 44-M4
99.823.35 1.2/06/09
Observe flowing-through direction
of the filter with mounting!
(label on housing outside)

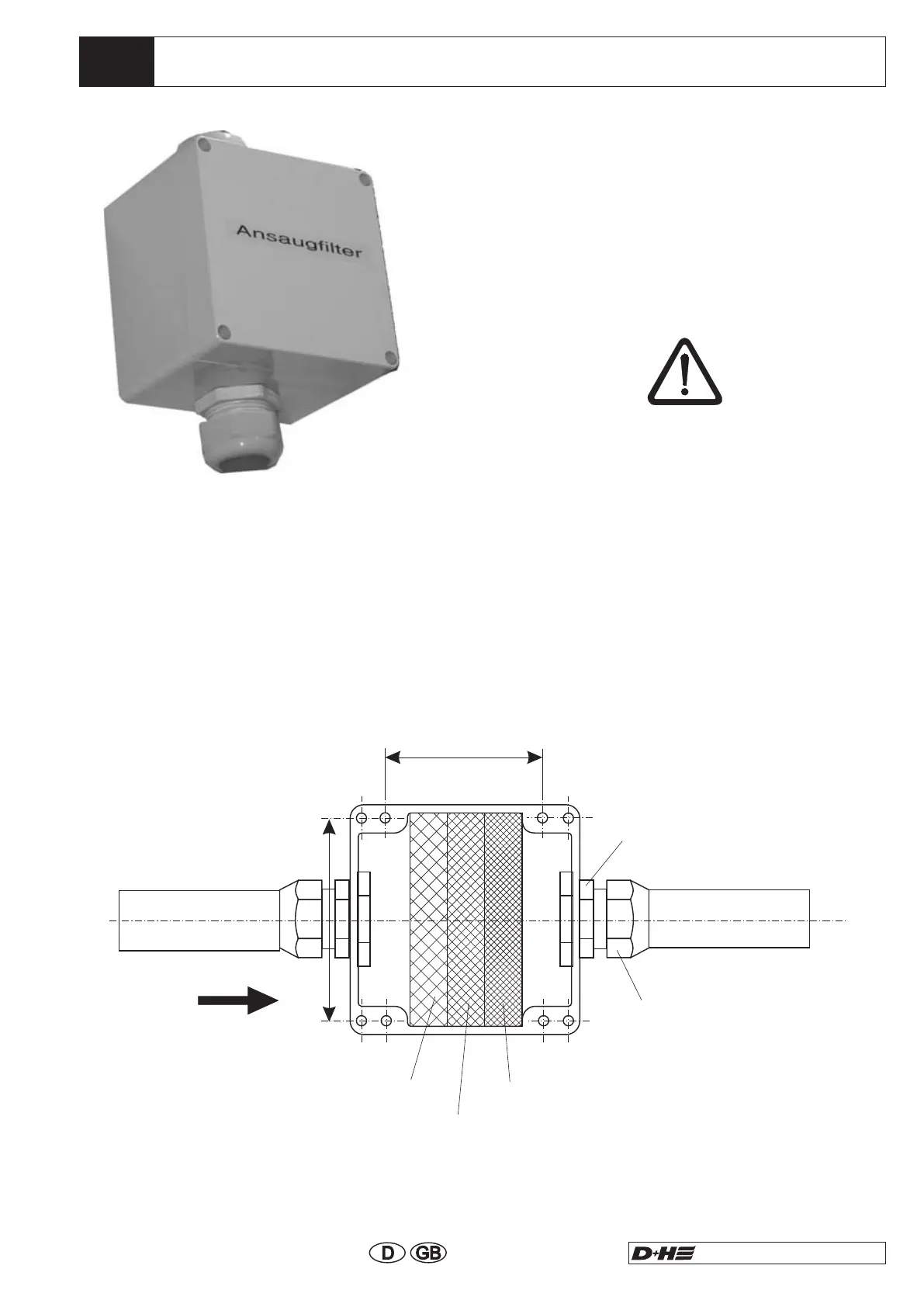

Air Filter LF-AD
PG 29-
screw fitting
swivel nut
Mounting
1. Unscrew swivel nut of PG29-screw fittings
2. Stick suction tubes into both sides
3. Screw down again swivel nuts
4. Screw filter housing directly on wall with
housing lower part
Exchange of Air Filters
1. Unscrew the 4 screws on housing cover
2. Remove housing cover
3. Remove filter elements
4. Clean carefully housing inside from dust deposits
5. Put in new filter elements in correct order
6. Place housing cover upon housing and screw down again
(see indicating label on housing bottom)
preliminary filter
coarse particle filter
fine particle filter
suction tubesuction tube
flowing-through
direction
