Floating contacts in neutral
position
With floating contacts in neutral position for
the total informations of the central device
can be passed on to lift control.
With release through SHEV-buttons, smoke
suction system in lift shaft or through floating
contacts in neutral position.
With release through smoke detector on main
evacuation level
- malfunction
- SHEV- alarm lift shaft
- SHEV-alarm first main evacuation level
SHEV-Alarm
SHEV-Alarm (main evacuation level)
Malfunction
With release through short to ground, interruption of
motor- or battery circuit as well as interruption or
short circuit of the SHEV-button, smoke detector
circuits or of the automatic smoke suction system.
The floating contact can be loaded with each
1A/ 60 VDC.

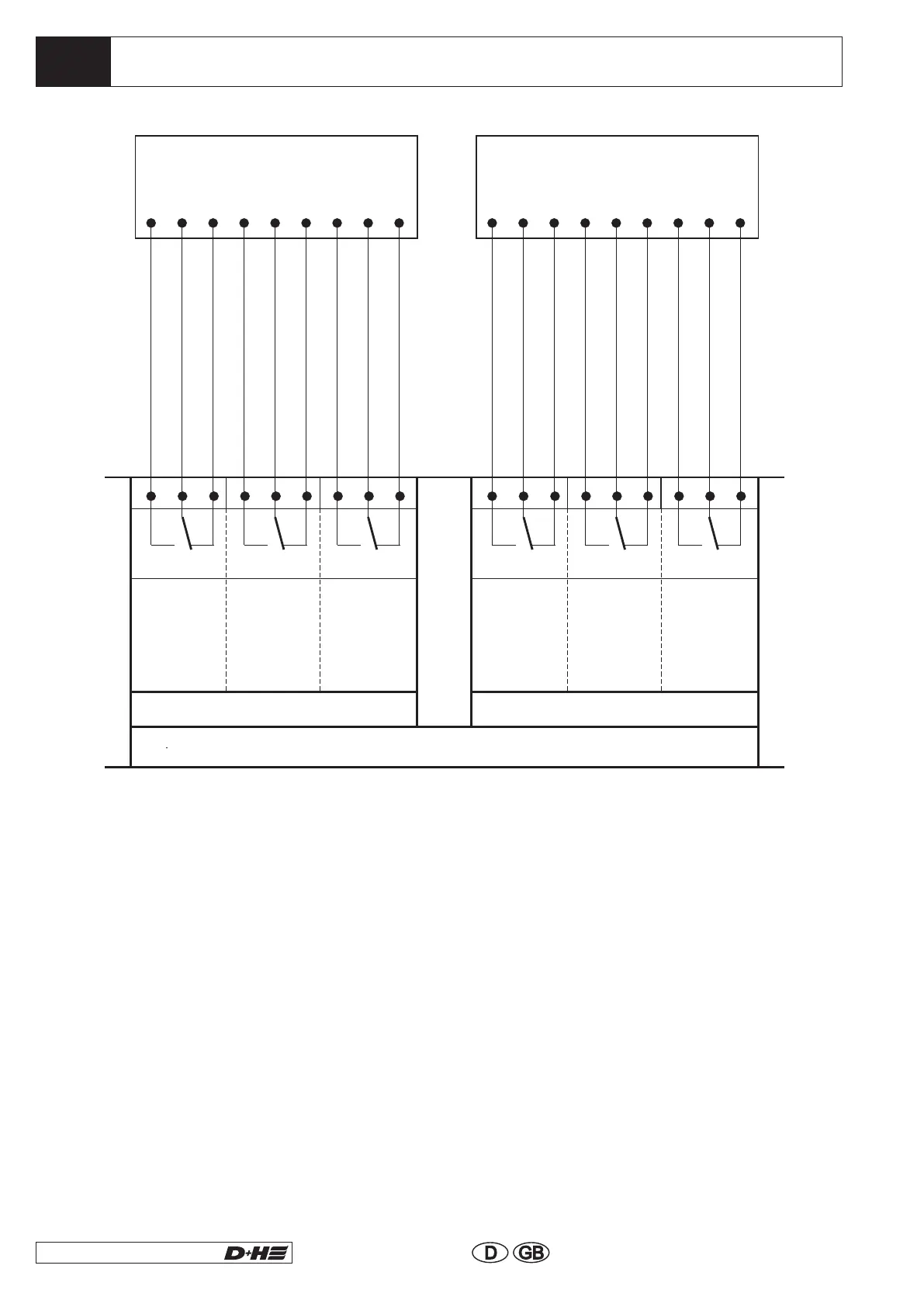

Connection Signalling Lift / External Signals
Signals lift External signals
To lift control Signal to BMS
Mal-
function
SHEV
Alarm
Lift
shaft
SHEV
Alarm
first main
evacution
level
Closer contact (NO)
Closer contact (NO)
Closer contact (NO)
Closer contact (NO)
Closer contact (NO)
Closer contact (NO)
Reference contact
Reference contact
Reference contact
Reference contact
Reference contact
Reference contact
Opening contact (NC)
Opening contact (NC)
Opening contact (NC)
Opening contact (NC)
Opening contact (NC)
Opening contact (NC)
Mal-
function
SHEV
Alarm
Lift
shaft
SHEV
Alarm
first main
evacution
level
