D+H LSC-M Series User Manual

X.x5.4
OK
min
15
2
45
30
sec
20
2
60
40
12345678
ON SAB
1234
ON SAB
12345678
ON SAB
1234
ON SAB
12345678
ON SAB
X15
Rauchabzugszentrale
Smoke Vent Controller
D+H Mechatronic - Germany - +49 40 605 65 0
RZN 4404-M
IN : 230VAC / 240VA
OUT : 24VDC / max. 4A
IP
30
12.345.67-65.43 - 123456 Temp. -5°C..40°C
1
2
3
4
26/48
LSC 44-M4
99.823.35 1.2/06/09
Smoke and heat vent alarm
Control panel O.K.
Mains supply
Vent button function "ON”
Ventilation-/SHEV-key function “Closed”
Failure
Charging voltage controller
Regulator for OPEN-running
time limitation
Regulator for ventilation
time limitation
Fuse
Reset
Piktograph explanation

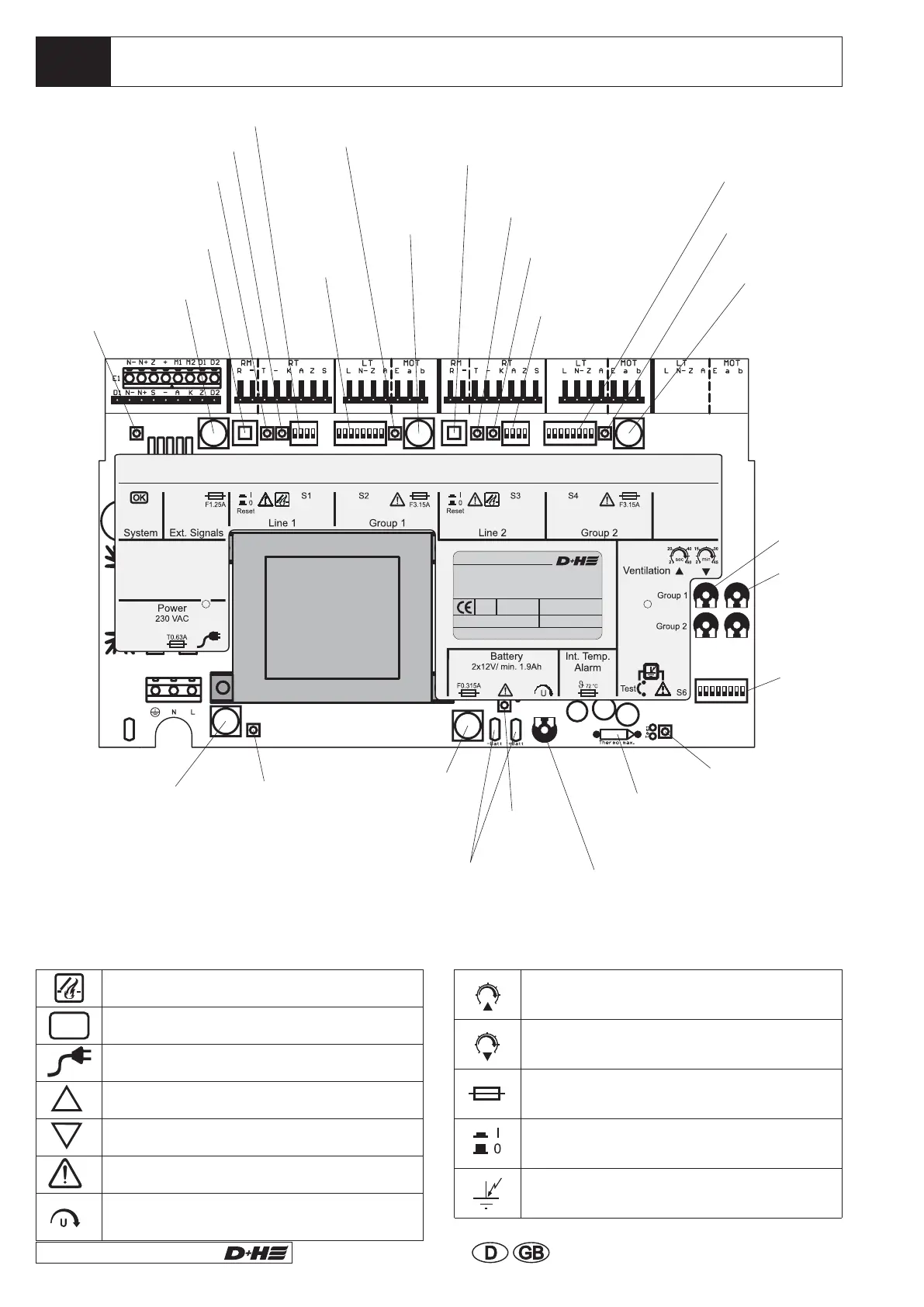

View motherboard RZN 4404-M VdS
1
2
3
Potentiometer for OPEN-running time limitation
potentiometer for ventilating time limitation
DIP-switch S6 control panel configuration
4 LED-failure accumulator
Ground short
fuse EXT.
indication
alarm reset
line 1 ON/ OFF -
reset indicator
LED failure line 1
DIP switch S1
LED-
control
LED alarm line 1
DIP-
switch
S2
fuse drive
group 2
LED failure
group 2
DIP-switch S4
DIP-switch
S3
LED failure
line 2
LED alarm
line 2
LED failure
group 1
fuse drive
group 1
Alarm Reset
line 2 ON/ OFF
reset indicator
fuse mains LED-mains
fuse
accumulator
accumulator -
connection
charging voltage
control accumulator
fire recognition element
(thermo maximum signal)
ground short
