DR All-Terrain FIELD and BRUSH MOWER User Manual

DR

ALL-TERRAIN

FIELD and BRUSH MOWER Safety & Operating Instructions 29
Adjusting the Wheel Clutch
Note: When properly adjusted, tension on the wheel clutch lever should increase when
the lever is about parallel to (almost touching) the handlebar grip.
Tools Needed:
■ (2) 1/2" wrenches
1. Find the wheel clutch adjustment on the clutch bracket on the underside of the
machine (Figure 21).
2. Loosen the nut on the front (threaded) side of the bracket by 1/8" to 1/4", and
then tighten the nut on the back against the bracket. Check the tension on the
clutch lever and repeat the adjustment as needed.

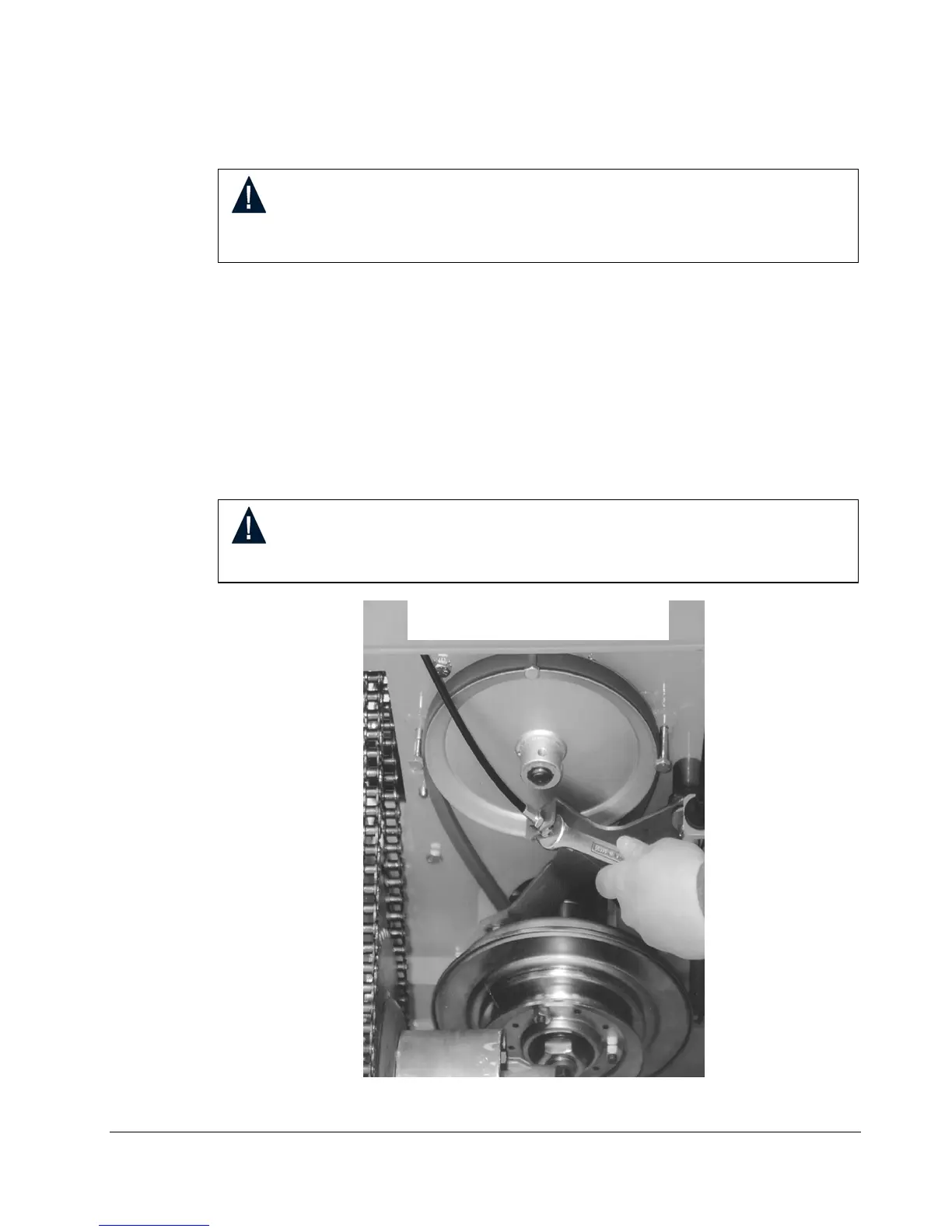

Figure 21
WARNING! Before performing any maintenance procedure, stop the
engine and disconnect the spark plug wire(s).
WARNING! If clutch is over tightened, machine may lurch forward when
shifting into gear. Use caution when shifting into gear.
Wheel Clutch Adjustment
