20 DR
®
PREMIER 26" ALL-TERRAIN MOWER
Figure 26
Carbon
Canister
Purge
Hose
Tank Hose
Bracket
Bolt

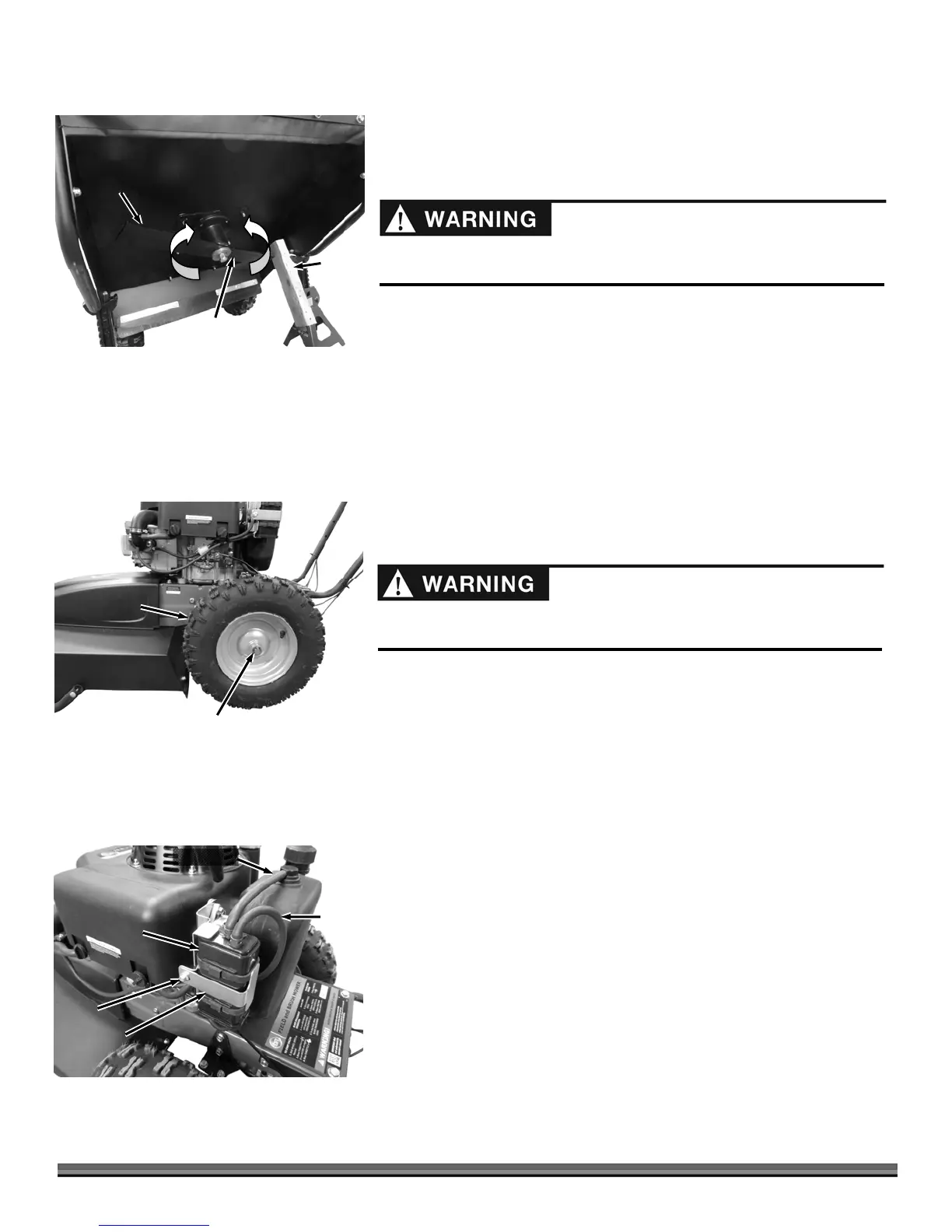

Removing and Replacing the Blade
Tools and Supplies needed:
15/16" Socket with 1/2" Drive Breaker Bar (Air Wrench preferred)
Gloves
Block of wood to brace the Blade (at least 2" thick)
1. Brace the Blade with a block of wood between the Blade and the Mower
Deck (Figure 24).
2. Remove the Blade Bolt (right-hand, regular thread) Lock Washer and Large
Flat Washer.
3. Remove the Blade.
4. Mount the new Blade, Large Flat Washer, Lock Washer, and Bolt.
Note: Be sure to position the Blade with the fins pointing up towards the Deck for it
to work properly.
Replacing the Wheels
Tools needed:
Needle Nose Pliers
Safety Goggles
1. Block the machine so the Wheel you are removing is off the ground (Figure
25).
2. Remove the Retaining Ring with the Pliers.
3. Remove the Washer and pull the Wheel off the Axle.
4. Replace the Wheel in the reverse order as above.
Note: Make sure the Retaining Ring in fully locked onto the Axle when installing
Wheels.
Replacing the Carbon Canister
Tools needed:
5/16" Wrench
Wire Cutters
Pliers
1. Pull the two hoses from the top of the Carbon Canister (Figure 26).
2. Remove the bolt that secures the Canister Bracket using a 5/16" Wrench.
3. Remove the Bracket and Canister.
4. Install a new Carbon Canister and secure with the Bracket and Bolt using a
5/16" Wrench.
Note: The Hoses MUST be installed onto the new Canister in the same location as
they were on the old Canister.
5. Install the Hoses at the top of the Canister.
Retaining Ring and Washer
Figure 25
Wheel
Fins
pointing up
Figure 24
Wood
Block
Loosen
Tighten
Blade
Use caution when pushing or pulling the wrench next to the blade. Wear
gloves; if the wrench slips off the bolt, you may be seriously injured.
Wear Safety Goggles when removing the Retaining Ring that secures the
Wheels. The Retaining Ring could snap towards you and could cause injury.
