DR ROTO-HOGTM User Manual

12 DR
®
ROTO-HOG™ POWER TILLER

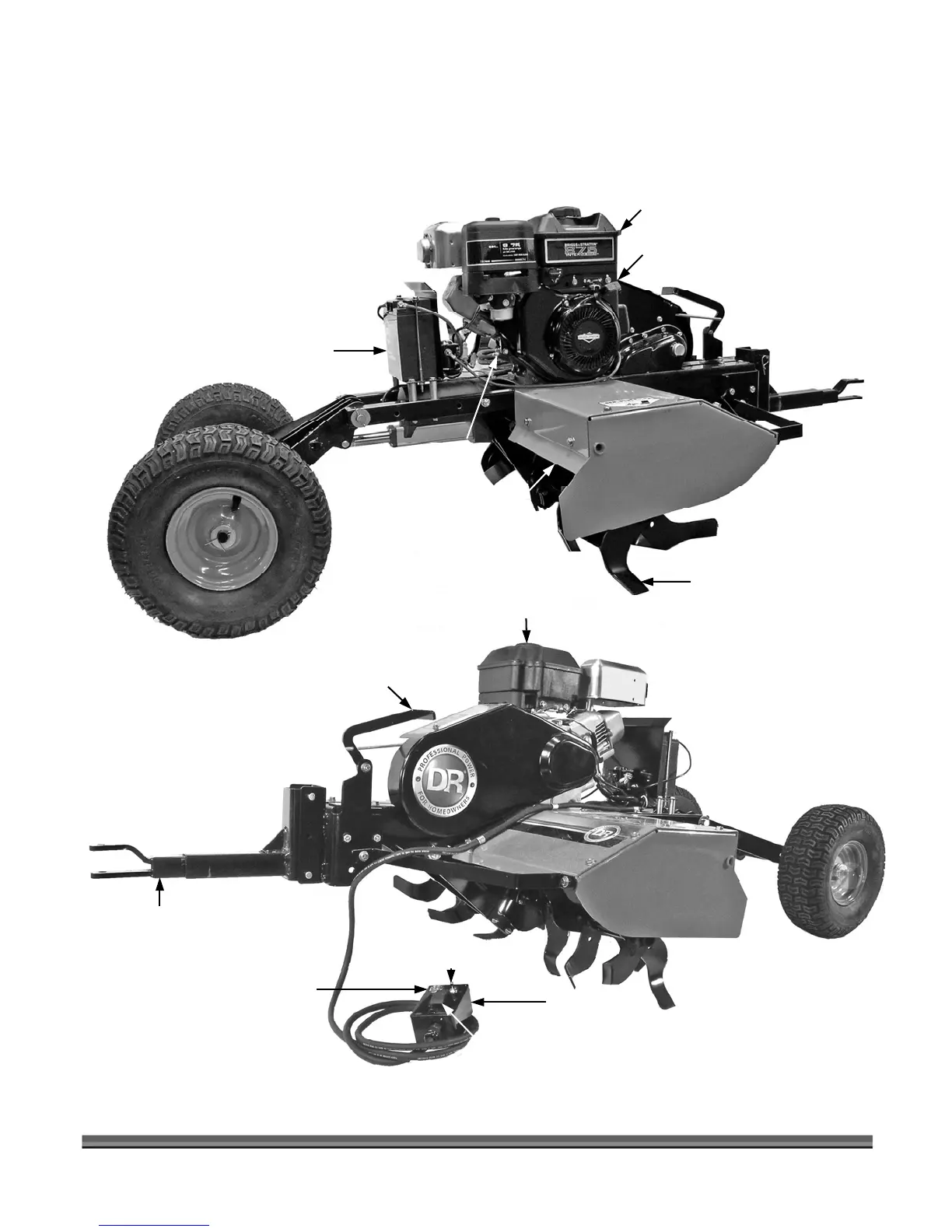

DR ROTO-HOG POWER TILLER Controls and Features
NOTE: The model shown in Figure 1 may look slightly different from your machine.
Figure 1
Tine Drive Clutch Lever
Briggs & Stratton Engine 875 Series
Manual Recoil Start Handle
Gas Fill
Electric-Starter Switch
Battery
SMOOTH-TRAK™ Hitch
Tines
Rear Debris Guard
Control Box
OPTIONAL Spreader
ON-OFF Switch
Tines Up-Down Switch
Oil Fill

DR ROTO-HOGTM Specifications

General

Engine	Briggs & Stratton 8.75 FPT, 206 CC, Single Cylinder
Approximate Run Time on a Tank of Fuel	90 minutes
Range	7" to 2"
Actuator Stroke	3.94"
Actuator Maximum Load	250 lbs.
Battery	12 Volt, 17AH
# of Cycles for Fully Charged Battery	400
Towing type	Pin Hitch
Ground Clearance in Transport Mode	2.75"
Height Adjustment	Electric Actuator
Length of Remote Control Cable	46"
Tine Size	12"
Number of Tines	24
Wheels	15" x 6.00"-6 NHS (14" x 5.5")
Gauge of Steel on Shroud	13
Gauge of Steel on Frame	12 Gauge, 1.5" Tubular Steel

Weight and Dimensions

Machine Size	39"w x 66"L (Transport), 35"H x 77"L (Lowest Position)
Machine Weight	259 lbs. Manual Start, 264 lbs. Electric Start
Tongue Weight	90 lbs. (Transport) 112 lbs. (Lowest Position)
Shipping Weight	310 lbs. Manual Start, 320 lbs. Electric Start
