DR ROTO-HOGTM User Manual

CALL TOLL-FREE 1-800-DR-OWNER 3
CHAPTER 2
GENERAL SAFETY RULES
READ THIS SAFETY
& OPERATING INSTRUCTIONS MANUAL BEFORE YOU USE THE DR ROTO-HOG
POWER TILLER. BECOME FAMILIAR WITH THE SERVICE RECOMMENDATIONS TO ENSURE THE BEST
PERFORMANCE FROM YOUR TILLER.

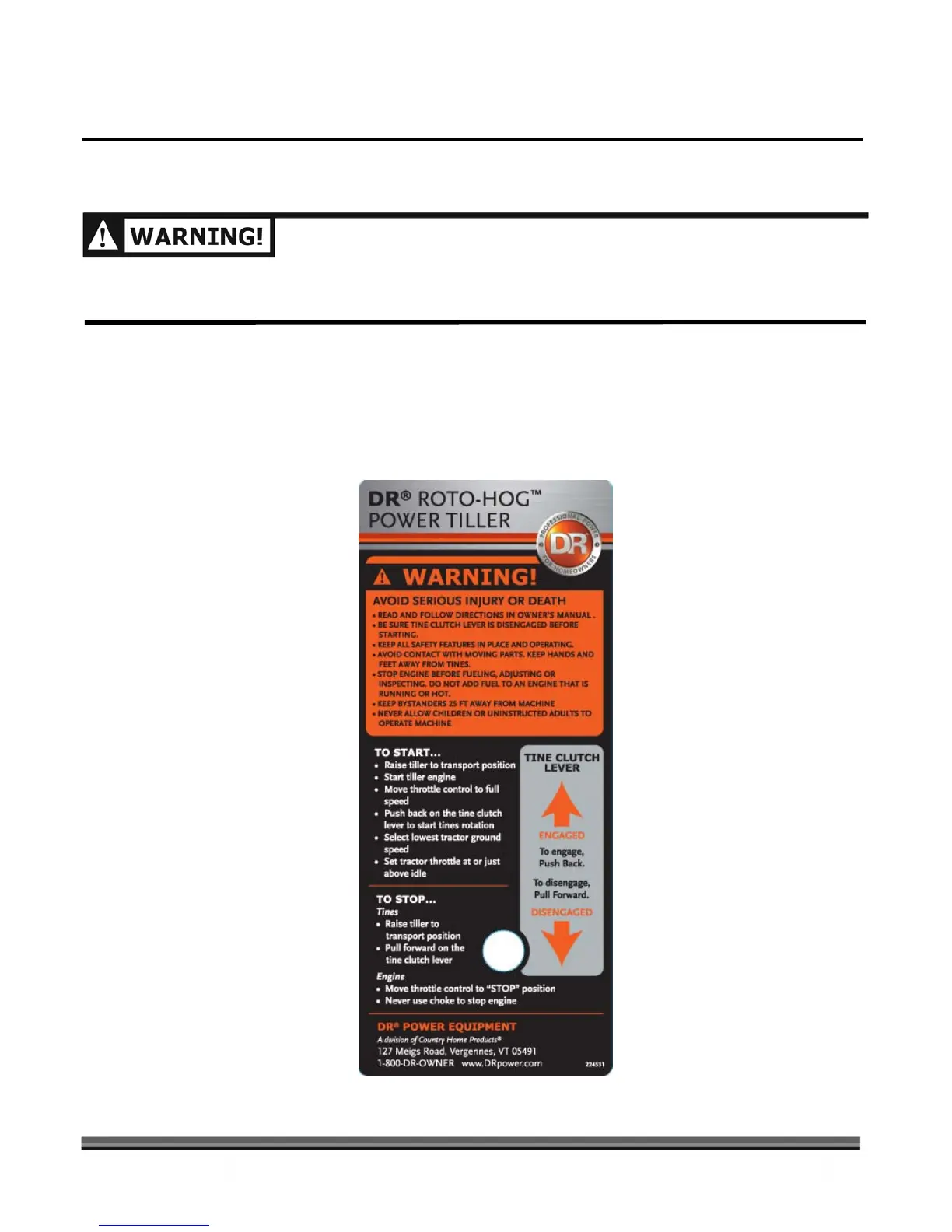

Labels
Your DR ROTO-HOG POWER TILLER carries prominent labels as reminders for its proper and safe use.
Shown below are copies of all the labels that appear on the equipment. Take a moment to study them and
make a note of their location on your DR ROTO-HOG POWER TILLER as you assemble and before
you
operate the machine. Replace damaged or missing safety and information labels immediately.
Read the instruction manual thoroughly and review this label before using the machine. #224531

DR ROTO-HOGTM Specifications

General

Engine	Briggs & Stratton 8.75 FPT, 206 CC, Single Cylinder
Approximate Run Time on a Tank of Fuel	90 minutes
Range	7" to 2"
Actuator Stroke	3.94"
Actuator Maximum Load	250 lbs.
Battery	12 Volt, 17AH
# of Cycles for Fully Charged Battery	400
Towing type	Pin Hitch
Ground Clearance in Transport Mode	2.75"
Height Adjustment	Electric Actuator
Length of Remote Control Cable	46"
Tine Size	12"
Number of Tines	24
Wheels	15" x 6.00"-6 NHS (14" x 5.5")
Gauge of Steel on Shroud	13
Gauge of Steel on Frame	12 Gauge, 1.5" Tubular Steel

Weight and Dimensions

Machine Size	39"w x 66"L (Transport), 35"H x 77"L (Lowest Position)
Machine Weight	259 lbs. Manual Start, 264 lbs. Electric Start
Tongue Weight	90 lbs. (Transport) 112 lbs. (Lowest Position)
Shipping Weight	310 lbs. Manual Start, 320 lbs. Electric Start
