Unpacking and Assembling the Machine
Your DR ROTO-HOG POWER TILLER shipped in one carton, completely assembled except for the Wheels,
Tow Bar, and Battery.
NOTE: Unpacking and assembling the DR ROTO-HOG POWER TILLER is a two-person job, as the Manual Start
Unit weighs 259 pounds and the Electric Start Unit weighs 264 pounds.
We recommend you have an extra
set of hands available before you begin.
Parts Supplied on Shipping Pallet:
• DR ROTO-HOG POWER TILLER
• Hardware Bag: (Located on the Gas Tank of the unit.)
- (6) Shear Pin, 3/8" x 1-3/4"
- (6) Hair Cotter Pin, 1/8" x 1-5/8"
- (1) Battery Charger
- (1) Alligator Clip Wire
- (2) Flat Washer, 3/4"
- (2) Cotter Pin, 3/16" x 2"
- (1) Channel Pin, 1/2"
- (1) Hair Cotter Pin, 5/32" x 3"
- (1) Safety
&
Operating Instructions Manual
- (1) Briggs & Stratton Engine Manual
- (1) Hook & Loop Strap
- (1) Battery Strap
- (2) Bolt, 1/4" x 7-1/2"
- (2) Lock Nut, 1/4"
- (1) Clevis Pin, 3/8" x 4"
- (1) Hair Cotter Pin, .08" x 1.58"
• (2) Wheels
• Tow Bar w/SMOOTH-TRAK™ Hitch
• Battery w/Battery Bar
Opening the Shipping Carton
Tool Needed:
• Pliers
• Knife
• (2) 7/16" Wrench
• 1/2" Wrench or Socket
• Hammer or Mallet
• Gloves
• (2) 5/16" Wrench
STABILIZE THE SHIPPING CONTAINER ON A FLAT SURFACE BEFORE ATTEMPTING TO UNPACK AND
ASSEMBLE THE MACHINE.

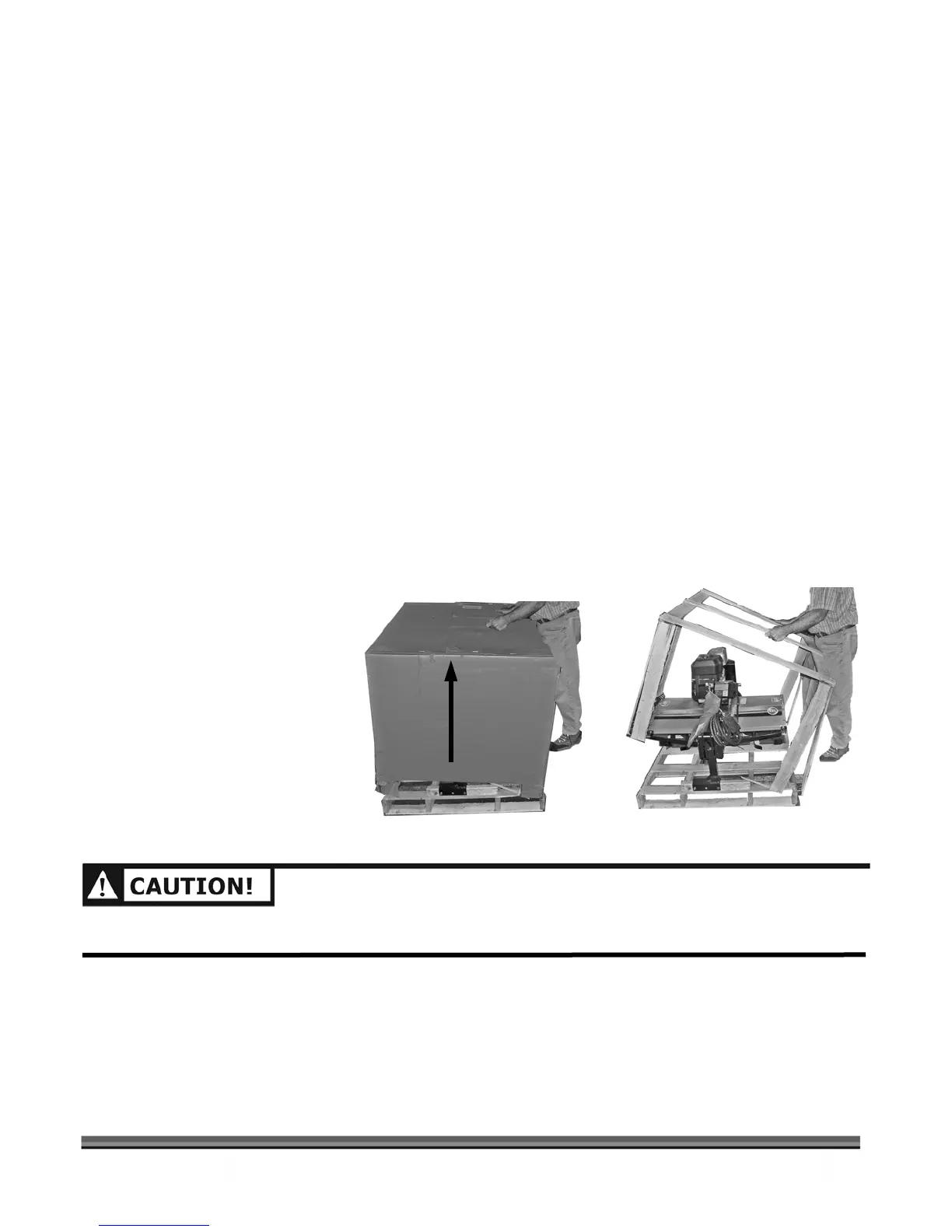

1. Using Pliers, carefully remove the staples from the bottom corners of the cardboard box and lift it off the
pallet (Figure 2). Be careful of the staples; they are sharp.
2. Using a Hammer or Mallet, remove the top and sides of the shipping crate (Figure 3).
3. Cut the Zip-Ties from around the Tires and Battery and remove them from the shipping pallet.
4. Remove the Hardware Bag from on top of the Gas Tank of the machine.
Figure 2 Figure 3
