Assembly & Operating Instructions 16
To Reassemble the Mow-Ball
™
Support Assembly
WARNING! Before performing any maintenance procedure, the engine should be stopped
and the spark plug wire disconnected.
Caution: Improper installation may cause damage to the bearings. Please follow these
directions carefully.

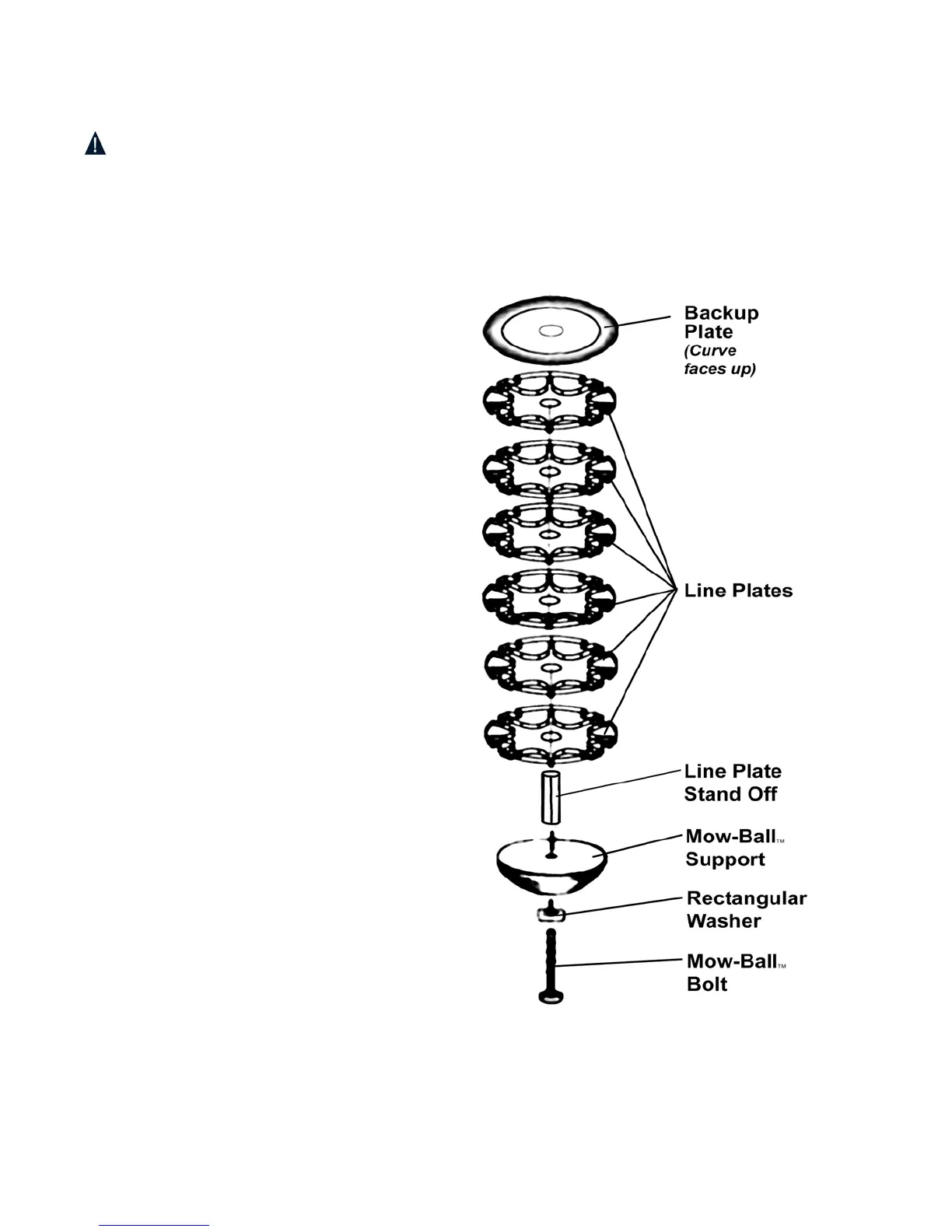

Reassemble the components in the order shown
in Figure 22.
• The backup plate should be positioned with
the curve facing up.
• The line plates stack on top of one another
with the bumps on the bottom locking into
the grooves on the top of each plate.
• The head of the Mow-Ball
™
bolt should sit
in the groove of the rectangular washer at
the bottom of the Mow-Ball
™
Support.
Hold the bolt head in place with one finger
and turn the Mow-Ball
™
Support assembly
clockwise until it's finger tight.
Figure 22
