DR Trimmer/Mower Sprint - Stone Guard and Bottom Shield Removal

DR
®
TRIMMER/MOWER
™
Safety & Operating Instructions 17

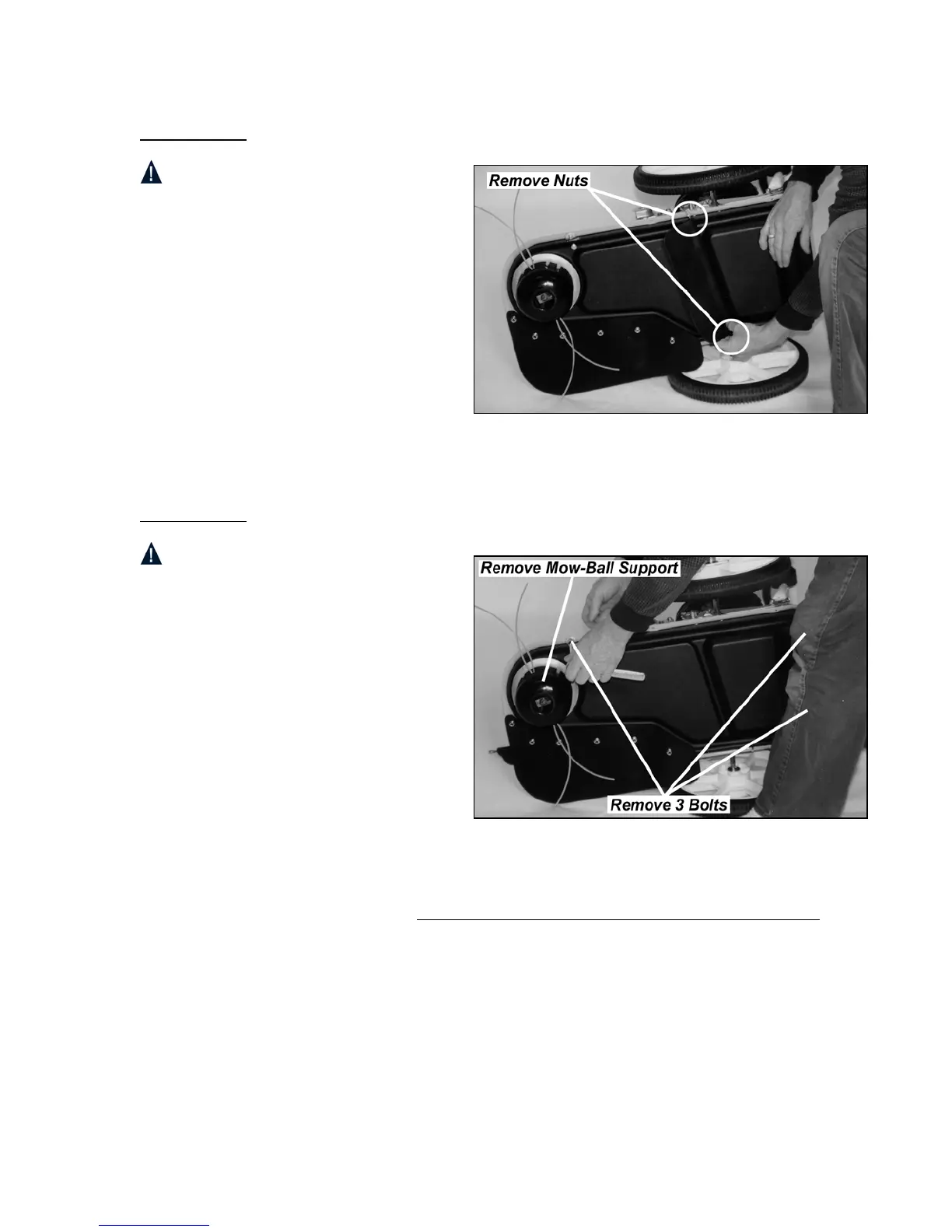

To Remove the Stone Guard Flap
Tools Needed: • 3/8" wrench or socket
WARNING! Before performing any
maintenance procedure, the engine
should be stopped and the spark plug wire
disconnected.
1. Remove the nuts on either side of the
stone guard and drop it from the frame.
2. Keep the nuts and bolts together with
the stone guard.
To Remove the Bottom Shield
Tools Needed: • 7/16" wrench or socket
WARNING! Before performing any
maintenance procedure, the engine
should be stopped and the spark plug wire
disconnected.
Note: You do not need to remove the
side shield or any of its hardware when
removing the bottom shield.
1. Remove the Mow-Ball
™
Support
Assembly. See page 15.
2. Remove the two mounting bolts and
washers at the rear of the frame.
3. Remove the third mounting bolt and
washer from the front of the frame, on
the outer edge, near the bearing housing.
4. Slide the bottom shield out from under the lip of the side shield and remove.
When reinstalling the bottom shield, be sure you tuck it under the lip of the side shield first, then
finish positioning it and mount the hardware.
Figure 23
Figure 24
