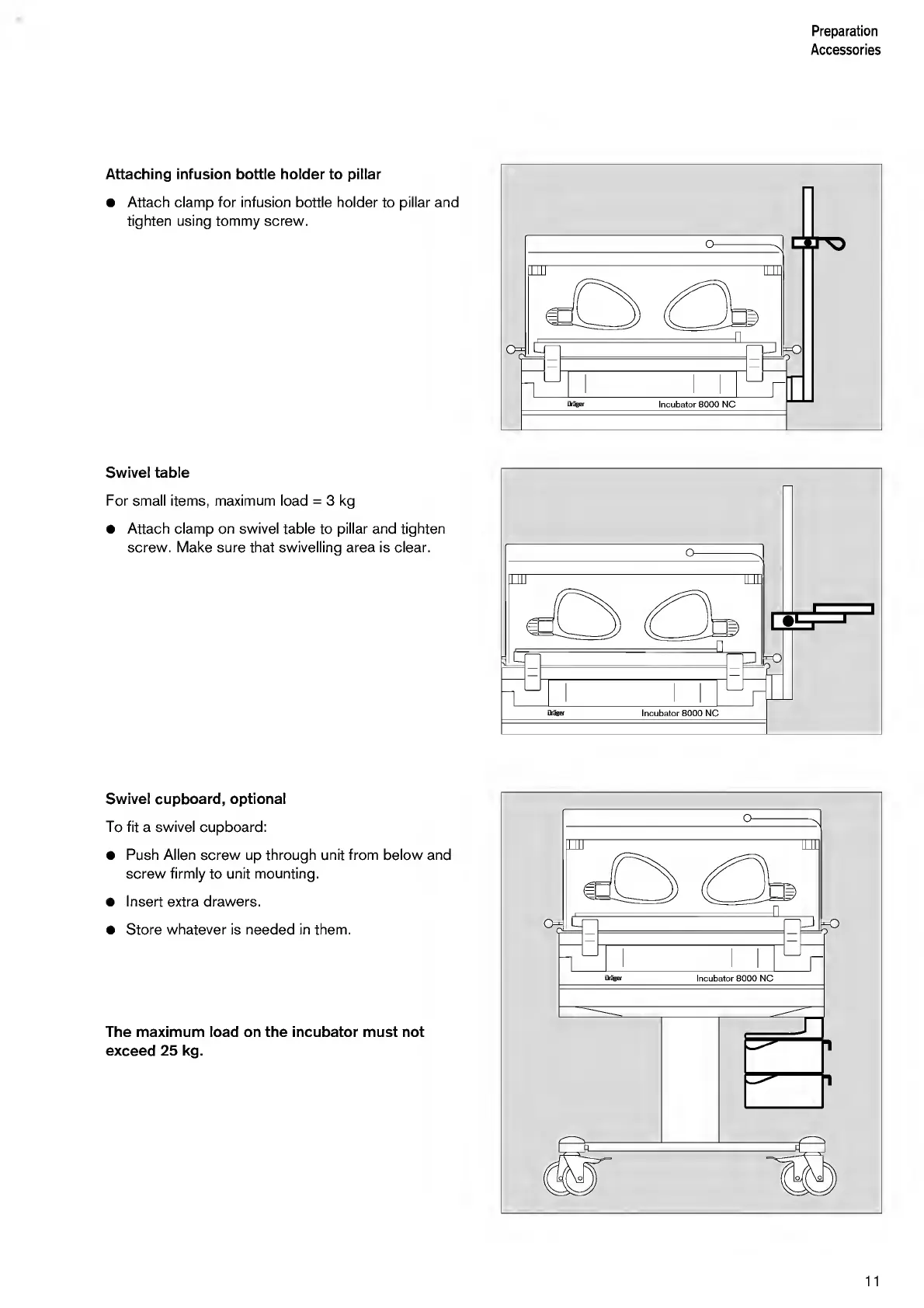

Dräger 8000 NC - Page 11

Preparation
Accessories
Attaching infusion bottle holder to pillar
• Attach clamp for infusion bottle holder to pillar and
tighten using tommy screw.
Swivel table
For small items, maximum load = 3 kg
• Attach clamp on swivel table to pillar and tighten
screw. Make sure that swivelling area is clear.
Swivel cupboard, optional
To fit a swivel cupboard:
• Push Allen screw up through unit from below and
screw firmly to unit mounting.
• Insert extra drawers.
• Store whatever is needed in them.
The maximum load on the incubator must not
exceed 25 kg.
11
