INFINITY COCKPIT QUICK REFERENCE GUIDE |7
THIS GUIDE IS INTENDED
FOR REFERENCE
ONLY. REFER
TO
INSTRUCTIONS FOR USE
MANUAL.ADDITIONAL INFORMATION
Docking and Transport, Power &
Frequently Used Keys

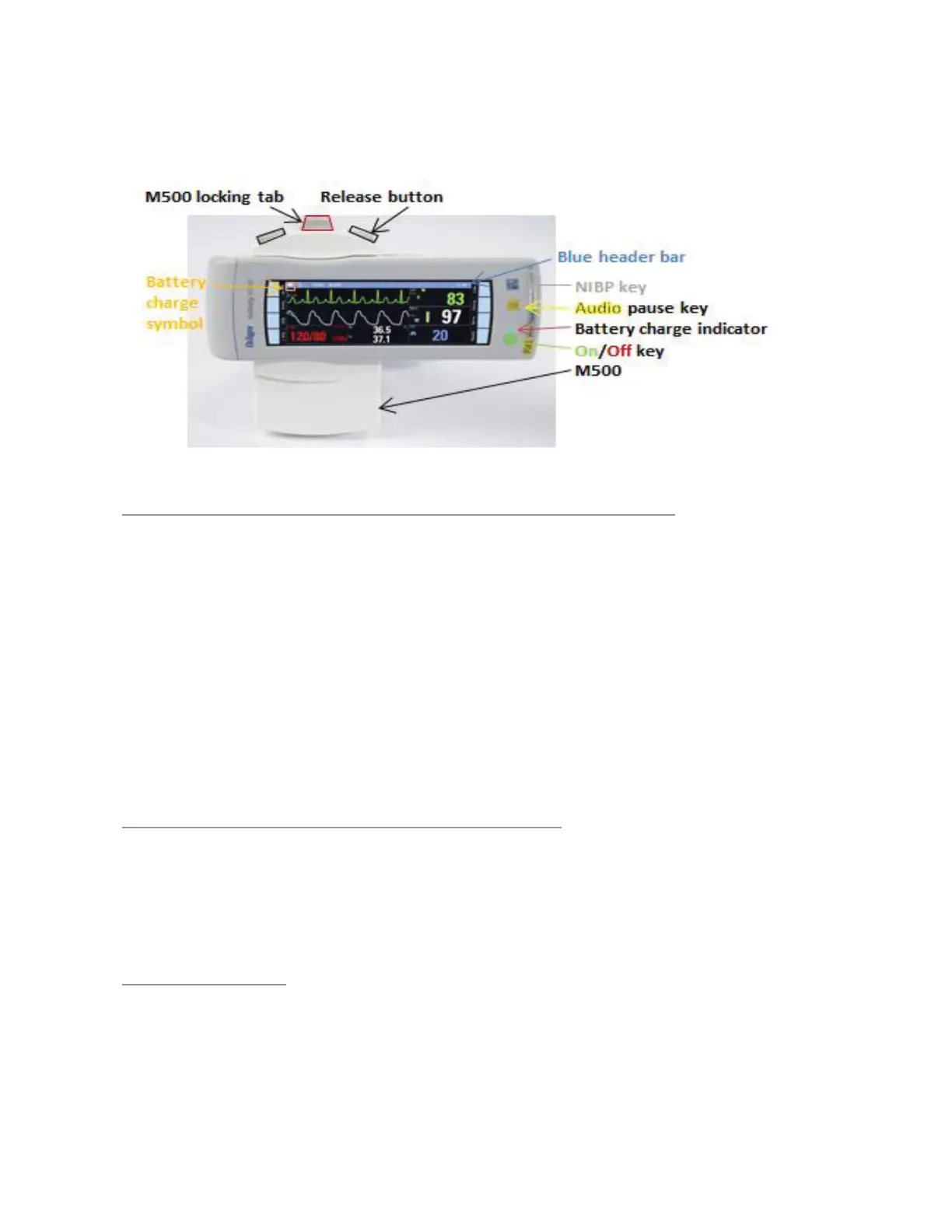

M500 DOCKING STATION WITH M540 AND COCKPIT
1. M500 secures and powers the M540 monitor
2. M500 connects M540 to the Cockpit and the Infinity network
that may include an Infinity Central Station (ICS), a network re-
corder, and a network printer.
3. M540 facilitates transport of patient when undocked, by main-
taining all patient connections and alarm settings.
4. M540 when configured as wireless can send information to the
ICS over a Wi-Fi network.
TO UNDOCK M540 (release for transport)
1. Push locking tab toward the back of M500
2. While holding the M540 firmly with one hand press one of the
release buttons on M500 and remove from M500
TO DOCK M540
1. Align curved portions of M540 and M500
2. Press M540 into M500 until it clicks in place.
3. Push the locking tab toward the front of M500.
