Dräger Infinity Cockpit C700 - Frequently Used Key Operations

© 2015 Draeger Medic al , Inc .
INFINITY COCKPIT QUICK REFERENCE GUIDE |8
THIS GUIDE IS INTENDED FOR REFERENCE ONLY. REFER TO INSTRUCTIONS FOR USE MANUAL.ADDITIONAL INFORMATION

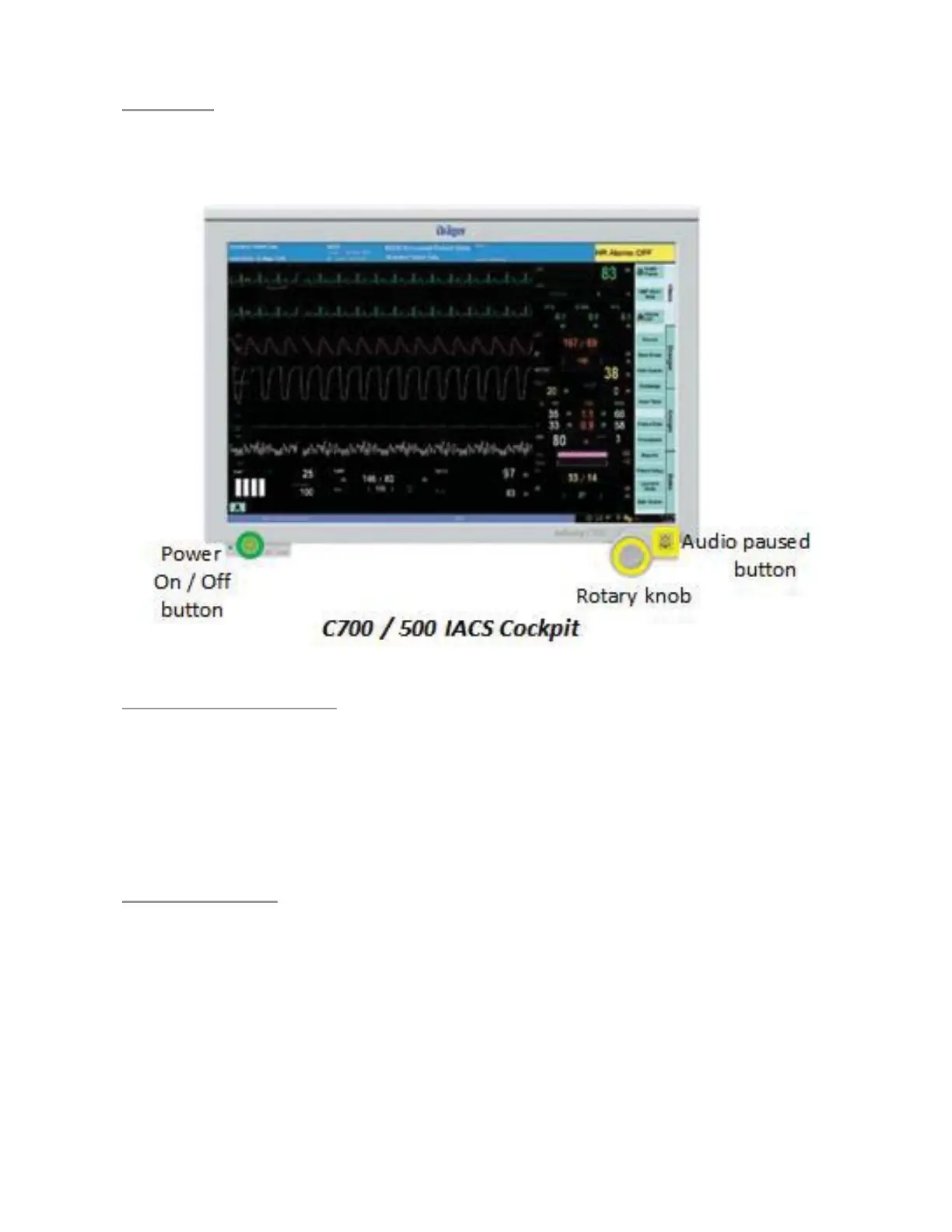

COCKPIT
Refers to the C500/C700 medical cockpit. The main user interface
for the IACS
TO POWER ON/OFF
1. Press the Power On/Off key
2. Select Shutdown inside the dialog window. The message
3. System is shutting down appears on the screen while the
4. Infinity Medical Cockpit is being powered down.
ROTARY KNOB
Navigates through menus and tables to define settings
1. Touch a Parameter box or Function key to display a menu.
Turn the Rotary knob to the left or right to increase or de-
crease a numeric value, to scroll down a list, or navigate
through a menu.
2. Press the Rotary knob to accept a selected setting
.
