Parameters
TO ACCESS ANY PARAMETER SETTINGS
1. Select the desired parameter box.
OR, if desired parameter is not visible
2. Select Sensor parameters… on Main menu bar.
3. Select desired parameter tab from tabs across top of dialog box.
ECG
TO ADJUST PULSE TONE ON/OFF
1. Select Heart rate parameter box.
2. At Pulse tone volume %, select button.
3. Use rotary knob to dial and select desired setting.
4. Click rotary knob to confirm.
TO CHANGE LEADS
1. Select Heart rate parameter box.
2. At Leads select 1
st
, 2
nd
, or 3
rd
button to choose which dis-
played channel on screen to change.
3. Make selection from available leads
4. Click rotary knob to confirm.
Alarm settings

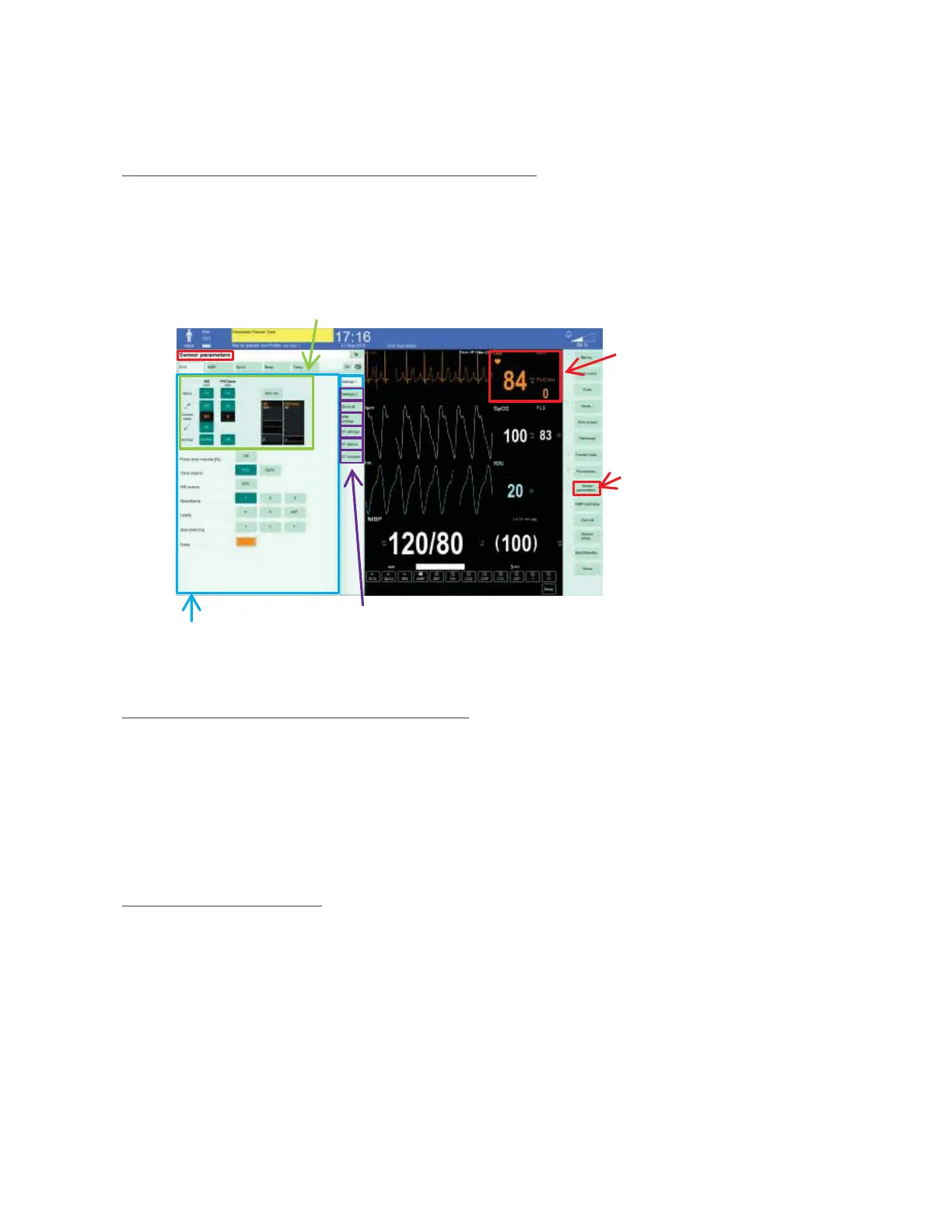

ECG Settings 1 Additional ECG settings tabs
tab dialog box
Touch desired
parameter box
Or
Touch Sensor
parameter menu
bar key and then
top tab for desired
parameter
