5. Use Rotary knob to move parameter to new position, click.
6. Screen will refresh with new parameter priority.
Parameter Boxes
You can access parameter setup menus by scrolling a blue box
through the parameter boxes using the rotary knob and selecting
the parameter you wish to configure.
HR/ECG
Using the Rotary Knob scroll left or right on the Main Screen moving
the blue highlight box to the HR parameter box, click.
TO CHANGE DISPLAYED LEADS
1. Use Rotary knob to highlight HR parameter box, click.
2. Use Rotary knob to highlight Lead Setup, click.
3. Use Rotary knob to highlight Channel 1, click.
4. Use Rotary knob to highlight desired lead, click.
TO INCREASE/DECREASE LEAD SIZE
1. Use Rotary knob to highlight HR parameter box, click.
2. Use Rotary knob to select Size ECG, click
3. Use Rotary knob to select Size All or Channel you wish to ad-
just, click.
4. Use Rotary knob to select desired Size, click

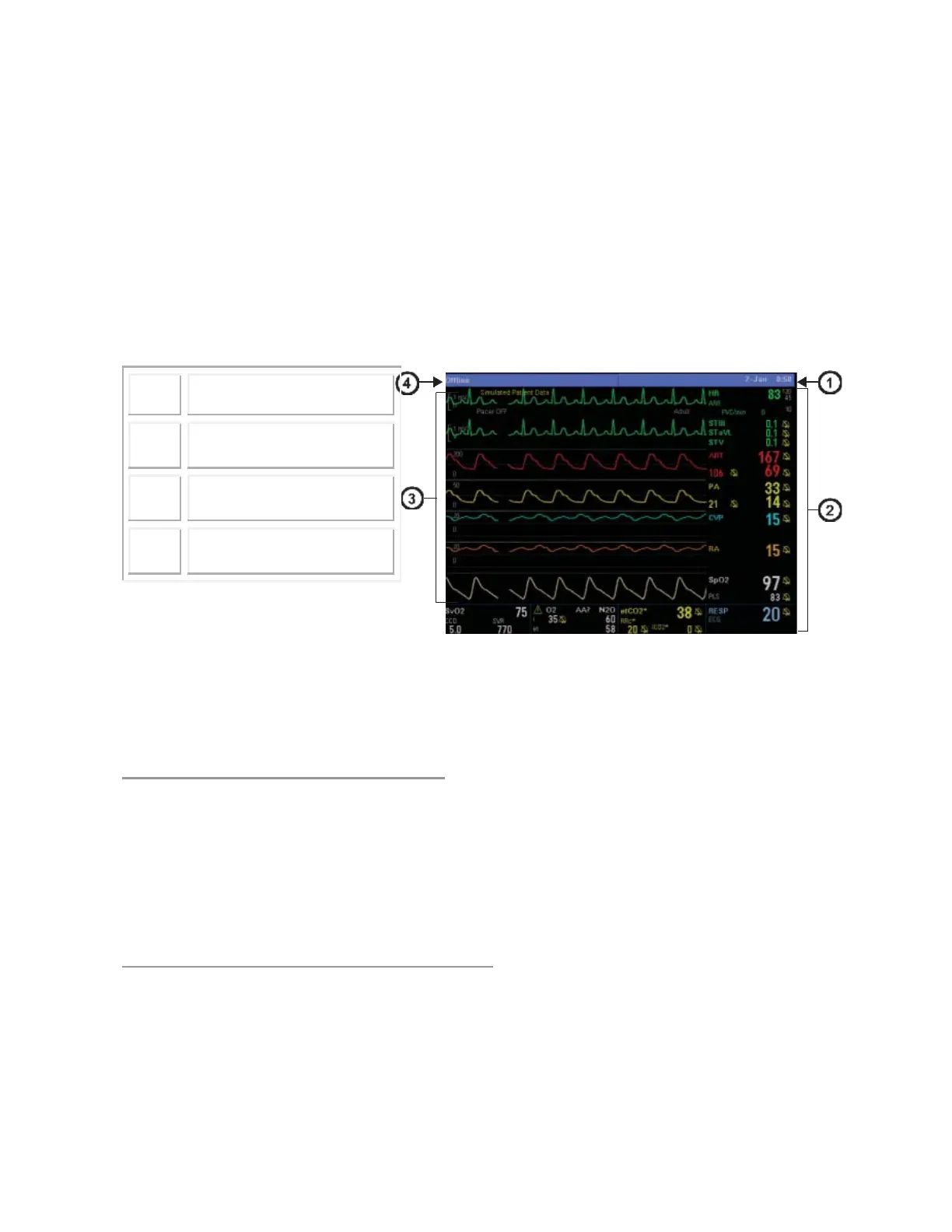

1
Network message
2
Parameter boxes
3
Waveforms
4
Local message
