Docking, Transport & Power
PICK AND GO TRANSPORT (Delta/Delta XL only)
- The Pick and Go patient transport system allows the monitor
to travel with the patient to different care stations within the
hospital.
- By uploading setups from the IDS at the new care station, the
monitor adapts to its new clinical “home” (OR, ICU, CCU, etc.)
while retaining patient data.
UN-DOCKING & RE-DOCKING THE MONITOR
1. Hold the monitor firmly by its handle. Slide the lever on the
docking station to the left to disengage. The monitor auto-
matically switches to battery power.
2. Continue to move the lever to the left until it clicks. Use both
hands to tilt the monitor forward and lift it off the IDS or Dock-
ing Station.
3. Reverse the process to re-dock, noting the green Battery Indi-
cator light is lit on lower left hand corner of monitor.

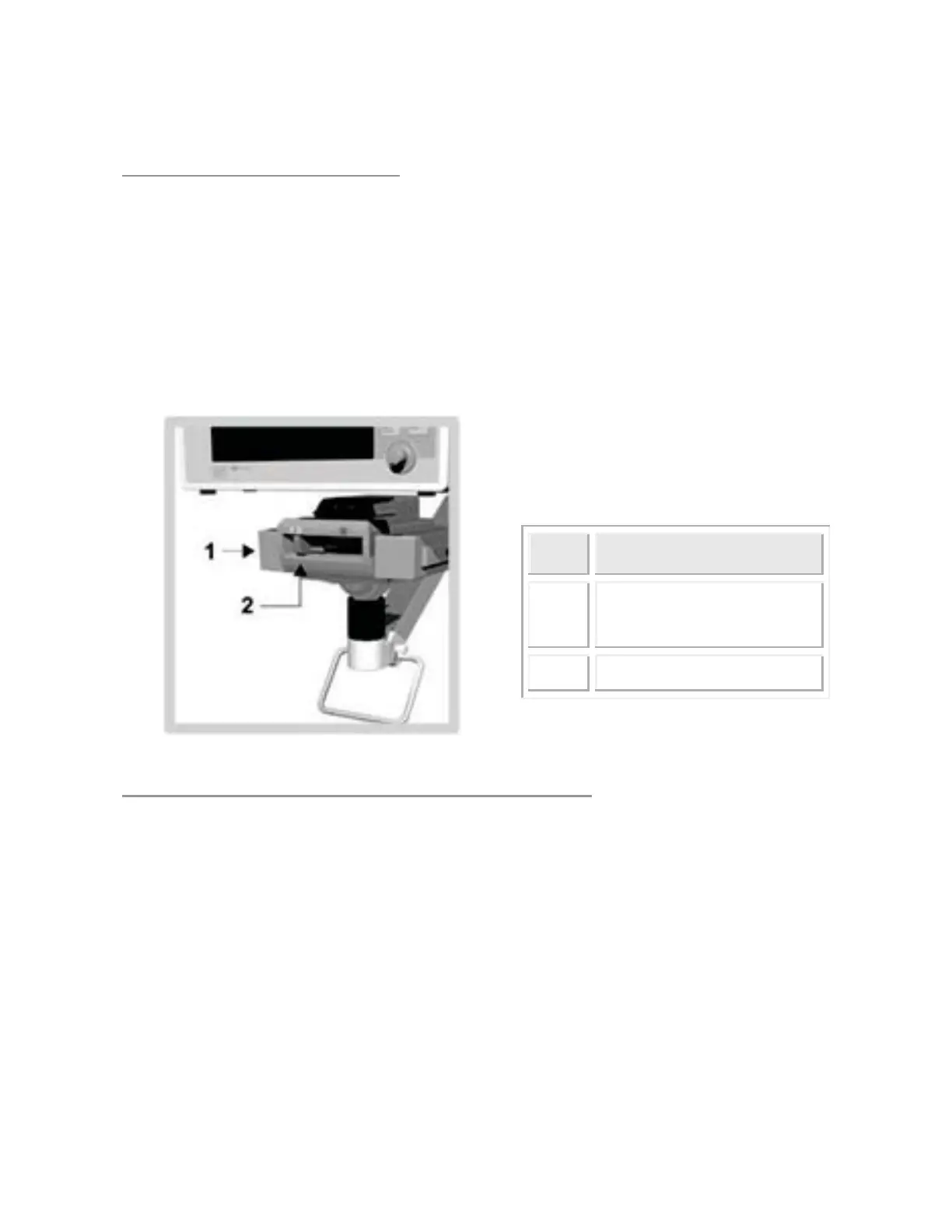

Nos.
Description
1
Infinity Docking Sta-
tion
2
Lever

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
