Electrode Colors*
IEC
AHA/US
Electrode Location
L
Yellow
LA
Black
Left arm
F
Green
LL
Red
Left leg
R
Red
RA
White
Right arm
N
Black
RL
Green
Right leg (neutral)
C
White
V
Brown
Moveable chest
C+
Gray & White
V+
Gray & Brown
2
nd
M oveable chest

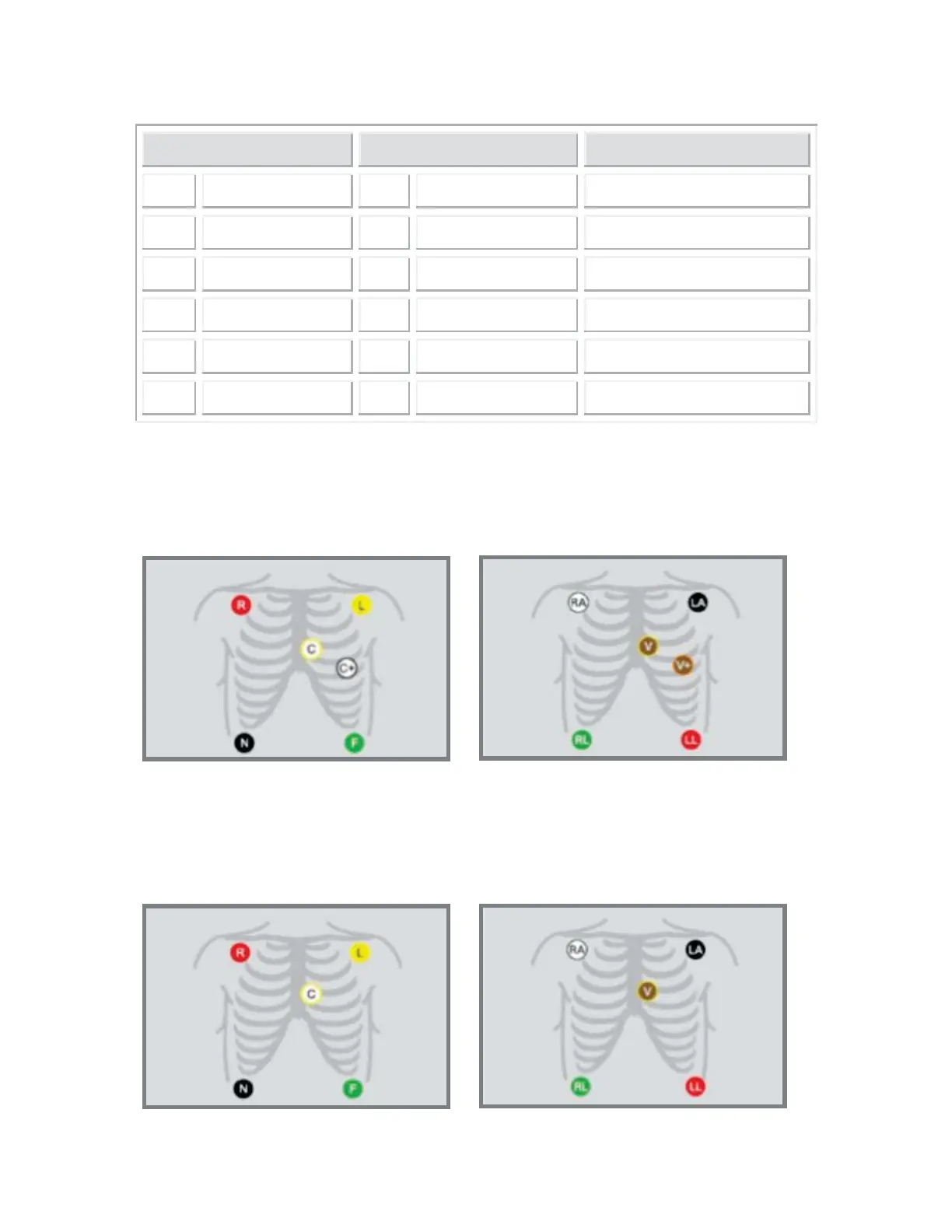

Standard 6 Lead Configuration
IEC AH A
Standard 5 Lead Configuration
IEC AH A

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
