Dräger Infinity M540 User Manual

Instructions for use – Infinity Acute Care System – Monitoring Applications VG6.n 303
Invasive blood pressure (IBP)
.Hemo2 pod

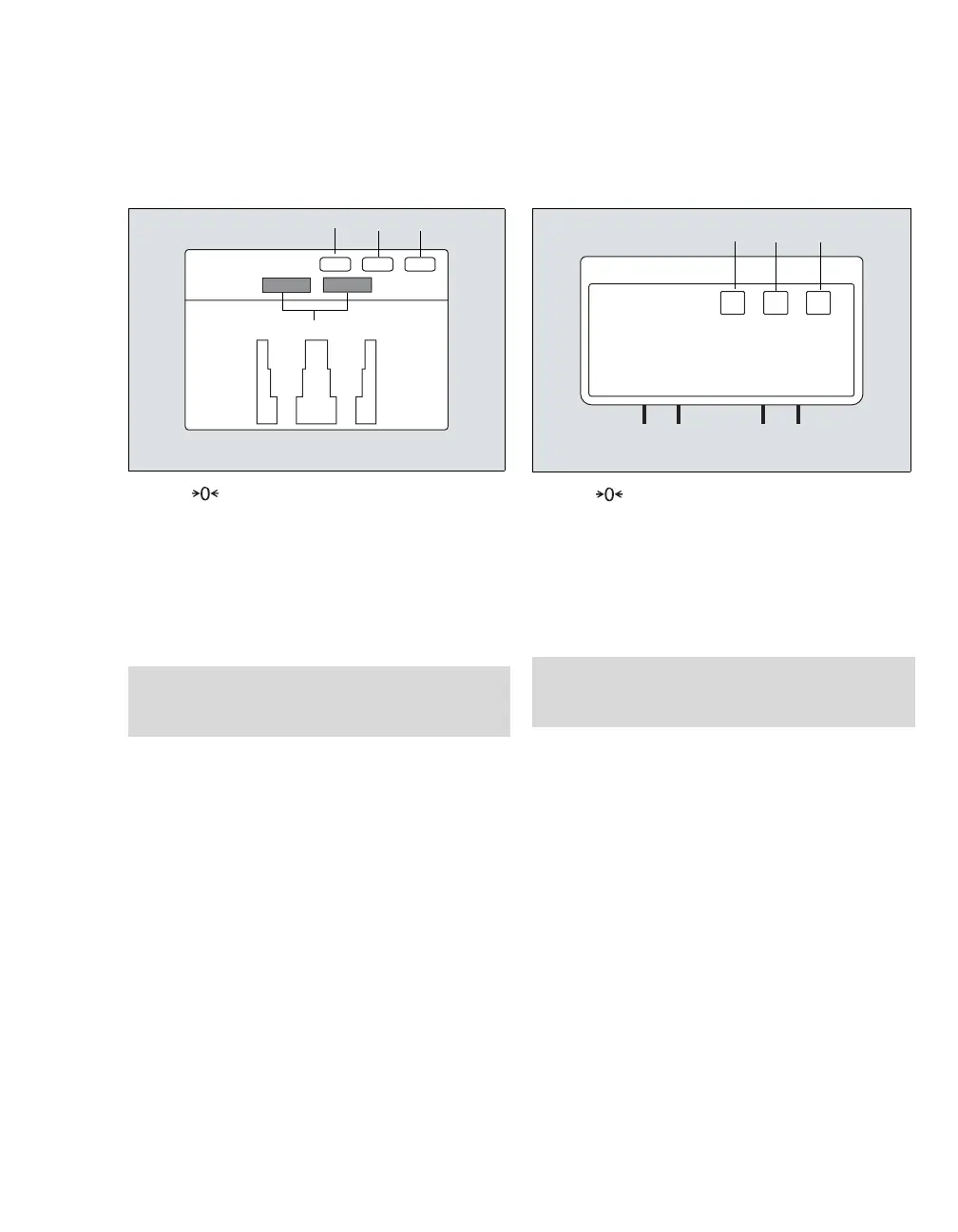

This pod measures up to two pressures, cardiac
output, and temperature.
A Key for zeroing all pressures
simultaneously (see page 312)
B Key for starting a cardiac output measurement
C Key for starting wedge pressure measurements
D Pressure label windows
E Transducer slots
MPod – QuadHemo
This pod measures up to four pressures, cardiac
output, and temperature.
F Key for zeroing all pressures
simultaneously (see page 312)
G Key for starting a cardiac output measurement
H Key for starting wedge pressure measurements
I Intermediate cables for attaching the
transducers
339
NOTE
The ports for temperature and cardiac output are
located on the side of the hemodynamic pod.
ABC
D
E
E
340
NOTE
The ports for temperature and cardiac output are
located on the side of the hemodynamic pod.
F
GH
I
I
