Operating concept
The IACS components

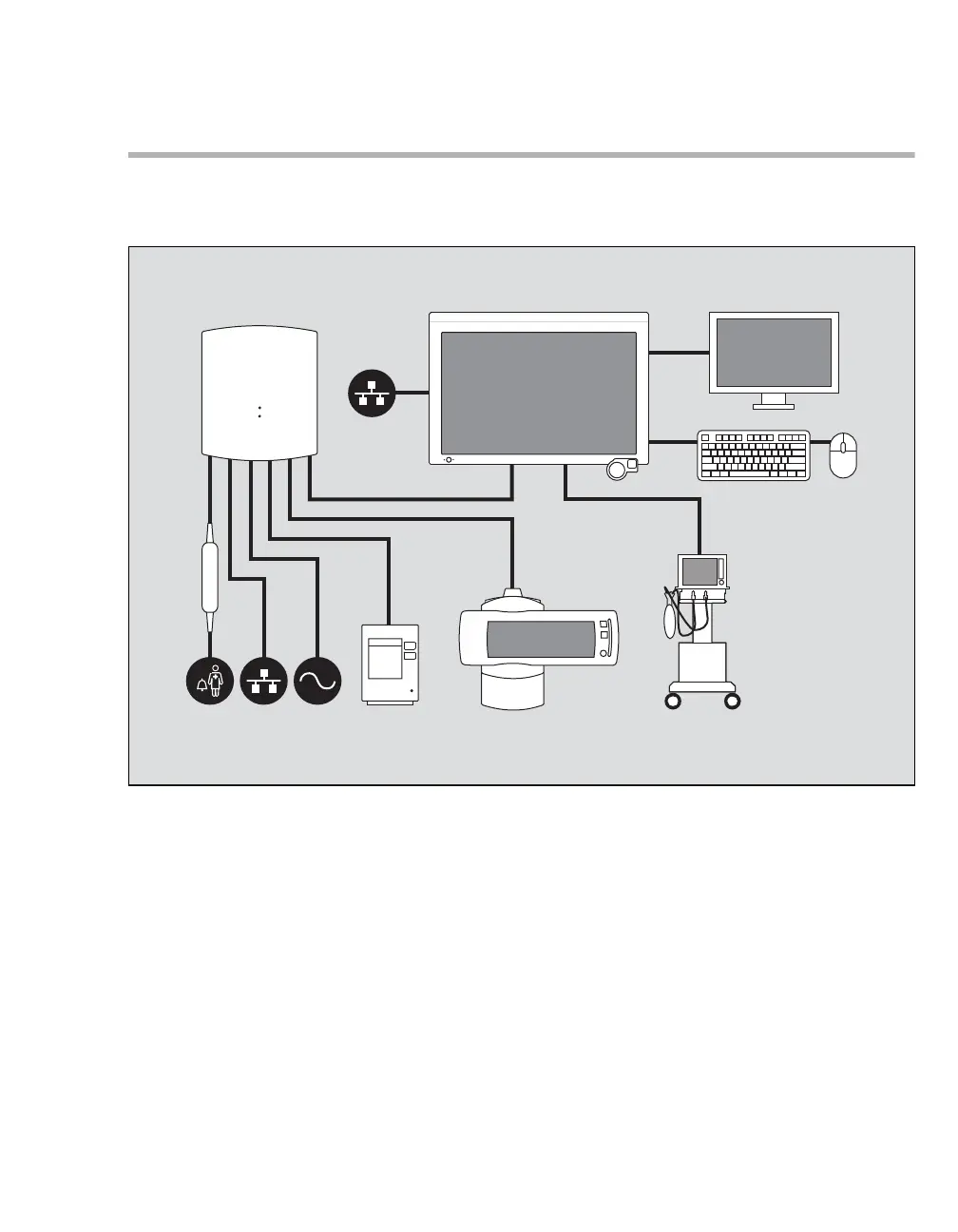

The following diagram shows a possible IACS
configuration.
A C500/C700
B DVI cable
C Secondary display (option)
D USB cable
E Keyboard and mouse (option)
F Device connectivity cable (option)
G M540 patient monitor
H M500 docking station
I System cables
J *R50N recorder (option)
*Not available in the EU
K AC power
L Infinity network
M Infinity MCable – Nurse call (option)
N P2500 / PS250
O Hospital network
P Ethernet cable
005
A
C
O
N
B
E
F
G
H
I
I
D
K
L
J
MPP
