Care
Disassembling the Patient Valve
Operating Instructions Oxylog 2000, SW 3.n
41

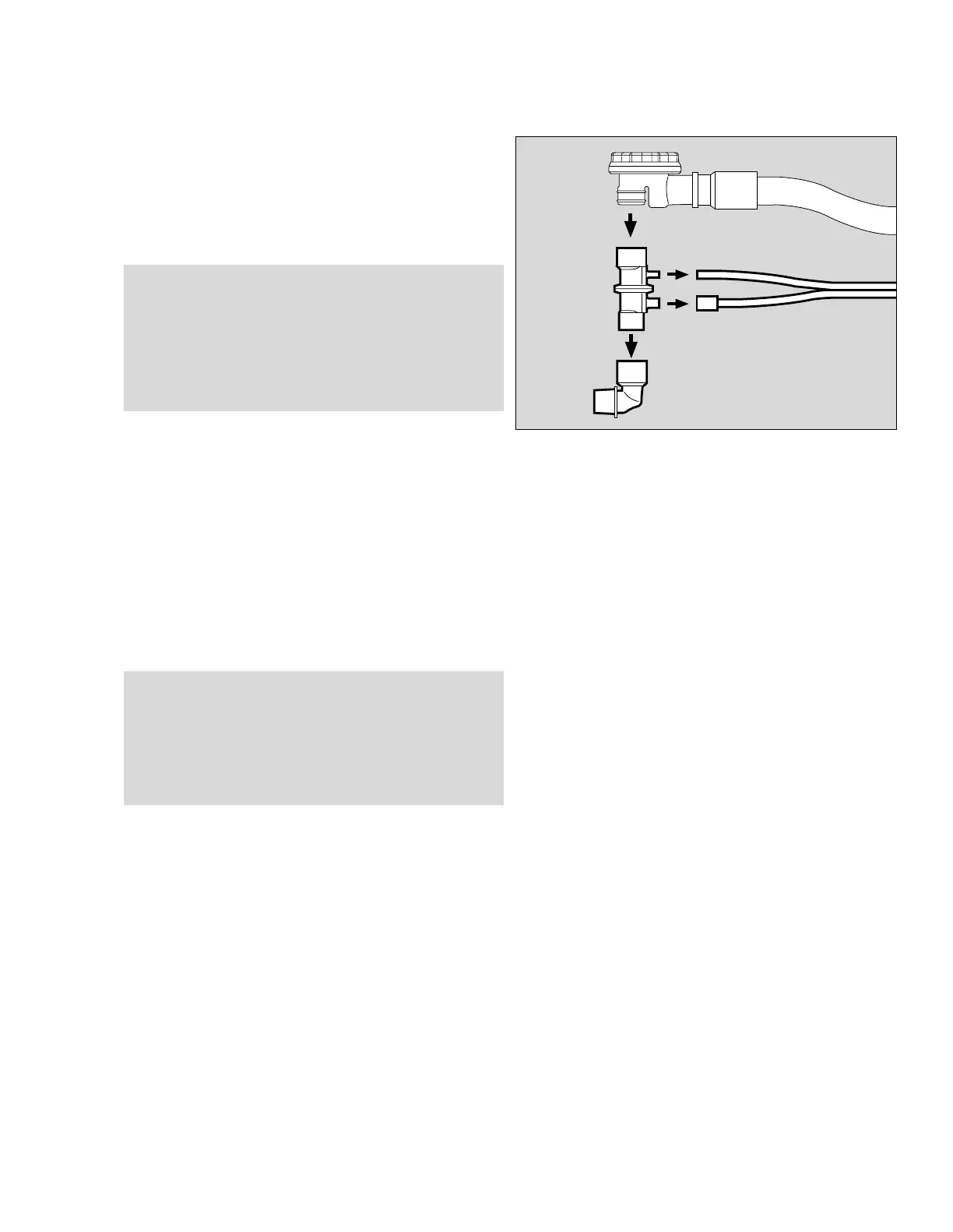

4 Remove pressure sensing hoses for flow
measurement from flow sensor.
5 Pull flow sensor from ventilator valve - do not twist
while removing.
6 Pull elbow connector from flow sensor.
● Detach patient valve from patient circuit.
Disassembling the patient valve
1 Turn cover 90 º counterclockwise = disengage
and remove.
2 Remove silicone diaphragm.
● Do not further disassemble the patient valve!
CAUTION !
Do not allow any foreign objects to enter the
patient valve.
Do not damage the silicone diaphragm or other
parts.
CAUTION !
Do not allow any foreign objects to enter the flow
sensor.
Do not use pressurized air for cleaning.
The orifice membrane inside the flow sensor may
become damaged.
4
5
6
01729033
