Dräger Oxylog 2000 - Positioning and Gas Supply Connection

Positioning the Oxylog 2000
For stationary use
● Place on a level surface where it cannot slide or fall,
or
● hang from the headboard of a bed,
or
● hang from a wall rail.

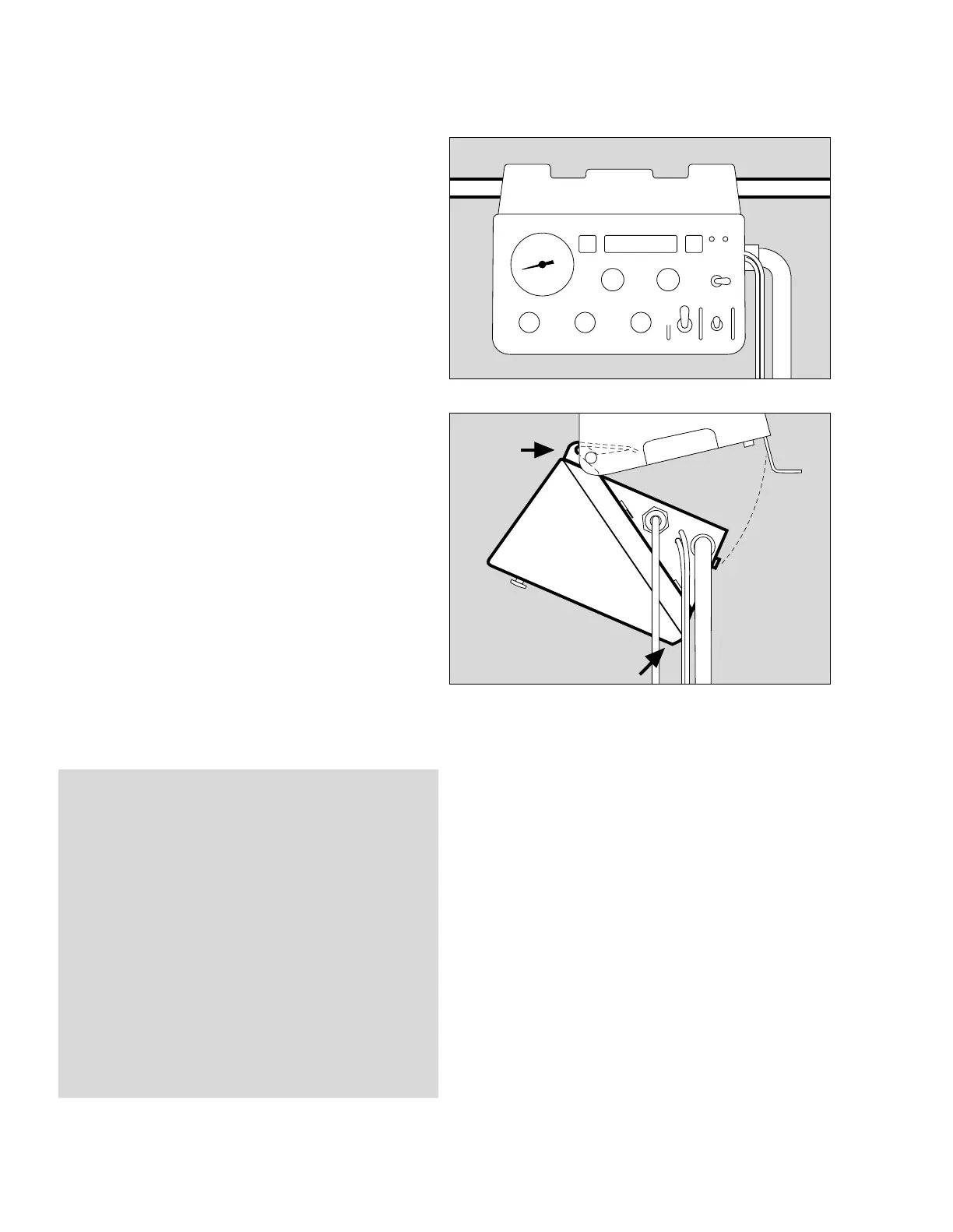

For mobile use in ambulances
● Attach Oxylog 2000 to ventilator mount bracket
(accessory 84 12 069).
1 Hang ventilator handle on bar of mounting bracket.
2 Swing rear of ventilator up to engage locking
mechanism.
To remove ventilator:
3 Push lever from below to disengage bracket.
Connecting Gas Supply
WARNING !
• Always use extreme caution when using oxygen!
• Oxygen intensely supports any burning!
No smoking, no open fire in areas where oxygen
is in use!
• Always provide adequate ventilation in order to
maintain ambient O2 concentrations < 24 %.
• Use only officially approved gas cylinders that
comply with federal and local regulations.
Always secure gas cylinders against tipping, do
not expose to extreme heat.
• Do not use oil or grease on O2 equipment such
as tank valves or pressure regulators. Do not
touch with oily hands. Risk of fire!
• Open and close valves slowly, with smooth turns.
Do not use any tools.
Preparation
Positioning the Oxylog 2000
Connecting Gas Supply
