Dräger Polytron Pulsar 2

AMS operator screens and help texts
47

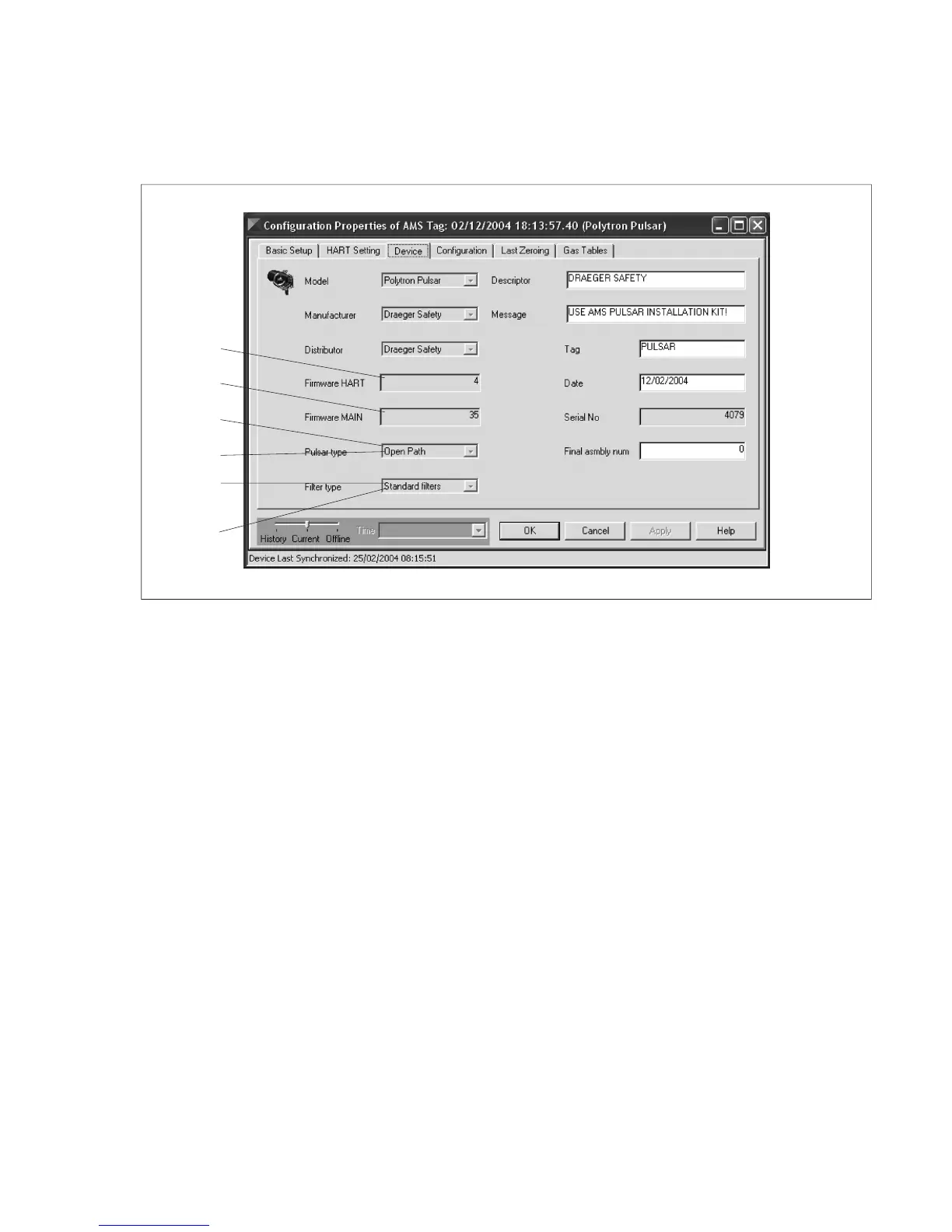

Figure 20 Configuration Properties of AMS Tag (Device)
1 Ethylene filters: Version of Dräger Polytron Pulsar 2 optimized
to measure Ethylene (Ethene) in the beam path.
2 Standard filters: Version of Dräger Polytron Pulsar 2 optimized
to measure most common hydrocarbons, including the alkane
series, but not Ethylene (Ethene).
3 Duct-mounted: This Dräger Polytron Pulsar is a version to be
installed within ventilation ducts. In this special situation any
gas is expected to be uniformly diluted across the beam path.
The Dräger Polytron Pulsar 2 can then be configured to output
0-100 %LFL.
4 Open Path: This is the standard configuration of the
Dräger Polytron Pulsar 2, not the Duct-Mounted version.
5 Issue of the Receiver Main Processor firmware (23 = version
2.3 etc). This processor is used for the
Dräger Polytron Pulsar 2s measurement functions. Unlike the
separate processor used for HART communications it is field-
programmable for future upgrade.
6 Issue of the Receiver HART Processor firmware (23 = version
2.3 etc). This processor is used for the
Dräger Polytron Pulsar 2s HART communication. It is separate
from the processor used for Dräger Polytron Pulsar 2s meas-
urement functions. It is fixed at the time of manufacture.
3
2
1
4
5
6
02623892.eps
