7.5. TOUT: Testing the Output Relays
Push the F1 button to nevigate through the main
menu until “TOUT” is displayed "Test output
relay"
Code: X = H relay is energised
X = L relay is de-energised
Using the F2 button will change the current
status of the selected relay.
T1=Test relay 1
T2=Test relay 2
T3=Test relay 3
T4=Test relay 4
HU= Horn relay
ER= Fault relay
F2
2 xT
T 4 x
F1
F2
F2F1
F1
F2

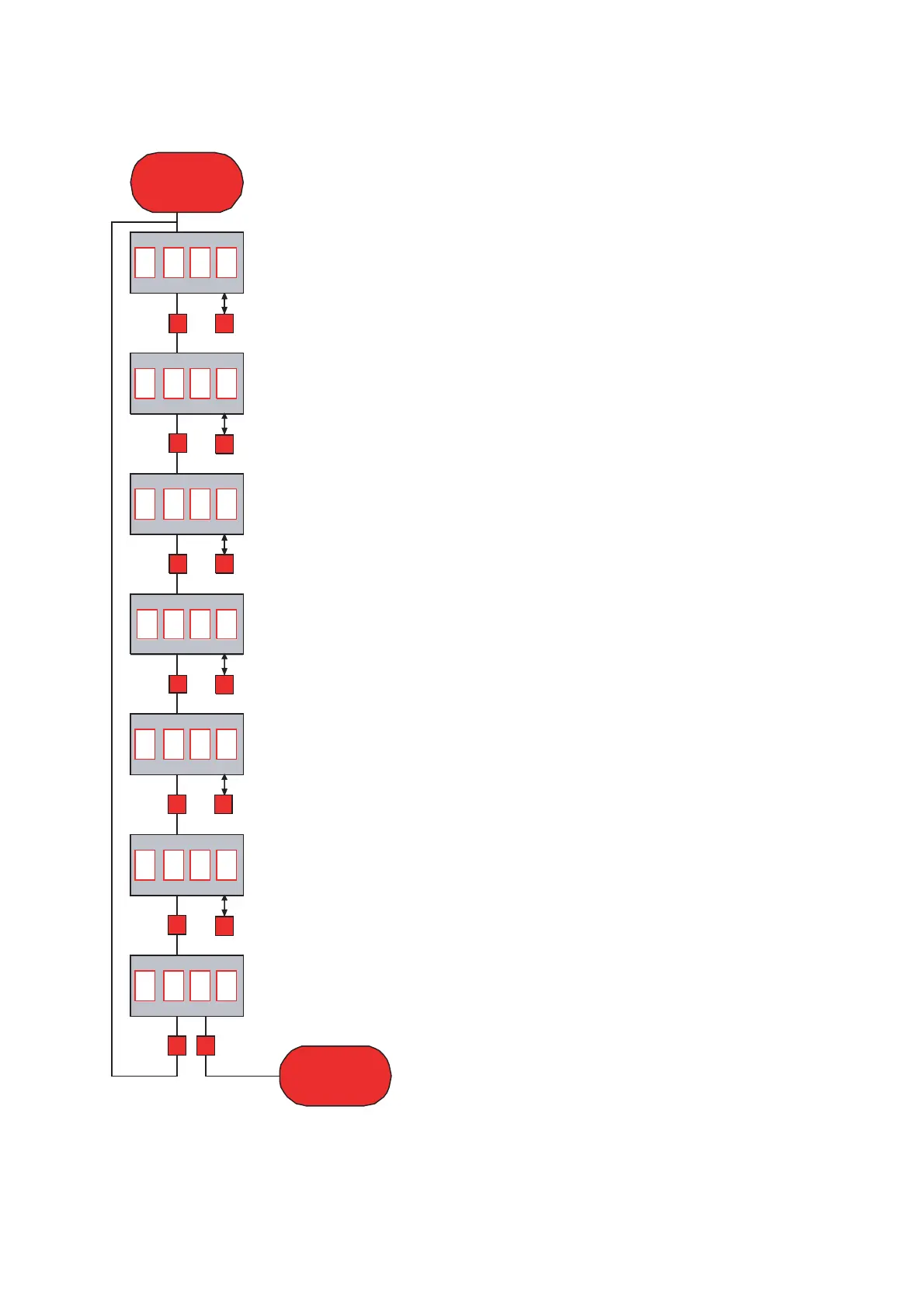

Test output
relays
1 xT
3 xT
H U xT
E R xT
R E TT
F1
F1
F1
F1
F2
F2
F2
Menu
selection
