Dräger RVP 5000 Technical Handbook

24 Dräger RVP 5000
Installation
4 Installation

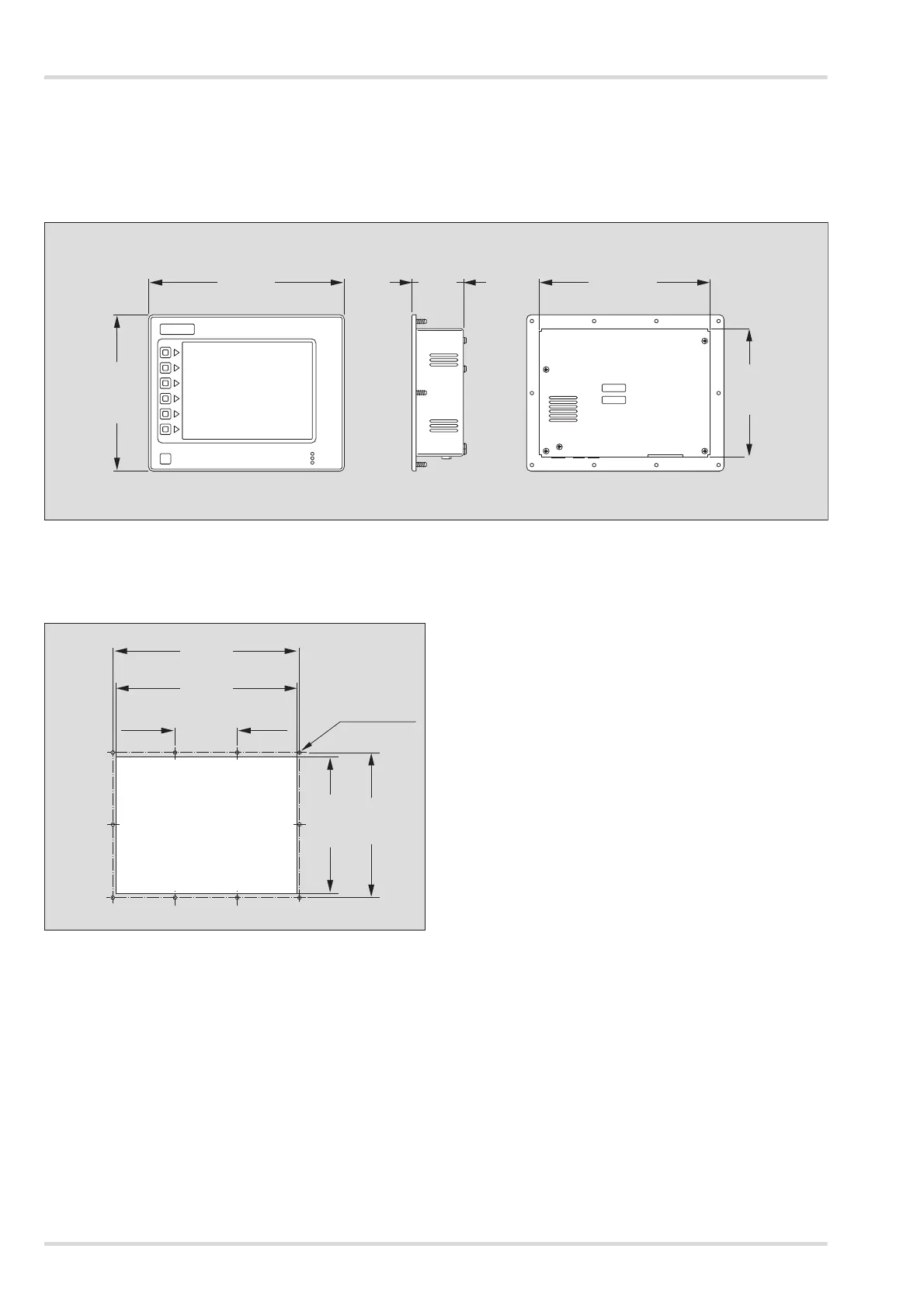

4.1 Mechanical installation
The Dräger RVP 5000 is designed to be installed in a cabinet.
Make cuts and holes in accordance with the installation
dimensions.
z Dimensions in mm (inch)
z All tolerances ±0.25 mm (±0.010")
z Insert and screw in the Dräger RVP 5000
05133194.eps
207,8 mm
(8.18”)
172 mm
(6.77”)
262 mm
(10.32”)
228 mm
(8.96”)
73 mm
(2.9”)
05533194.eps
177,3 mm
(6.98”)
247,7 mm
(9.75”)
10 x Ø4,8 mm
(Ø0.188”)
82,6 mm
(3.25”)
231,5 mm
(9.115”)
193 mm
(7.6”)
